4.10.6 Windows Platform RADIUS Server Configuration
1. Setup the RADIUS server and assign the client IP address to the Managed switch. In this case, field in the default IP
Address of the Managed Switch with 192.168.0.100. And also make sure the shared secret key is as same as the one
you had set at the switch RADIUS server – 12345678 at this case.

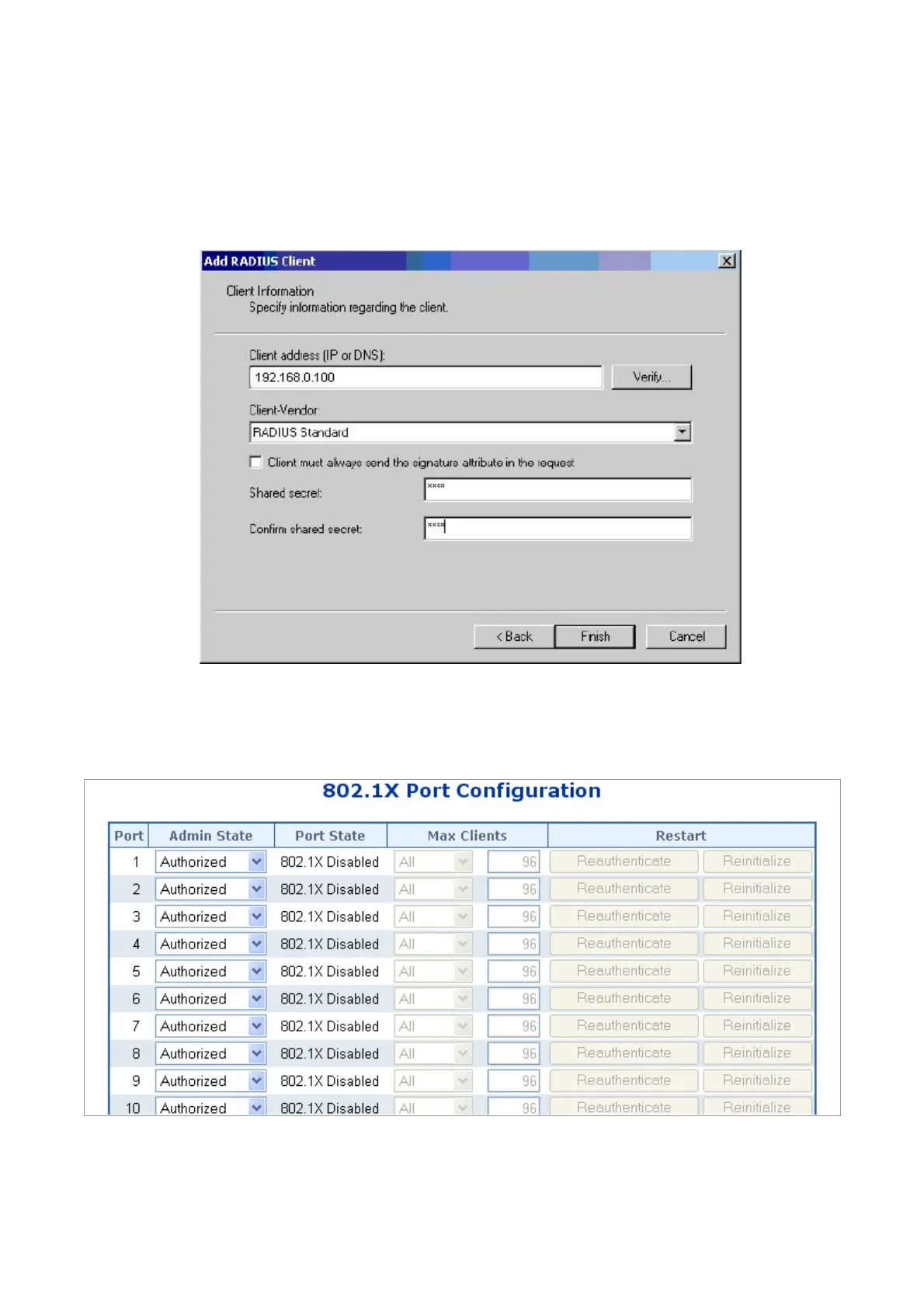

Figure 4-10-7 Windows Server RADIUS Server setting
2. Configure ports attribute of 802.1X, the same as “802.1X Port Configuration”.
Figure 4-10-8 802.1x Port Configuration
3. Create user data. That step are different of “Local Authenticate”, the establishment of the user data needs to be
created on the Radius Server PC. For example, the Radius Server founded on Win2000 Server, and then:
