2.1.1 Panel Layout

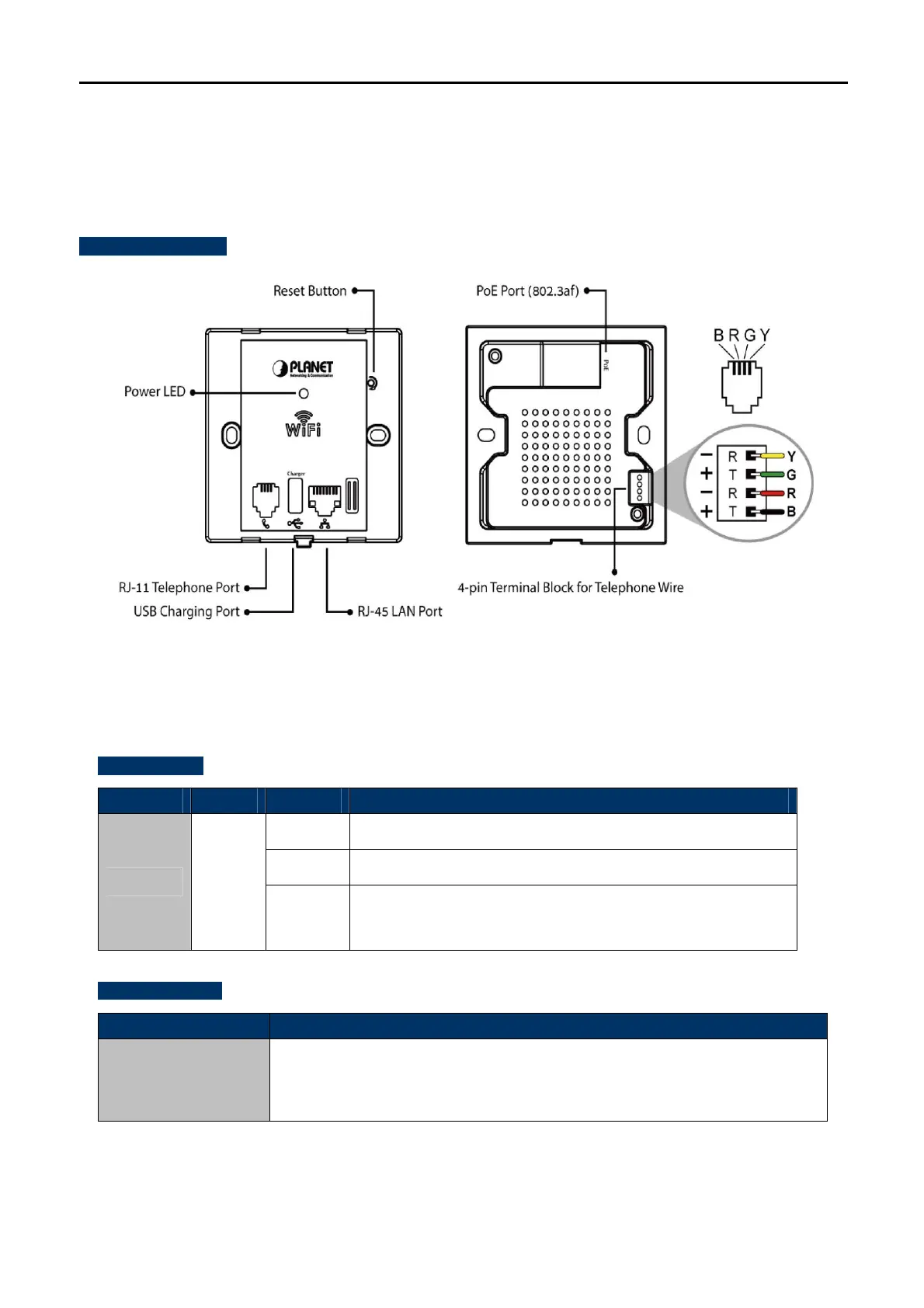

The front and rear panel provide a simple interface monitoring the AP. Figure 2-2 shows the hardware interface
of the WNAP-W2200.
Hardware Interface
Figure 2-2 WNAP-W2200 Panel Layout
2.1.2 Hardware Description
LED definition
Object Description
On Power on
Flashing The system is initializing
PWR
Green
Off
LED enabled: Neither Power nor the device is malfunctioned
LED disabled: the LED control has been turned off
Button definition
Object Description
Reset
Open the front panel to press the Reset button for over 7 seconds and then
release it. The system restores to the factory default settings.
