7.2.1.3 Measurement

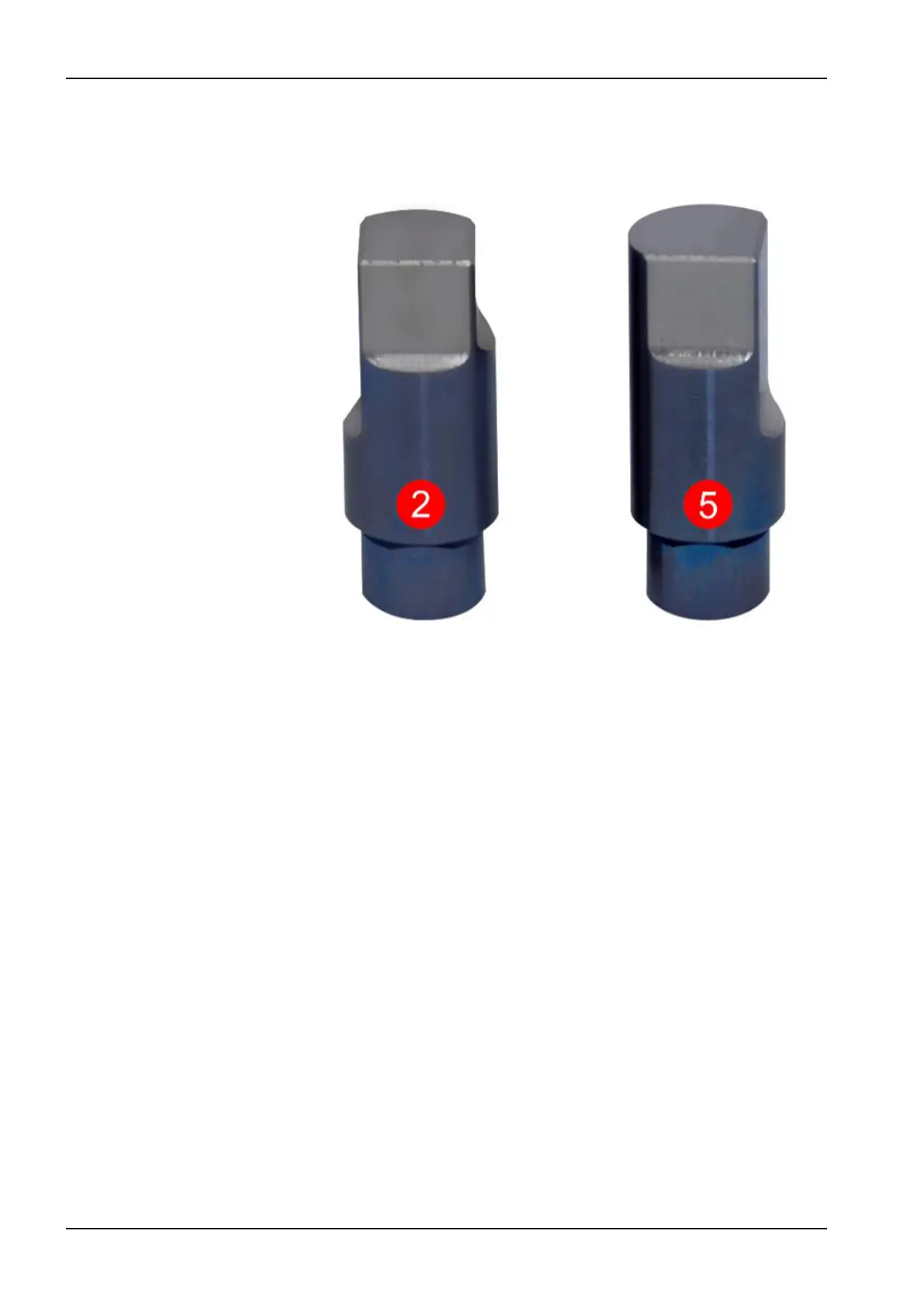

• The two test pins are unscrewed from the adapter
• The test pins have to be clean and free of burrs for measuring
Measurements
• width (X-axis) (1)
• length (Y-axis) (2)
• height (Z-axis) (3)
• width control measurement / only Pos 2 (4)
• customer:
• milling unit type:
• serial number:
7 Adapters
36 Planmeca PlanMill 50 S User's manual
