7.2.2.3 Measurement

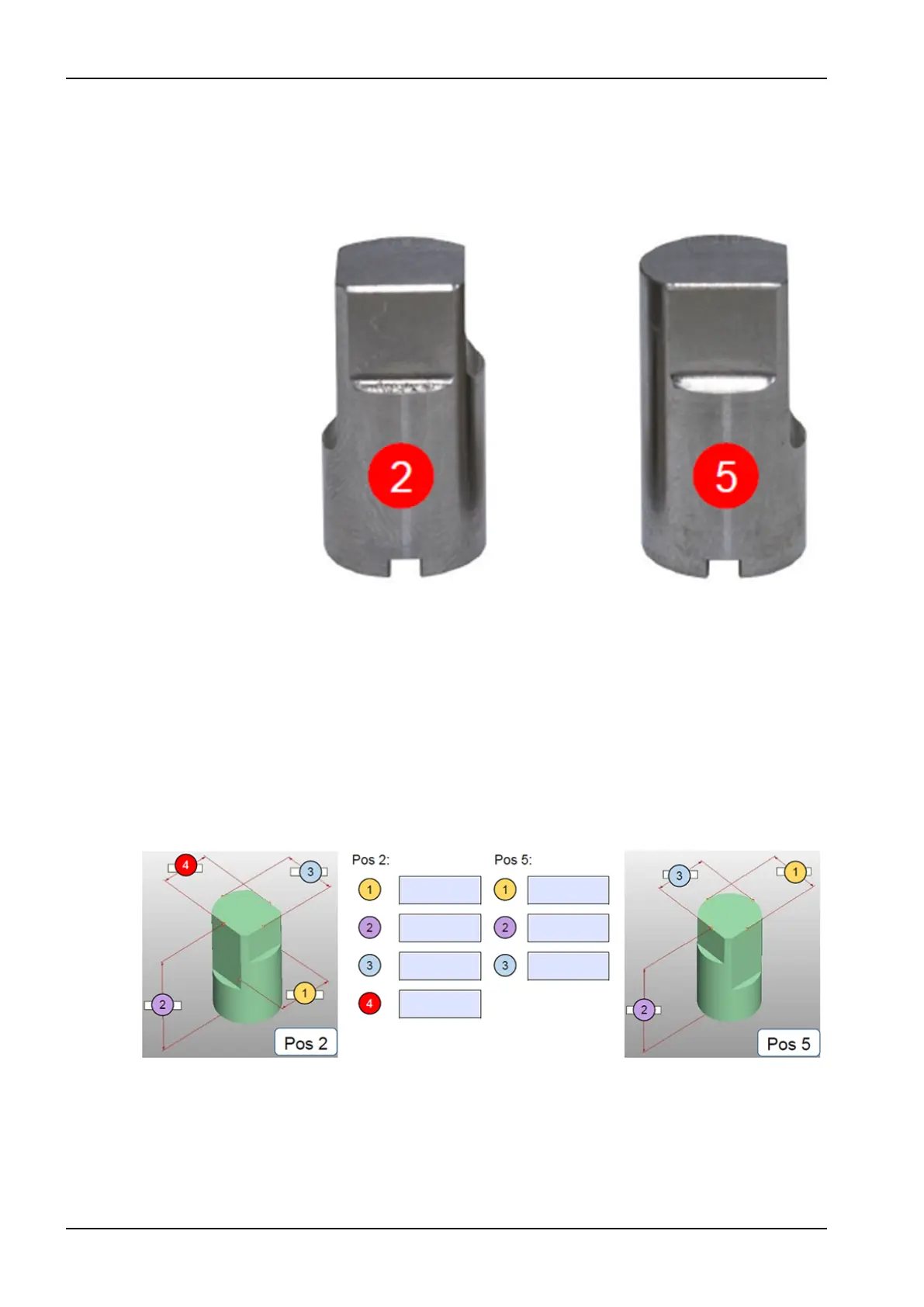

The two test pins are unscrewed from the adapter.
The test pins have to be clean and free of burrs for measuring.
• width (X-axis) (1)
• length (Y-axis) (2)
• height (Z-axis) (3)
• width control measurement / only Pos 2 (4)
• serial number:
• milling unit type:
• customer:
Take the following measurements with a precision of 10 μm and send the
results to your local dealer to be inserted into the offset calculation program.
7.2.2.4 Calculation and data transfer
The offset values for the Planmeca PlanCAM software are determined after
the measurement results are entered into the calculation program.
Please contact the local dealer of your Planmeca PlanCAM software to
implement the offset data.
