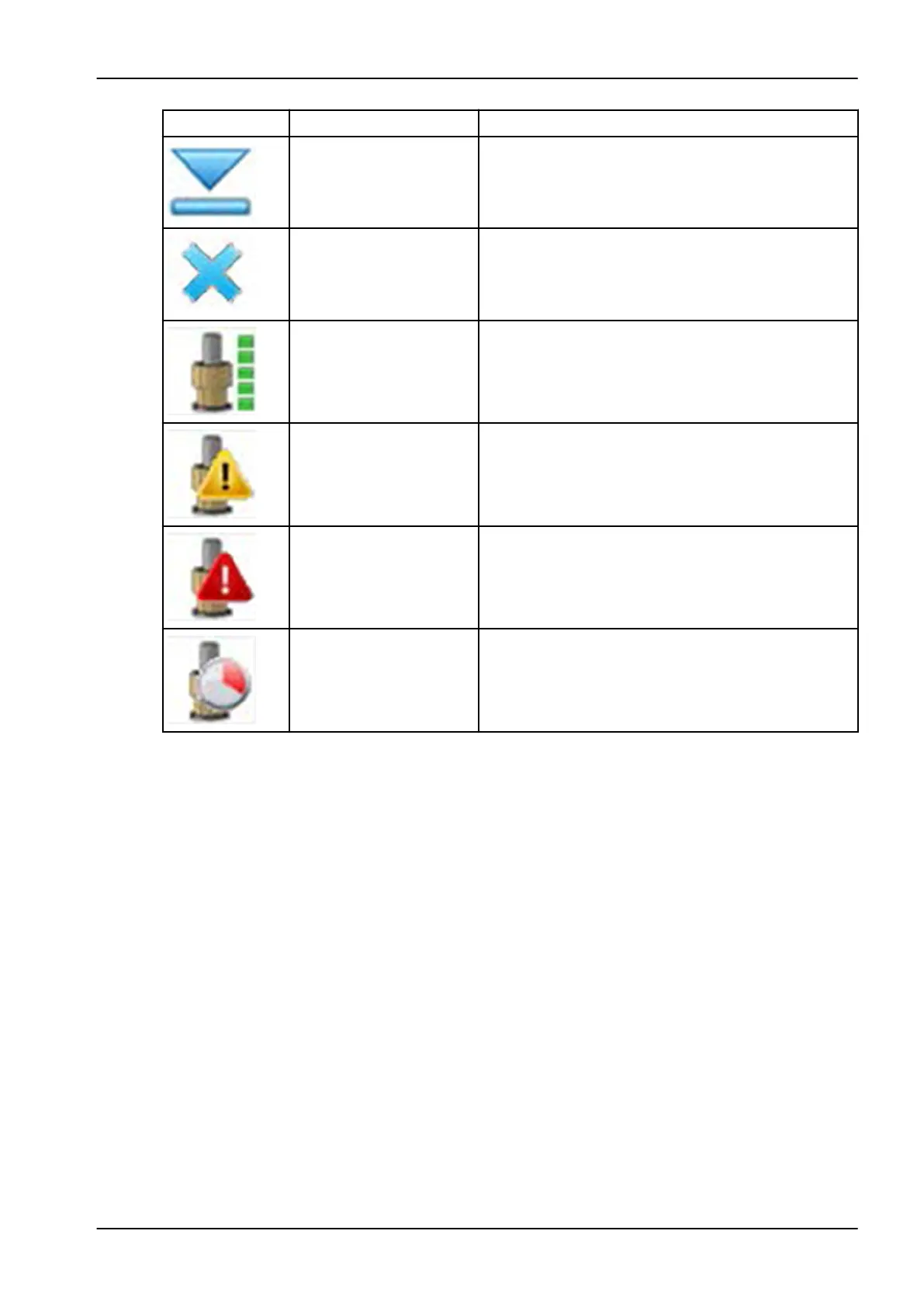

Symbol Designation Description
Navigation arrow (ten
steps down)
For navigating down through the tool list, ten steps at
a time.
Remove For removing the marked tool.
Service time symbol The five green squares next to the symbol show the
service time of the tool and change from green to
yellow and then red after a predefined time.
Attention symbol Signals that the tool must be measured.
Warning symbol Signals that the tool is broken or lies outside the
defined tool length, after measuring.
Tool life elapsed Signals that the tool life has elapsed and it must be
replaced.
9 Control software
User's manual Planmeca PlanMill 50 S 69
