MAINTENANCE
Lubrication

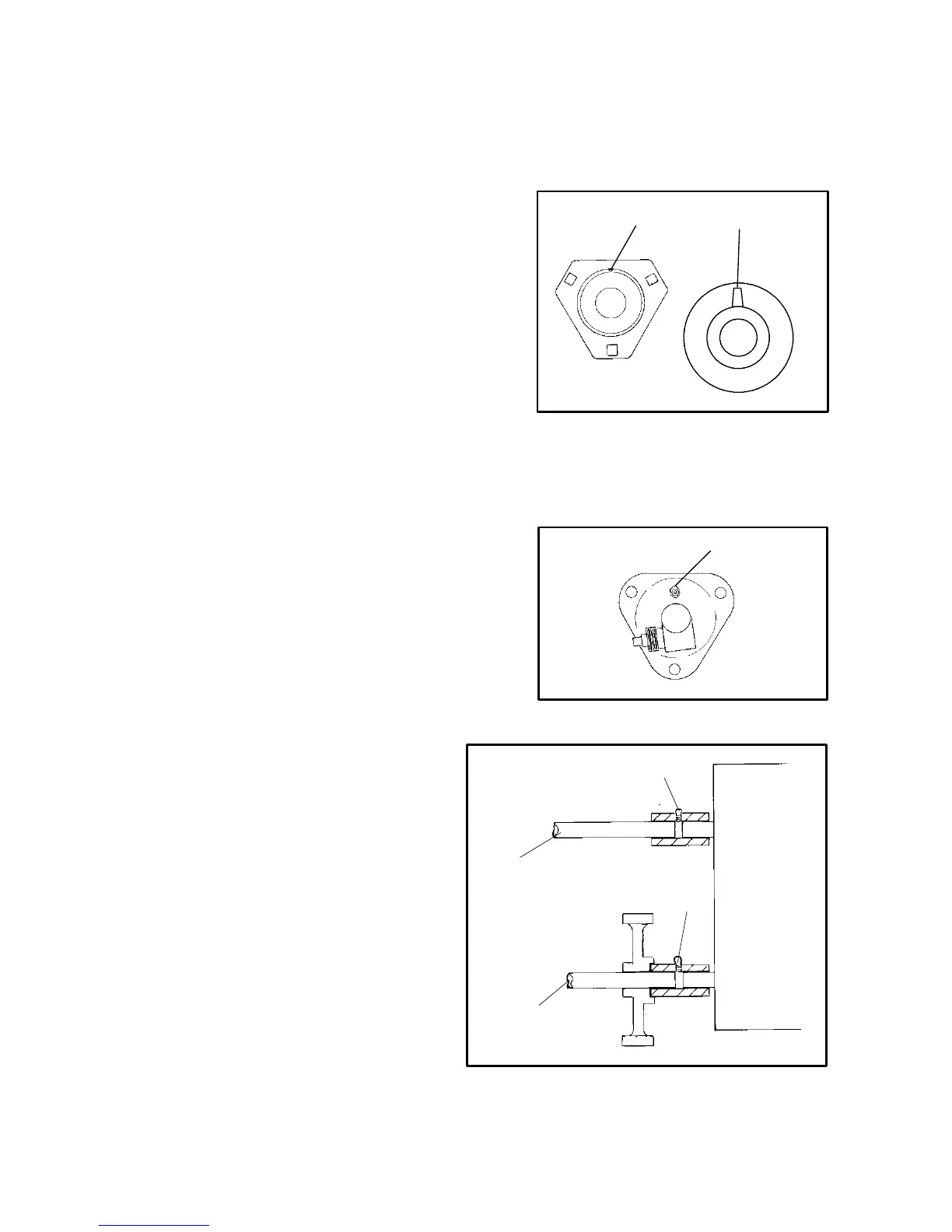

Jackshaft Bearing Greasing
Loosen the driven clutch retaining
bolt and pull the clutch outward to
expose the bearing and grease fitting.
Inject grease into the grease fitting in
the flangette until grease purges from
inside or outside the bearing seal
(may take only two pumps). Push
the clutch back onto the shaft and
replace the clutch retaining bolt.
Torque to 18 ft. lbs. (2.48 kg/m).
Driveshaft Bearing Greasing
Inject grease into the fitting on t he
speedometer drive adaptor until
grease purges from inside or outside
the bearing seal (approximately two
pumps).
Coupler Greasing - WideTrak
Grease the couplers on the
driveshaft and jackshaft.
Grease points are indicated
by a +.
1. Jackshaft
2. Driveshaft
3. Transmission
+
+
+
+
+
1
2
3
