FEATURES AND CONTRO LS

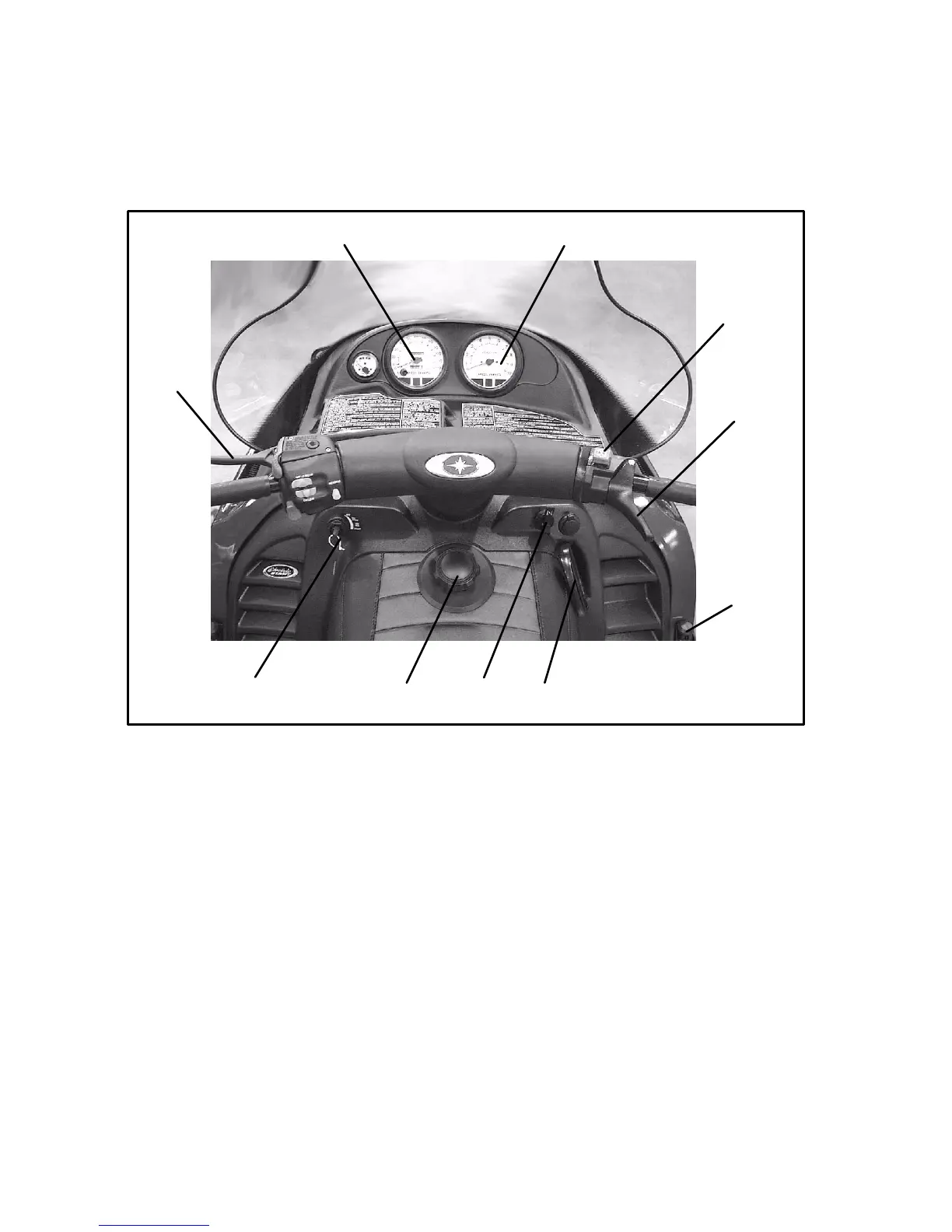

Location of Controls
NOTE: Your machine may not look exactly like t he illustration, but
these controls are found in the same general area on all machines.
1. Fuel Filler Cap (some models have a fuel gauge in the cap)
2. Ignition Switch
3. Brake Lever
4. Speedometer (may include indicator/warning lights)
5. Tachometer (may include indicator/warning lights)
6. Engine Stop Switch (Push/P ull) Operation found on page 86.
7. Throttle Control
8. Hood Hold Down Straps
9. Recoil Starter Handle
10. Choke Control
1
6
7
10
9
2
3
45
8
