Rear Suspension Adjustments
Weight Transfer During Acceleration
Xtra-10 and EDGE Rear Rear Scissor Stop (RRSS)
The preferred method for controlling
weight transfer during acceleration of
the EDGE rear suspension is by
adjusting the rear rear scissor stop
(RRSS). The RRSS is located in the
best overall trail riding position when
delivered from the factory.
To decrease weight transfer under
acceleration (for improved cornering),
rotate the RRSS to a higher position
with the scissor stop tool (1) located in
your tool kit.
To increase weight transfer or ski lift
during acceleration, move the RRSS to
the rearward hole on high position. The
RRSS may also be rotated to a lower
position for even more weight transfer
if desired.

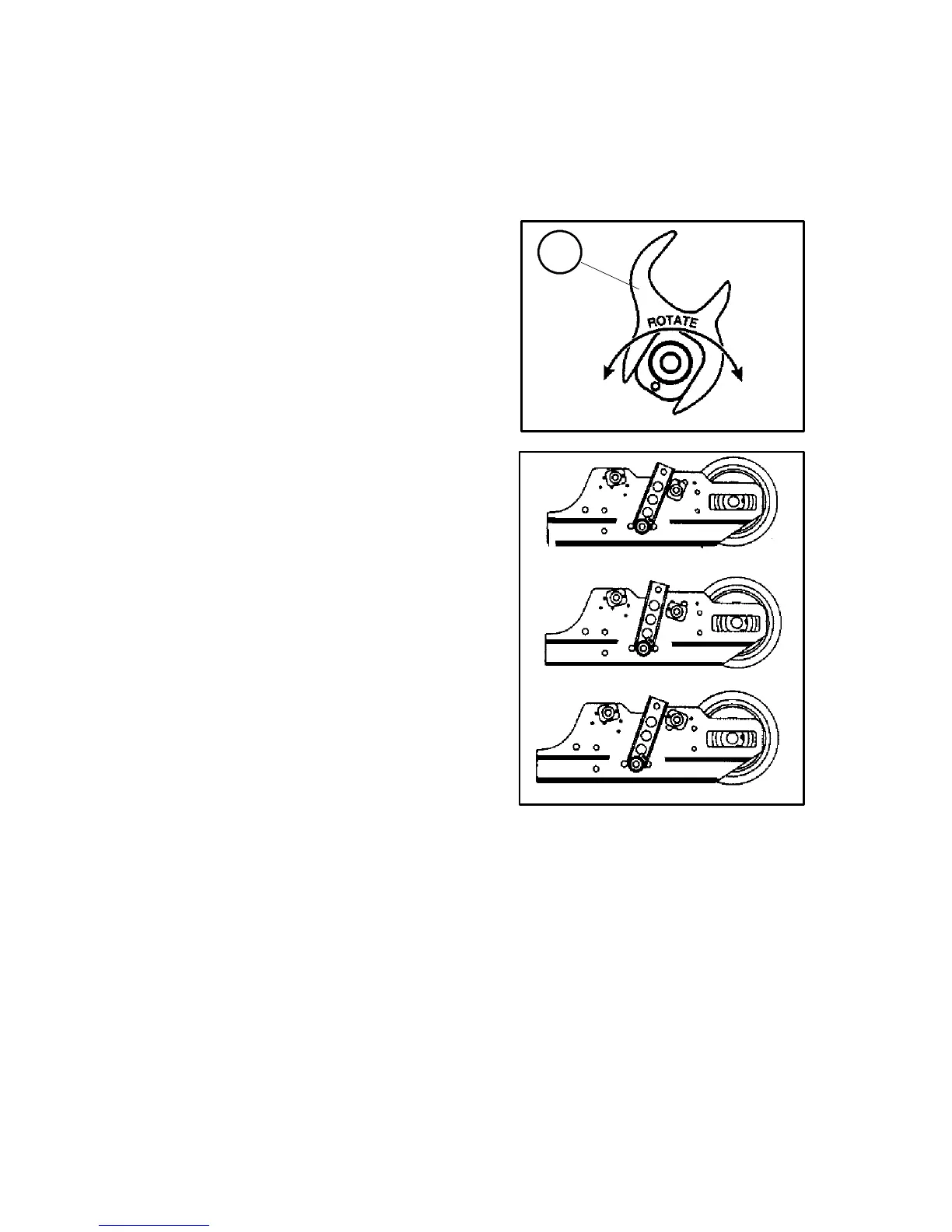

A - Stock Position - This setting is
most desirable for trail riding.
B - Medium or High Position (standard
hole location) - This setting will
decrease weight transfer.
C - Rearward Upper Position (optional
hole location - This setting will
increase weight transfer.
NOTE: Your dealer can help you with initial set-up and additional
set-up instructions to help you achieve your optimum ride.
Xtra-12 Rear Rear Scissor Stop (RRSS)
The RRSS on Xtra-12 suspensions is not adjustable.
1
A
B
C
