Rear Suspension Adjustments
Rear Spring Tension
To adjust rear torsion spring tension, rotate the three-position cam
using the engine spark plug tool.
Different rate torsion springs are available if a firmer ride is desired.
Contact your dealer for more i nformation.
The following information is provided only as a guideline to be used
for initial suspension set-up. Your set-up may vary based on your
desired riding style.

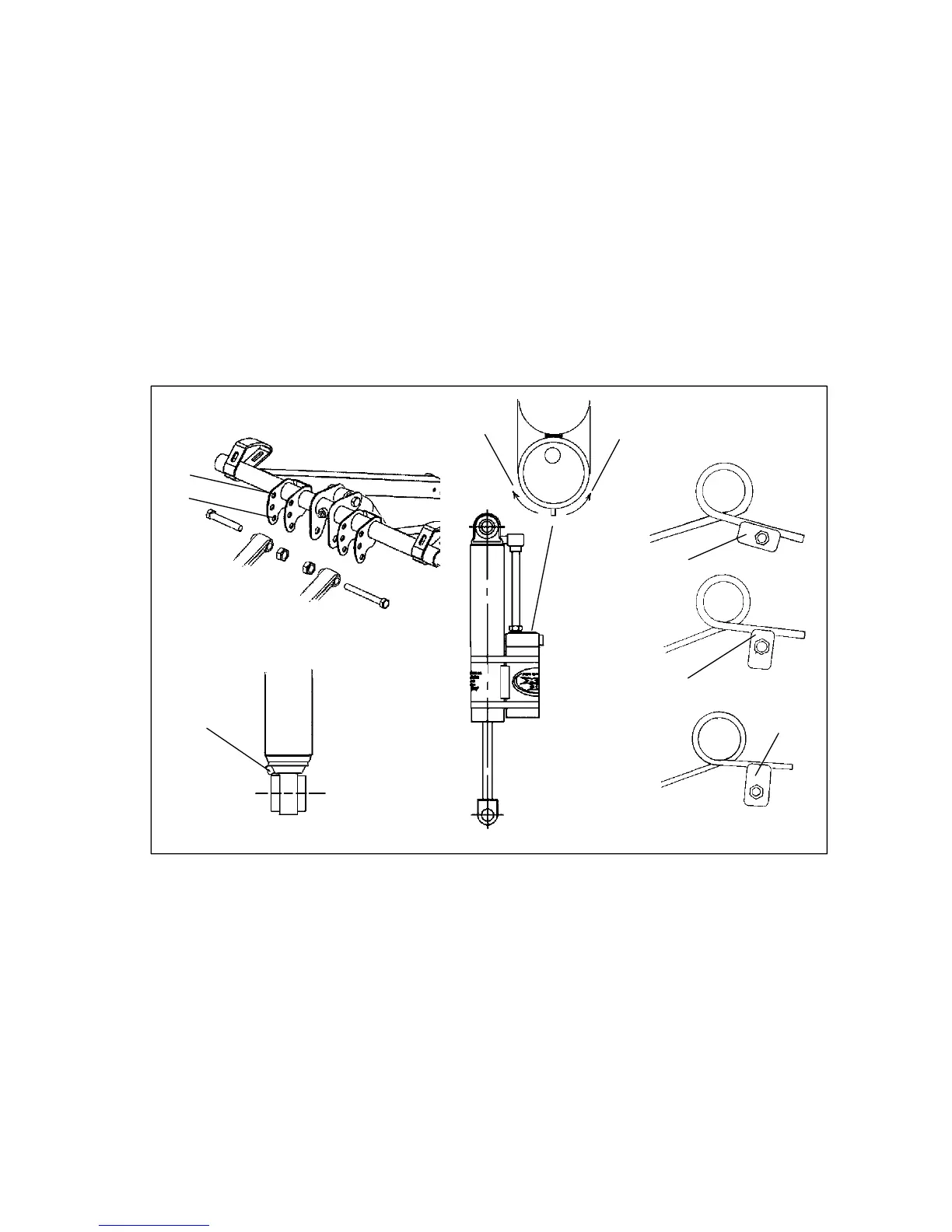

1 - Turn screw clockwise to stiffen compression
2a - Limiter strap in high position increases ski pressure
2b - Limiter strap in low position decreases ski pressure
3a - Turn t he knob to the left for a softer ride
3b - Turn the knob to the right for a stiffer ride
4a - Soft Tension - long end of cam to front
4b - Medium tension - short end of cam up
4c - Firm tension - long end of cam up
4b
4a
4c
1
3a
3b
2a
2b
