MAINTENANCE
General Maintenance
Headlight Adjustment
The headlight may be adjusted for
vertical aim using the following
procedure:
1 Place the snowmobile on a
level surface with the headlight
approximately 25 feet (7.6m)
from a wall.
2 Measure the distance from the
floor to the center of the
headlight and make a mark on
the wall.
3 Start the engine and turn the
headlight switch to high beam.
4 Observe the headlight aim.
The most intense part of the
headlight beam should be
aimed 2″ (5.1 cm) below the
mark placed on the wall in
Step 2. NOTE: Rider weight
must be included on t he seat.
5 Turn the adjustment nut (A),
located inside the hood, just
below the headlamp opening.
Turn the knob in or out as
needed for proper aim.

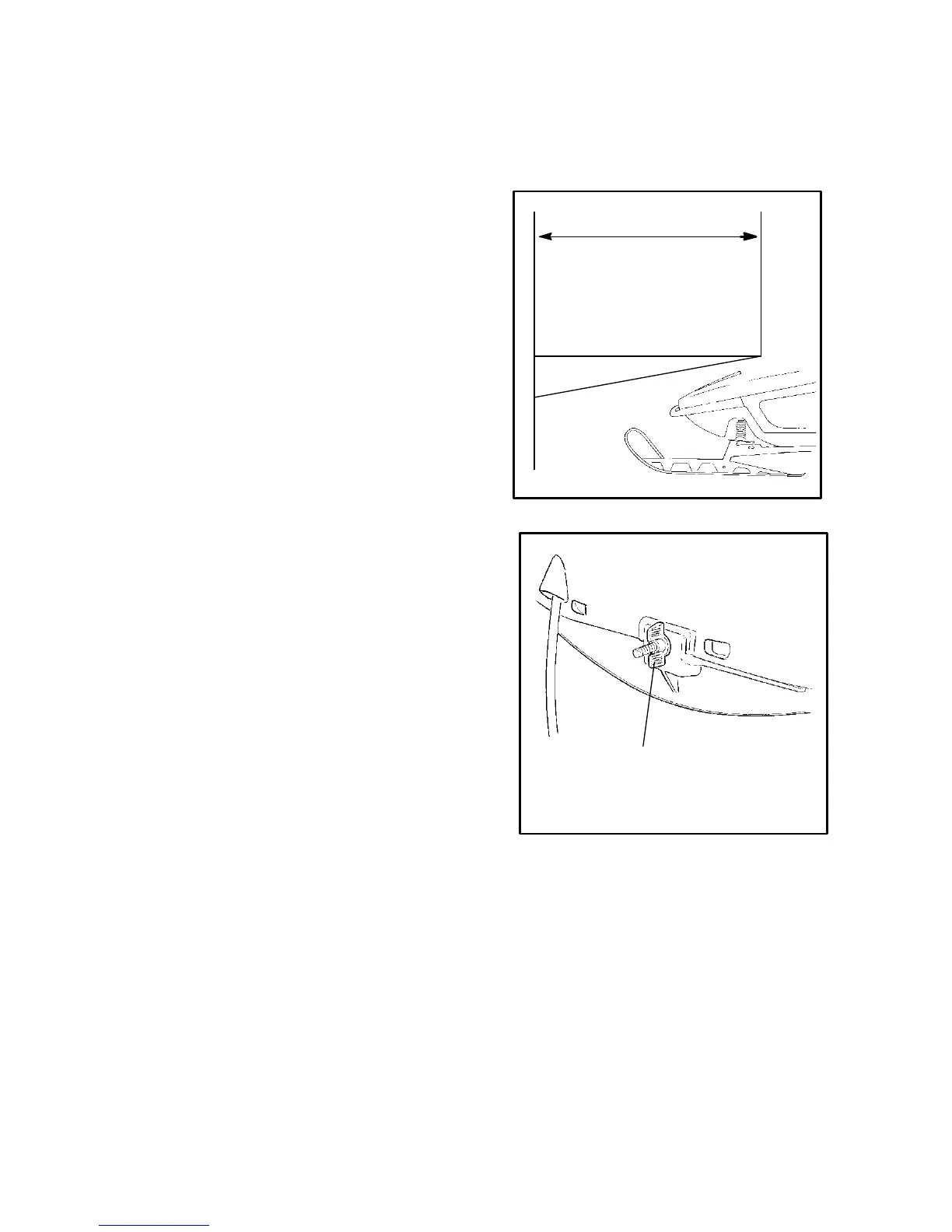

25’ (7.6 m)
Lamp Center
Height
2″ (5.1 cm)
A
