Polaris 800 RMK ASSAULT 2011

3.32
Engine/Cooling/Exhaust

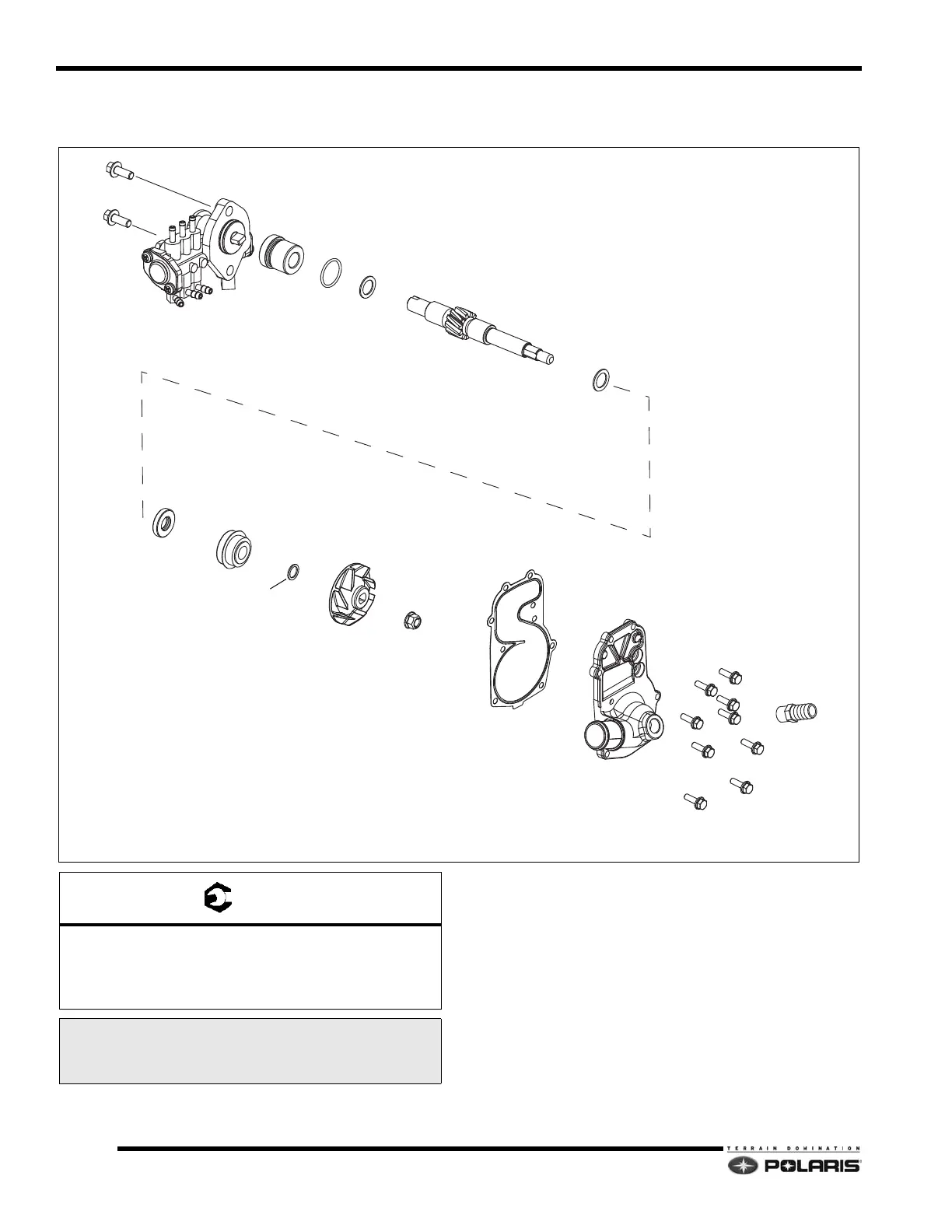

600/800 DC-CFI Water and Oil Pump
Assembly
OIL PUMP
BEARING
CROSS SHAFT
WASHER
WASHER
O-RING
SEAL
MECHANICAL SEAL
WASHER
IMPELLER
NUT
WASTER PUMP COVER GASKET
WASTER PUMP COVER
B
A
C
A
= T
A: 9 ft-lbs (12 Nm)
B: 9 ft-lbs (12 Nm)
C: 18 ft-lbs (Nm) Apply pipe sealant.
Oil Pump Bleed Screw: 2.2 ft-lbs (3 Nm)
Water / Oil Pump Crossshaft Axial End Play
.009" - .027" (0.254 - 0.708 mm)
