3.28
Engine/Cooling/Exhaust

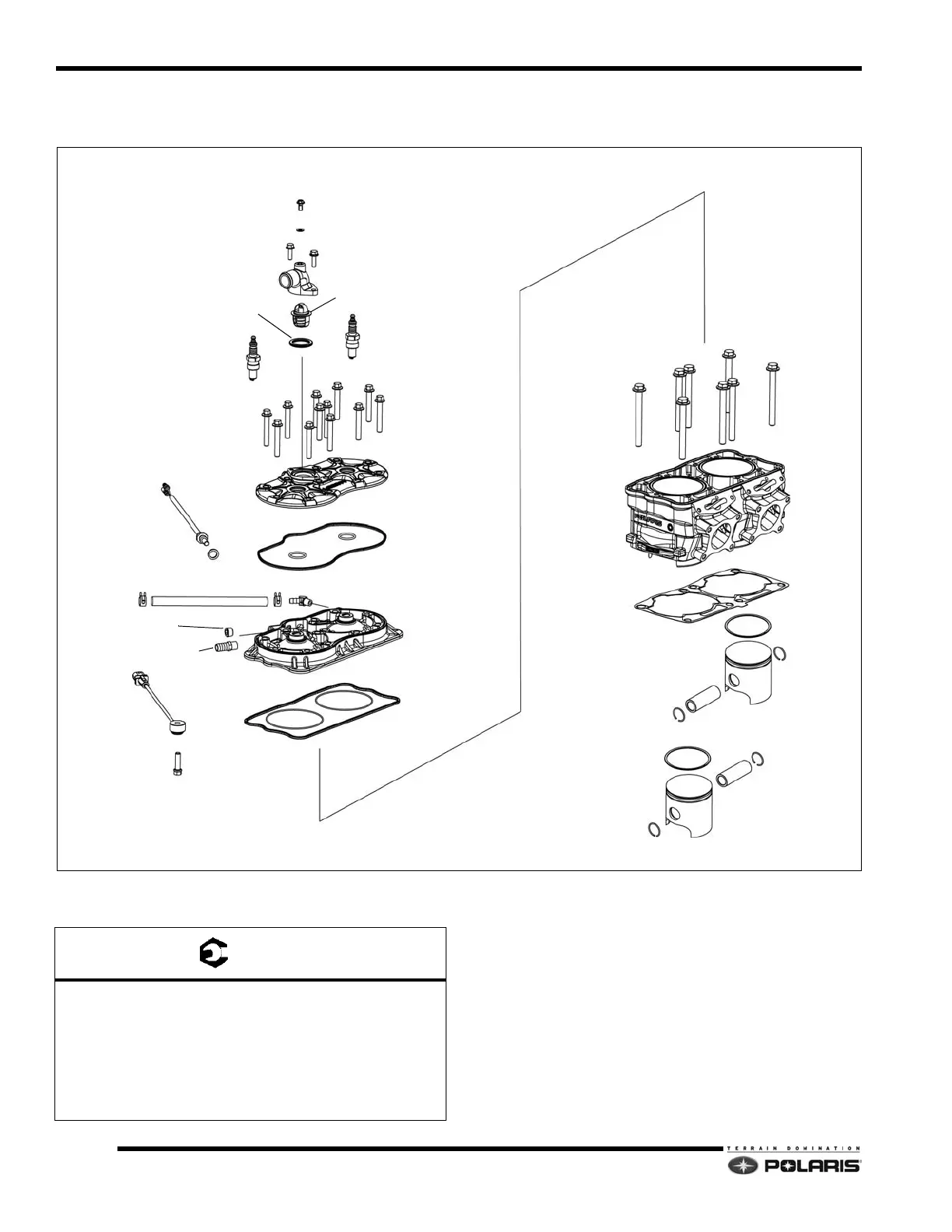

800 DC-CFI-2 Cylinder Head/Cylinder/
Pistons
BLEED SCREW
THERMOSTAT COVER
THERMOSTAT
SPARK PLUGS
GASKET
HEAD COVER
TEMP. SENSOR
THROTTLE BODY HOSE
PLUG*
BYPASS NOZZLE*
KNOCK SENSOR
PISTON
C-CLIP
PISTON RINGS
PISTON PIN
BASE GASKET
CYLINDER
CYLINDER HEAD
O-RINGS
* = SEE PLUG / BYPASS MATRIX
O-RINGS
A
B
D
E
F
A: 70 in-lbs (8 Nm)
B: 9 ft-lbs (12 Nm) - Apply Loctite® 242™
C: 25 ft-lbs (34 Nm) - Apply Loctite® 242™
D: 18 ft-lbs (24 Nm) - Apply Pipe Sealant
E: 168 in-lbs (19 Nm) - Clean and Dry
(DO NOT OVER/UNDER TORQUE SCREW.)
F: 42 ft-lbs (57 Nm)
