Chassis
9
Footrest Supports / Clutch Guard - INDY Models
= T
A: 7 ft-lbs (9.5 Nm)
B: 25 ft-lbs (35 Nm)
CAUTION
Front and rear over structure assemblies feature bonded
components. Do not attempt to service over structure
tubes.

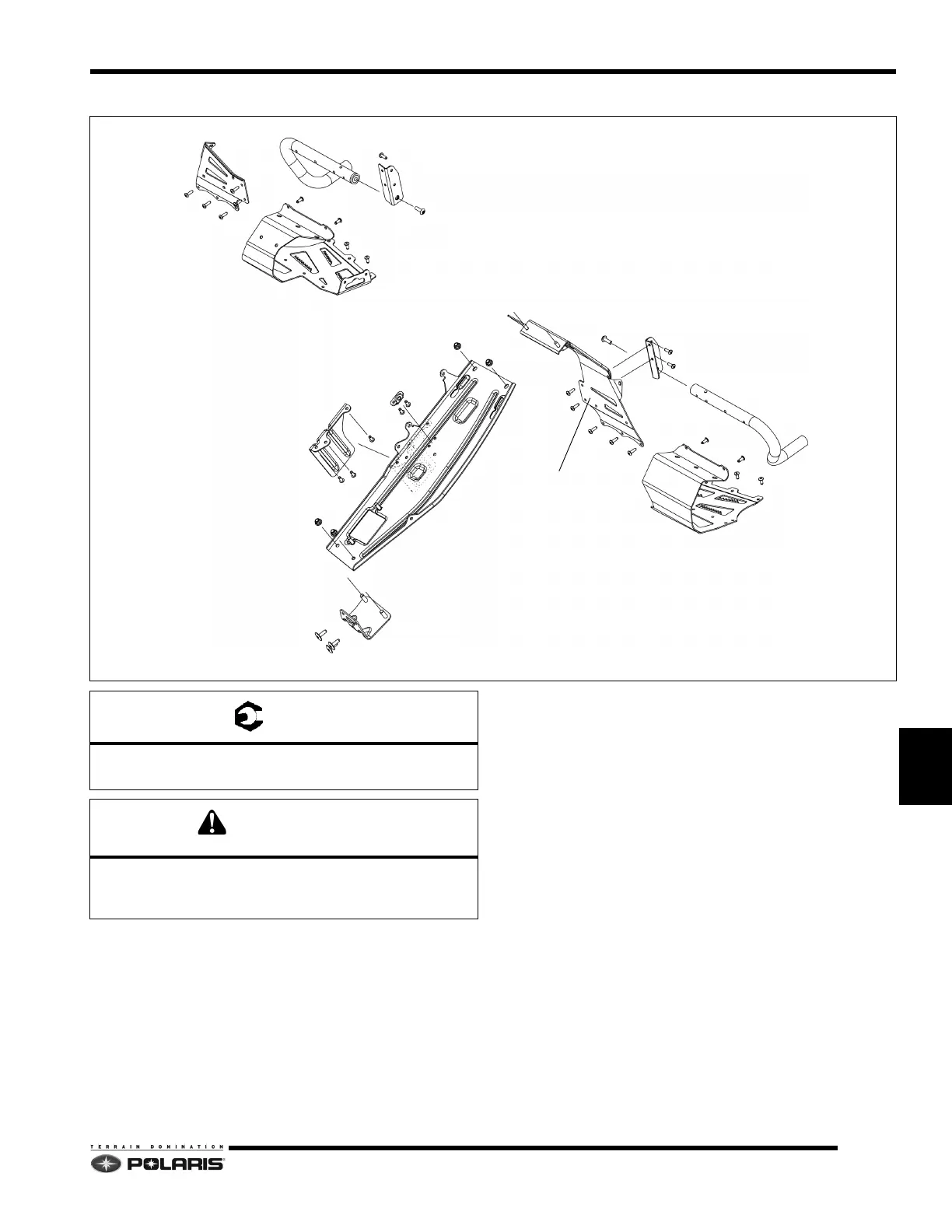

TUBE SPACER
FOOTREST TUBE
FOOTREST BRACKET
CLUTCH GUARD BRACKET
TPS GUARD
FOOTREST
FOOTREST
A
B
A
FOOTREST TUBE
FOOTREST BRACKET
UPPER FOOTREST
CLUTCH GUARD
B
