2.25
Maintenance
2
CHASSIS

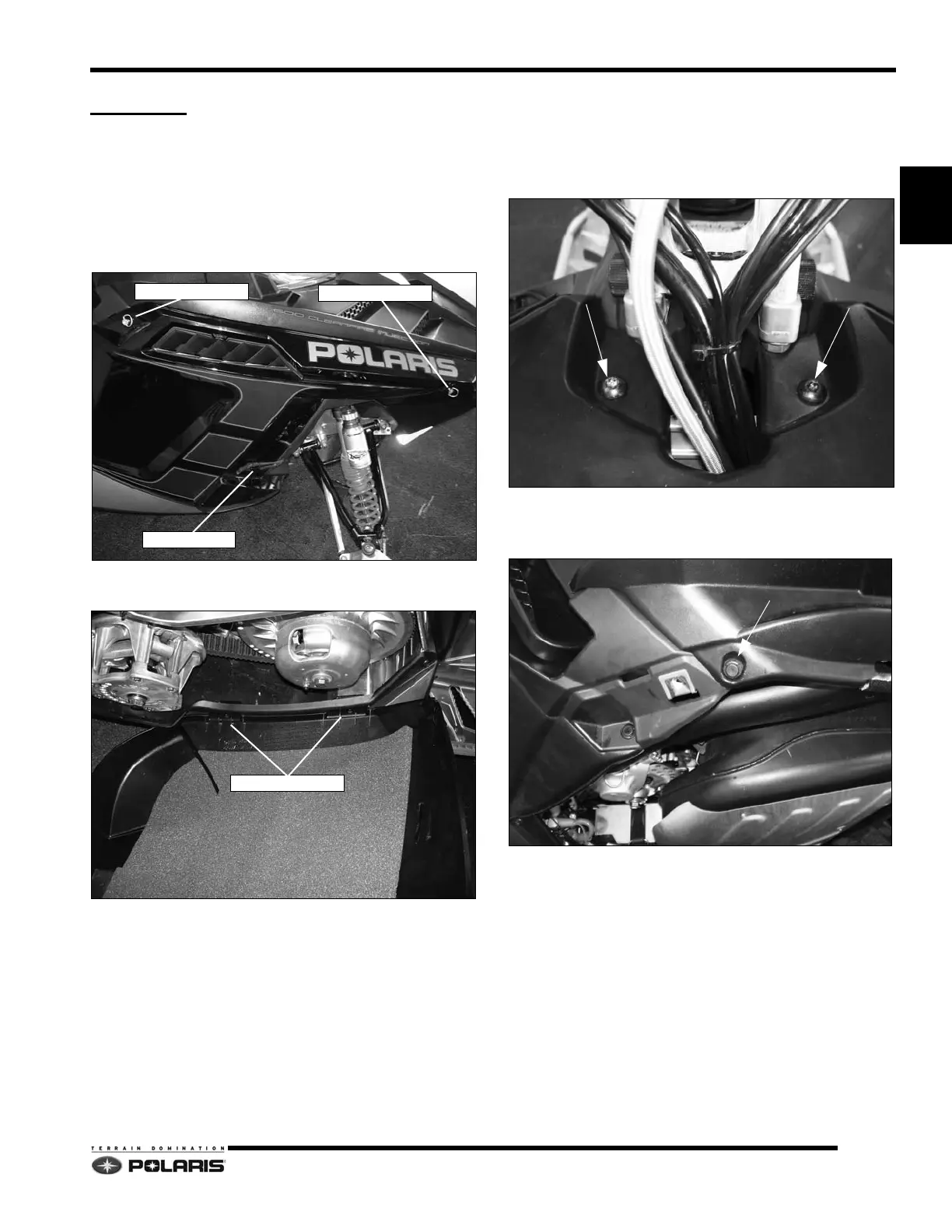

Door/Hood Removal and Installation
To remove the door panels, follow these steps:
1. Turn the two 1/4 turn fasteners counter-clockwise.
2. Un-hook the rubber strap. Carefully pull the door(s)
awa
y from the hood/chassis.
3. Pull up on the door to disengage the locking tabs at
th
e bottom of each door.
To remove the hood, follow these steps:
1. Remove both door panels.
2. Using a T40 Torx driver, remove the two screws
se
curing the hood to the steering post.
3. Using a flat blade screwdriver, remove the left and
r
ight side nylon rivets securing the hood to the
console.
4. Disconnect the hood wiring harness from the chassis
h
arness. On 2010-2012 models, note the routing of
the harness under the over structure tube. The hood
harness connector on 2013 models is located on the
right side of the handlebar over structure and
accessed from the right-side engine compartment
door.
5. Lift the back of the hood up making sure the brake duct
cle
ars the console. Push the hood forward to
disengage the nose tabs from the nose cone.
6. Remove the hood from the vehicle.
RUBBER STRAP
1/4 TURN FASTENER
1/4 TURN FASTENER
