Polaris 800 RMK ASSAULT 2011

3.47
Engine/Cooling/Exhaust
3

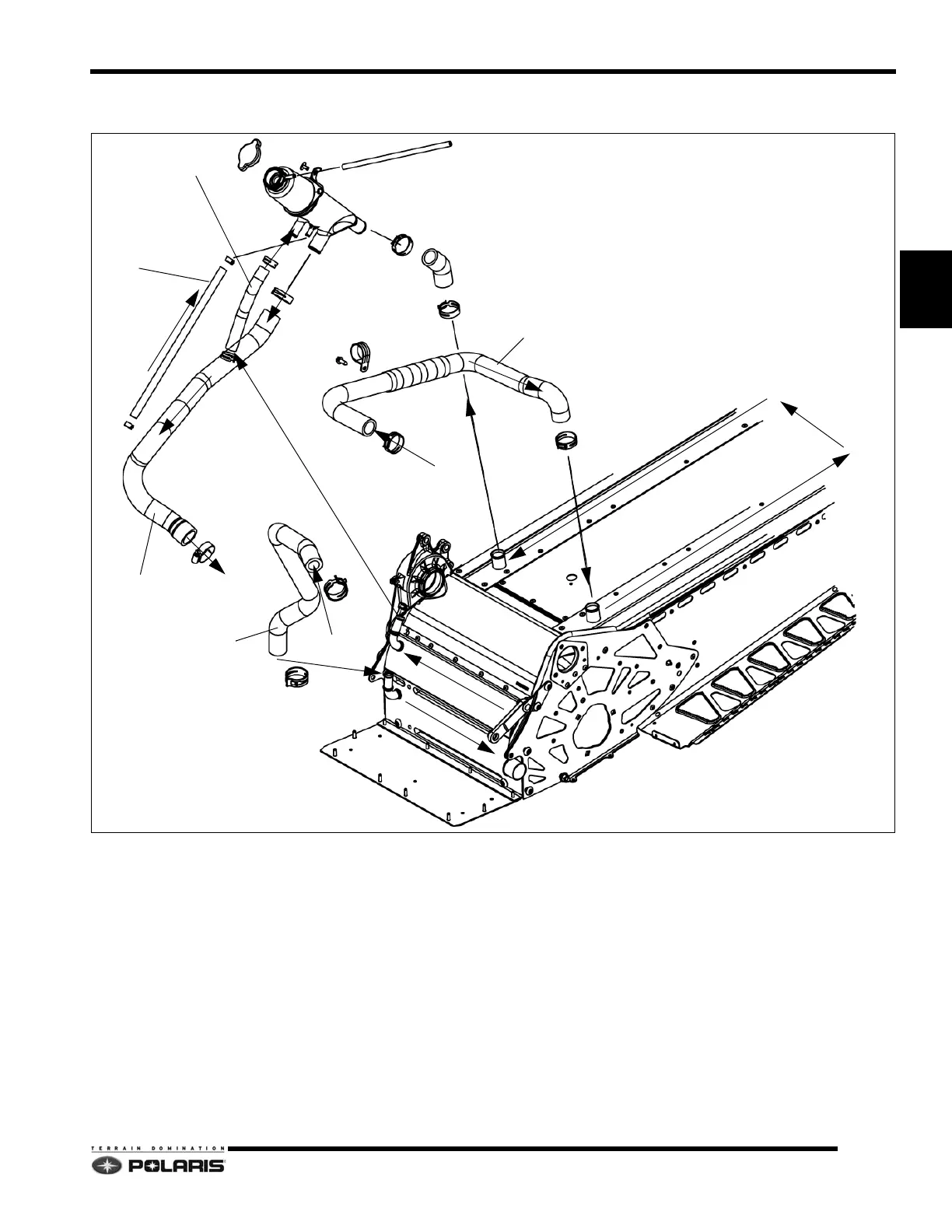

Switchback Assault/Base RMK Cooling System
NOTE: Front tunnel cooler circuit always active. Rear tunnel coolers only active when thermostat is open.

Models feature 3.5mm thermostat bleed hole.

Thermostat opening temperature is 120° F (49° C).
REAR TUNNEL COOLER
SURGE BOTTLE
HOSE (FRONT COOLER
HOSE (THROTTLE BODY
HOSE (SURGE TANK-TO-WATER PUMP)
TO-SURGE TANK)
-TO-SURGE TANK)
HOSE (SURGE TANK
-TO-WATER PUMP)
HOSE (THERMOSTAT OUTLET-TO REAR COOLERS)
HOSE (HEAD BYPASS-TO
FRONT TUNNEL COOLER)
