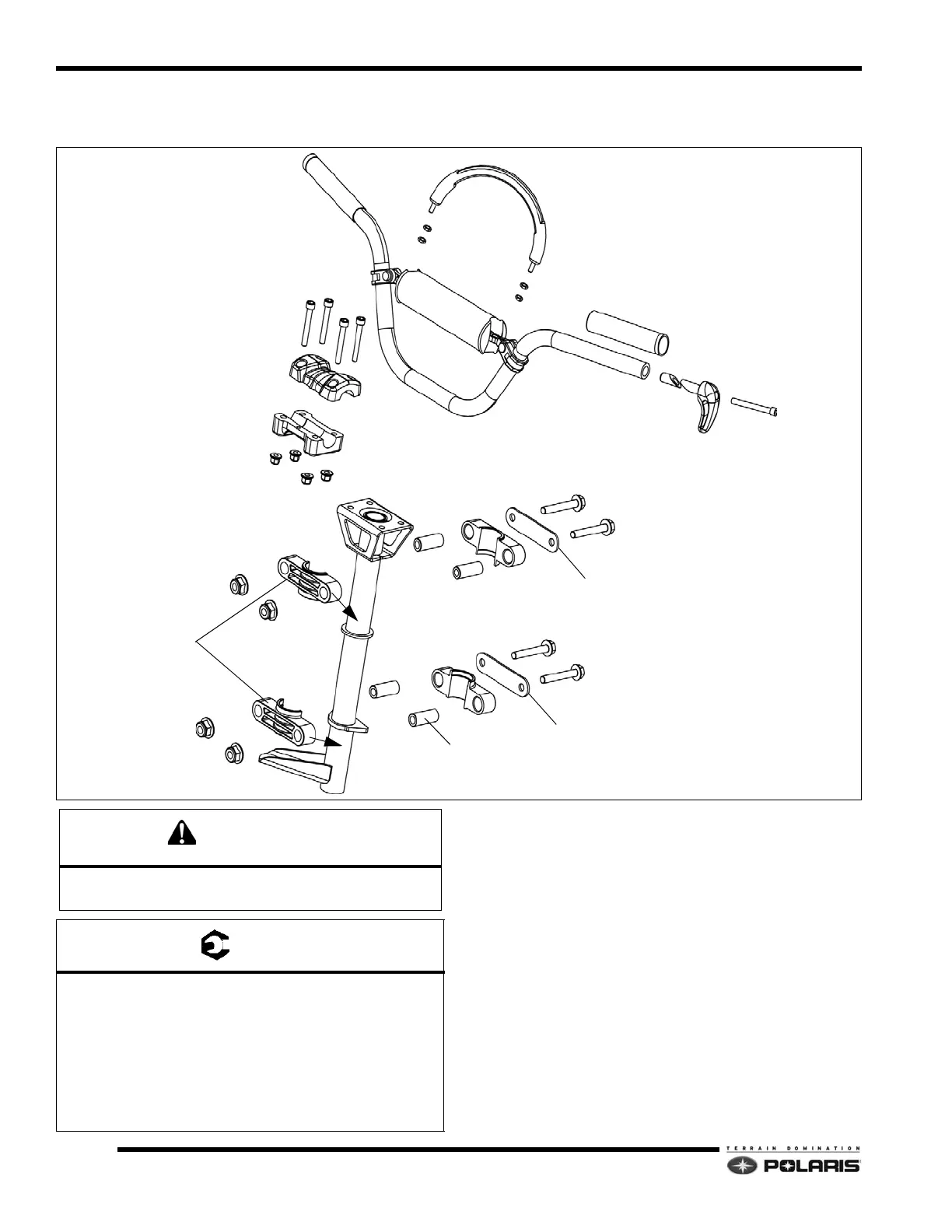

8.24
Steering and Suspensions
600/800 PRO RMK/RMK Assault Upper
Steering Assembly
STEERING POST
HANDLEBAR CLAMPS
HANDLEBAR HOOK
CLAMP BUSHINGS
A
B
MOUNTAIN BAR
BUSHING SPACERS
STEERING STRAP
C
C
D
D
STEERING STRAP
CAUTION
Never re-use lock nuts. Always re-assemble using new
lock nuts.
= T
A: 14.7 ft-lbs (20 Nm)
B: 12 ft-lbs (16 Nm)
C: 5 ft-lbs (7 Nm)
D: 18 ft-lbs (25 Nm)
Throttle Lever Block Screw: 35 in-lbs (4 Nm)
Master Cylinder Clamp: 60-80 in-lbs (6.8-9 Nm)
DO NOT CRUSH HANDLEBAR WHEN TORQUING
S
CREWS.
