Polaris 800 RMK ASSAULT 2011

4.29
Cleanfire Fuel Injection
4
2011-2013 RUSH/Switchback Fuel Tank/
Pump Assembly
SERVICE PARTS:
• 2010-2012 Fuel Pump Assembly - (600) 2520951
(800) 2521107
• 2013 Fuel Pump Assembly - (600/800) 2204726
• 2010-2012 Pickup/Sock Assembly (w/clamps and
ca
ble ties) - 2204376
• 2013 Pickup/Sock Assembly (w/clamps and cable
tie
s - 2204607
• PFA Gasket - 5413063

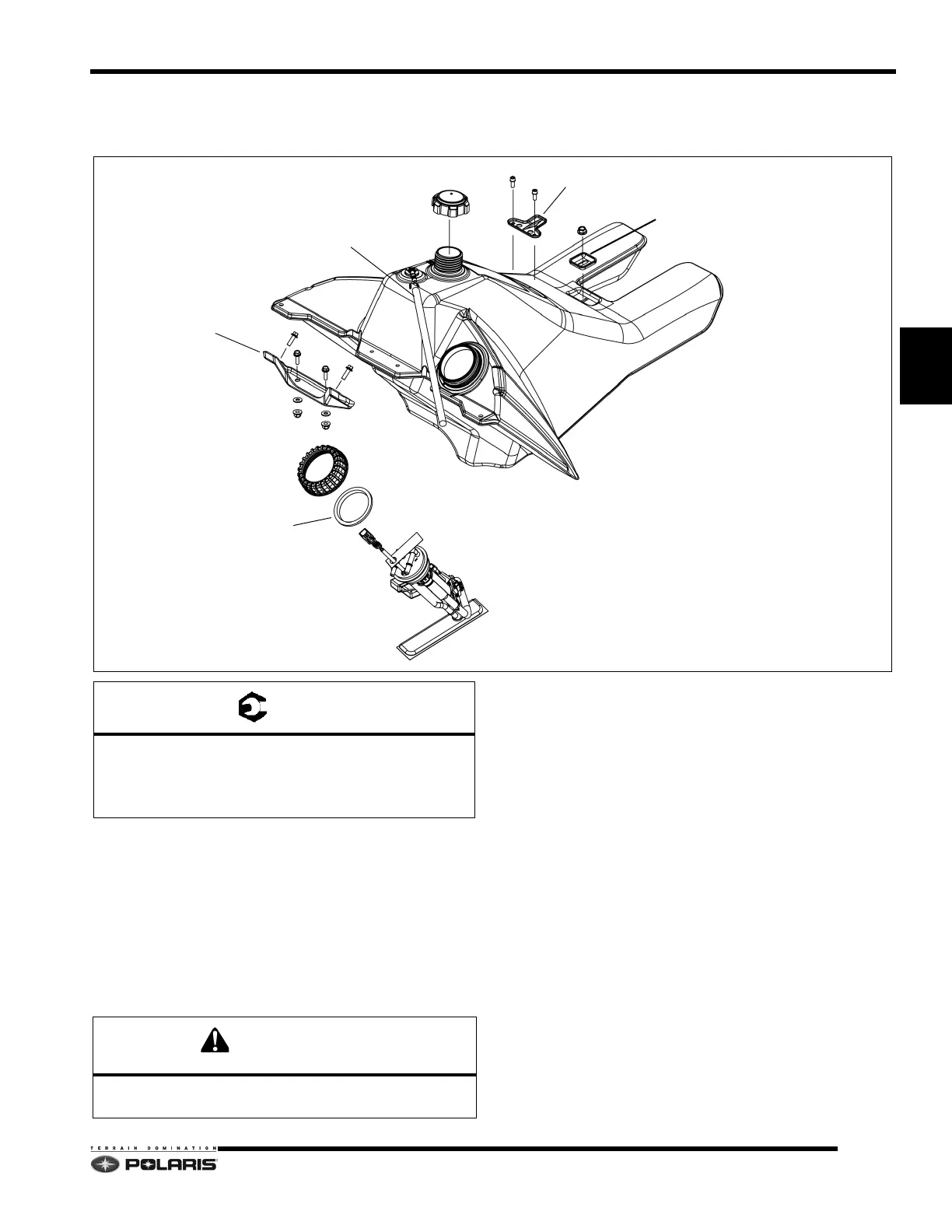

FUEL TANK
A
PFA GASKET
PFA NUT
CAP
VENT/VAC HOSE
SEAT MOUNT BRACKET
FUEL TANK BRACKET
PUMP ASSEMBLY
C
D
D
D
B
WASHER
= T
A: 10 ft-lbs (14 Nm)
B: 6 ft-lbs (8 Nm)
C: 28 ft-lbs (38 Nm)
D: 7 ft-lbs (10 Nm)
CAUTION
ALWAYS REPLACE PFA GASKET WITH NEW
GASKET AFTER REMOVING FUEL PUMP.
