Steering and Suspensions

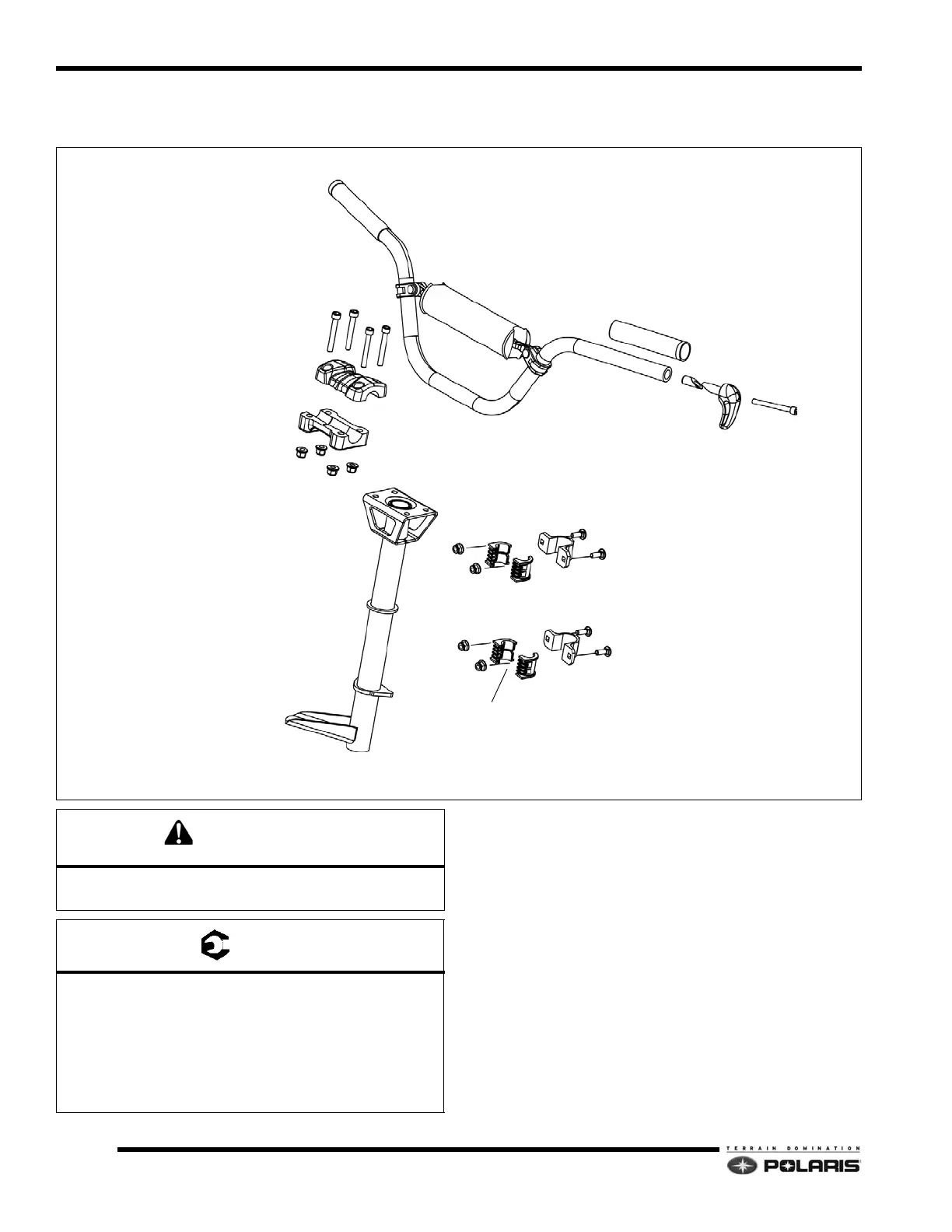

Switchback Assault Upper Steering
Assembly
HANDLEBAR CLAMPS
POST CLAMPS
STEERING POST
HANDLEBAR HOOK
CLAMP BUSHINGS
C
C
A
B
APPLY GREASE TO BUSHINGS PRIOR TO ASSEMBLY
CAUTION
Never re-use lock nuts. Always re-assemble using new
lock nuts.
= T
A: 14.7 ft-lbs (20 Nm)
B: 12 ft-lbs (16 Nm)
C: 20 ft-lbs (27 Nm)
Throttle Lever Block Screw: 35 in-lbs (4 Nm)
Master Cylinder Clamp: 60-80 in-lbs (6.8-9 Nm)
DO NOT CRUSH HANDLEBAR WHEN TORQUING
