8.21
Steering and Suspensions
8
2012-2013 INDY Rush/Switchback

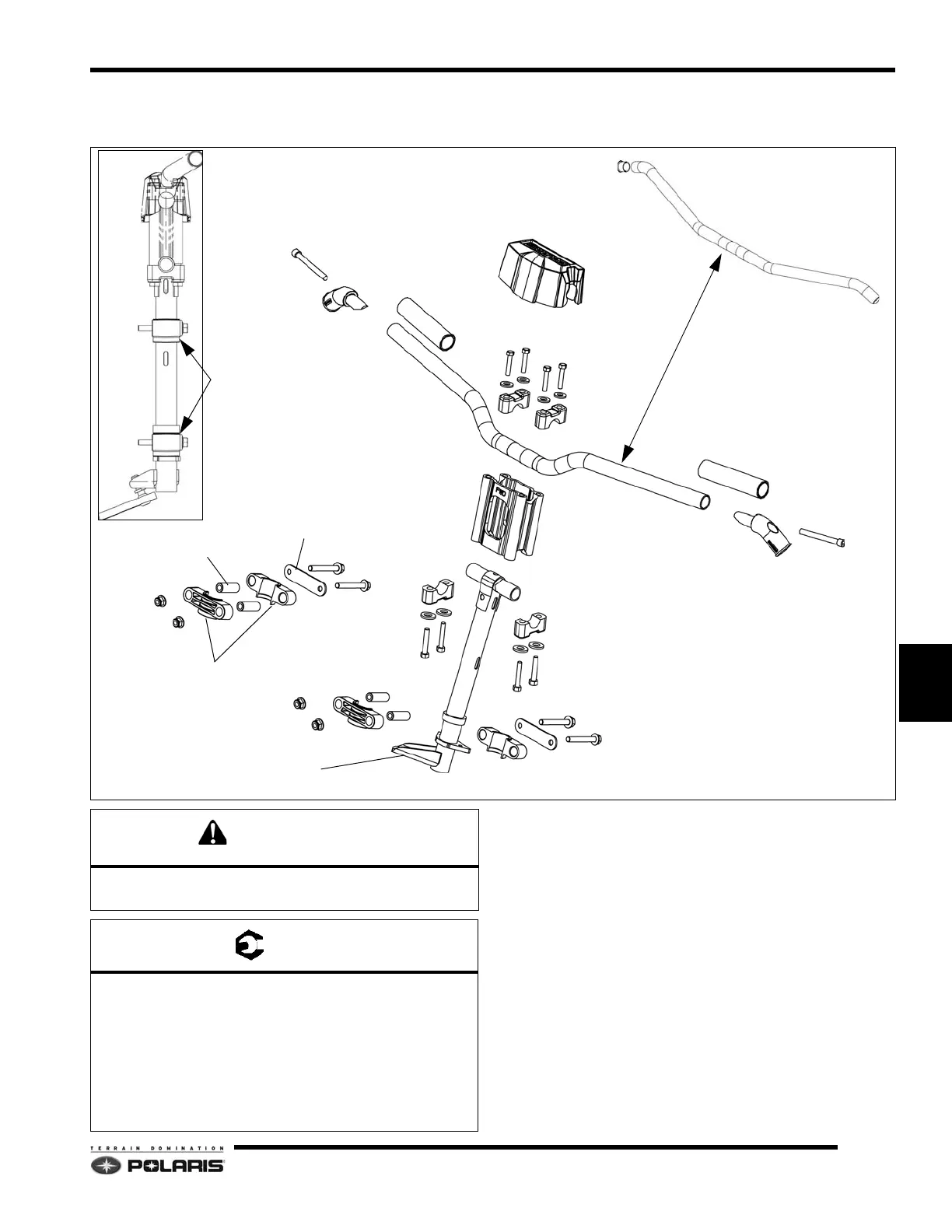

Upper Steering Assembly
NOTE: Assembly Notes
• Install handlebar riser with “FWD” facing front of
vehicle.
INSTALL CLAMP BUSHINGS AS SHOWN
WITH OFFSETS DOWN.
2013 INDY SP/RUSH/SWITCHBACK FEATURE
FULL-LENGTH HANDLEBARS
HANDLEBAR COVER
RISER
HANDLEBAR HOOK
HANDLEBAR CLAMPS
HANDLEBAR HOOK
CLAMP BUSHINGS
A
A
A
B
B
C
C
GRIP
STEERING STRAP
BUSHING SPACERS
STEERING POST
Never re-use lock nuts. Always re-assemble using new
lock nuts.
A: 14.7 ft-lbs (20 Nm)
B: 12 ft-lbs (16 Nm)
C: 18 ft-lbs (25 Nm)
Throttle Lever Block Screw: 35 in-lbs (4 Nm)
Master Cylinder Screws: 24 i
n-lbs (2.7 Nm)
Torque hand guard screws to prevent components
from mov
ing/rotating during operation. DO NOT
CRUSH HANDLEBAR WHEN TORQUING SCREWS.
