PVT System
Polaris P2 Driven Helixes

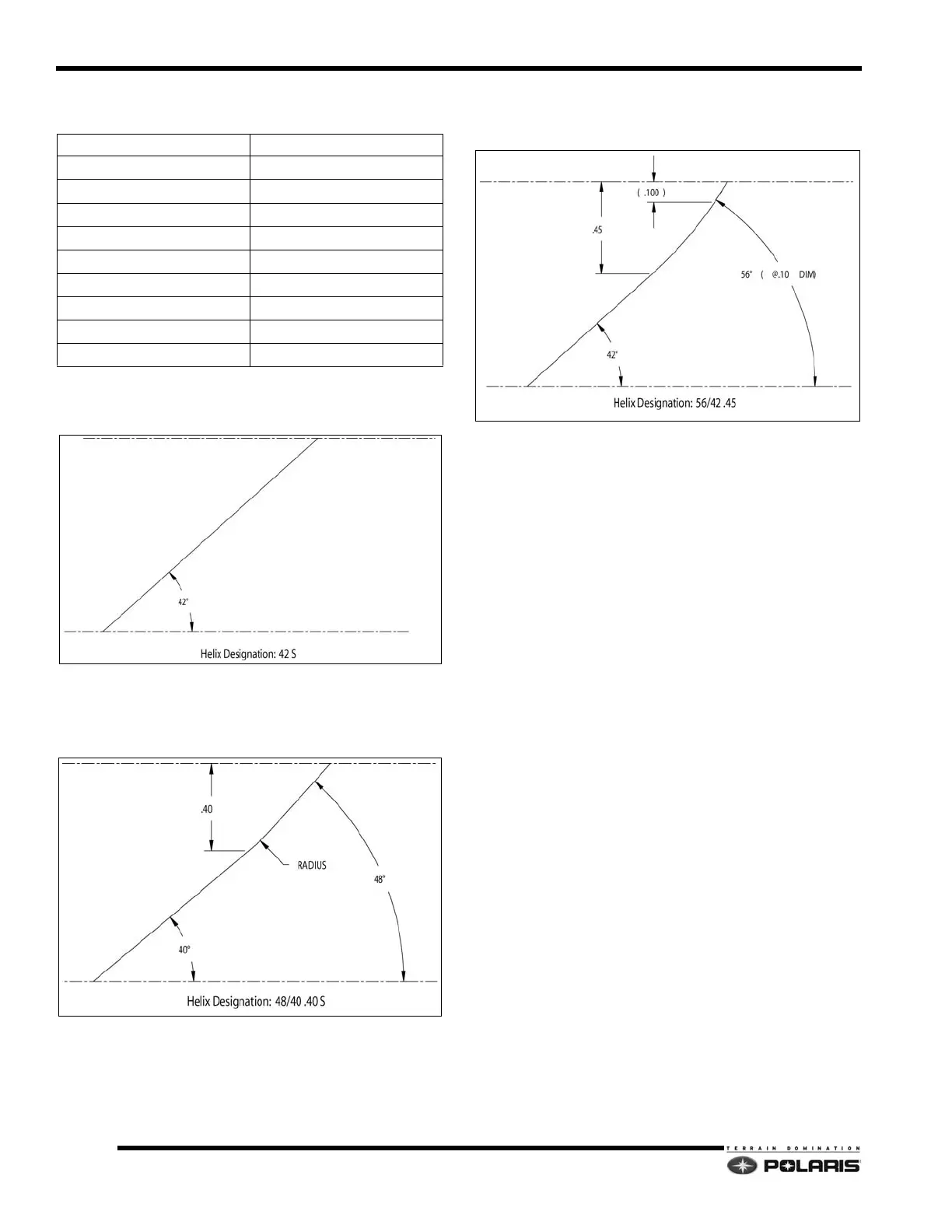

P2 Helix Angles
Straight Angle Helix: 42S Example
Dual Straight Angle Helix: 48/40 .40S Example
1st Angle / 2nd Angle - Vertical Distance to Transition
Arc to Straight Angle Helix: 56/42 .45 Example
1st Angle at .100” from Horizontal / 2nd Angle - Vertical
D
istance to Transition
PART NUMBER DESCRIPTION
5136975 38S
5137154 40S
5137155 42S
5137160 44S
5137142 58/40 - .35
5137150 40/38 - .45
5137157 44/38 - .45
5137176 58/42 - .45
5137153 60/40 - .45
