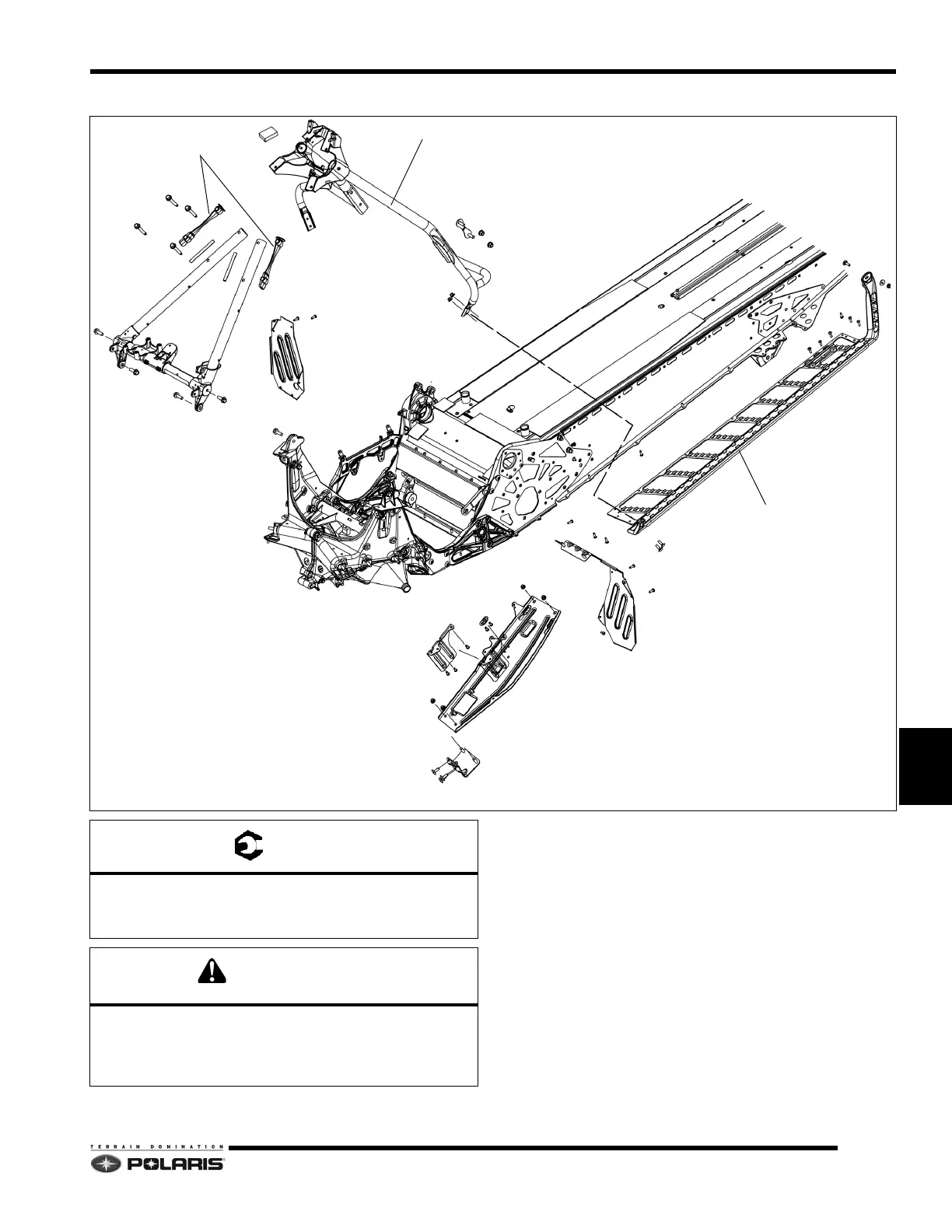

Front / Rear Over Structure - 2013 RMK 155/163 Models
NOTE: Tube spacers for carbon fiber tubes not compatible with aluminum tubes.
= T
A: 9 ft-lbs (12 Nm)
B: 22 ft-lbs (30 Nm)
C: 7 ft-lbs (9 Nm)
CAUTION
Front and rear over structure assemblies feature bonded
components. Do not attempt to service over structure
tubes.
Ignition coil bracket not removable.
FRONT OVER STRUCTURE
TUBE SPACER
REAR OVER STRUCTURE
POWERTRAC™ RUNNING BOARD
STUD PLATE
CLUTCH GUARD
TPS GUARD
FOOTREST
B
B
B
B
C
B
A
FOOTREST
CLUTCH GUARD MOUNT
C
SEE NOTE
A
