9.14
Chassis

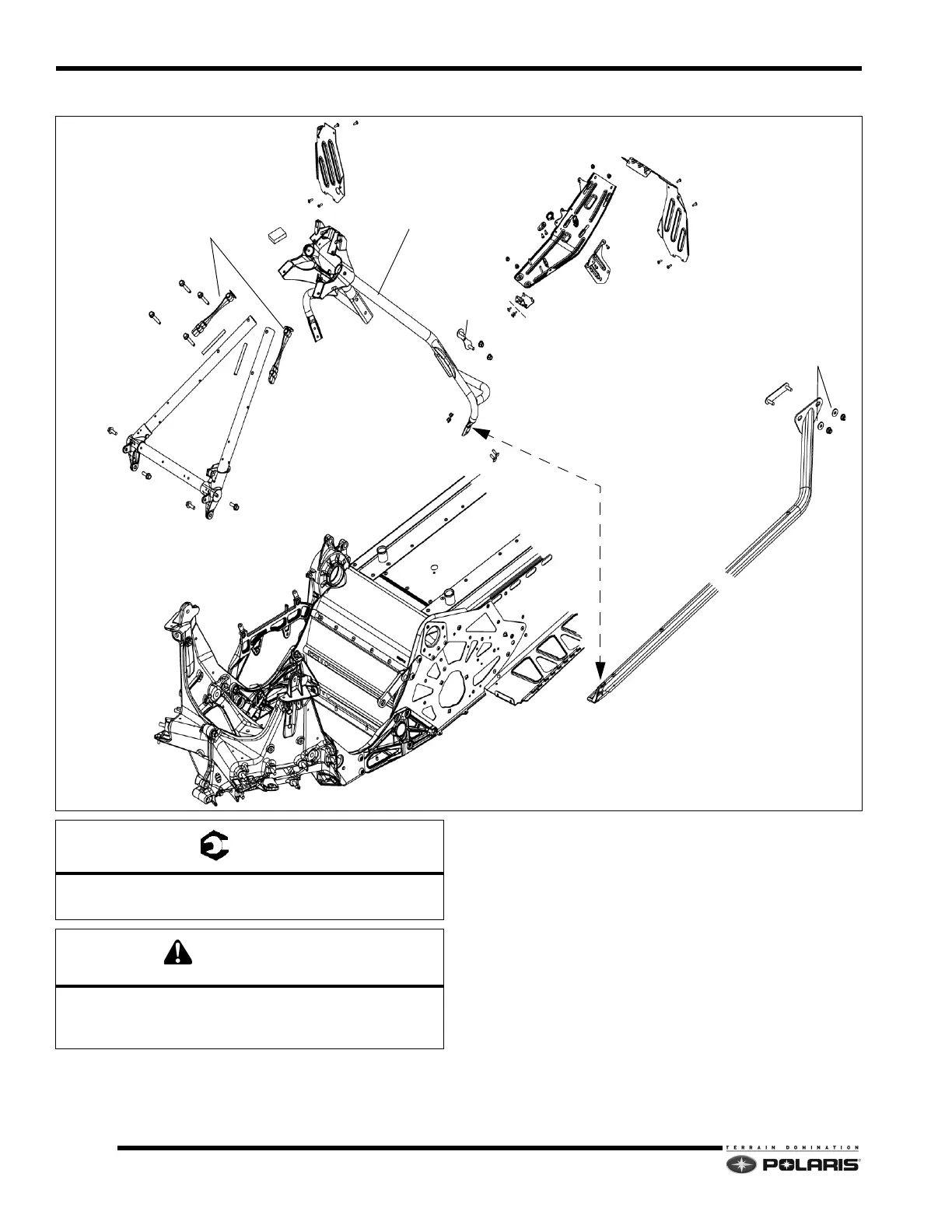

Front / Rear Over Structure - 2011-2012 RMK Models / 2011-2013 Switchback Assault
= T
A: 7 ft-lbs (9.5 Nm)
B: 22 ft-lbs (30 Nm)
CAUTION
Front and rear over structure assemblies feature bonded
components. Do not attempt to service over structure
tubes.
FRONT OVER STRUCTURE
TUBE SPACER
REAR OVER STRUCTURE
RUNNING BOARD SUPPORT
STUD PLATE
WASHERS
CLUTCH GUARD
TPS GUARD
STUD PLATE
FOOT REST
FOOT REST
B
B
B
B
B
A
B
A
