8.54
Steering and Suspensions

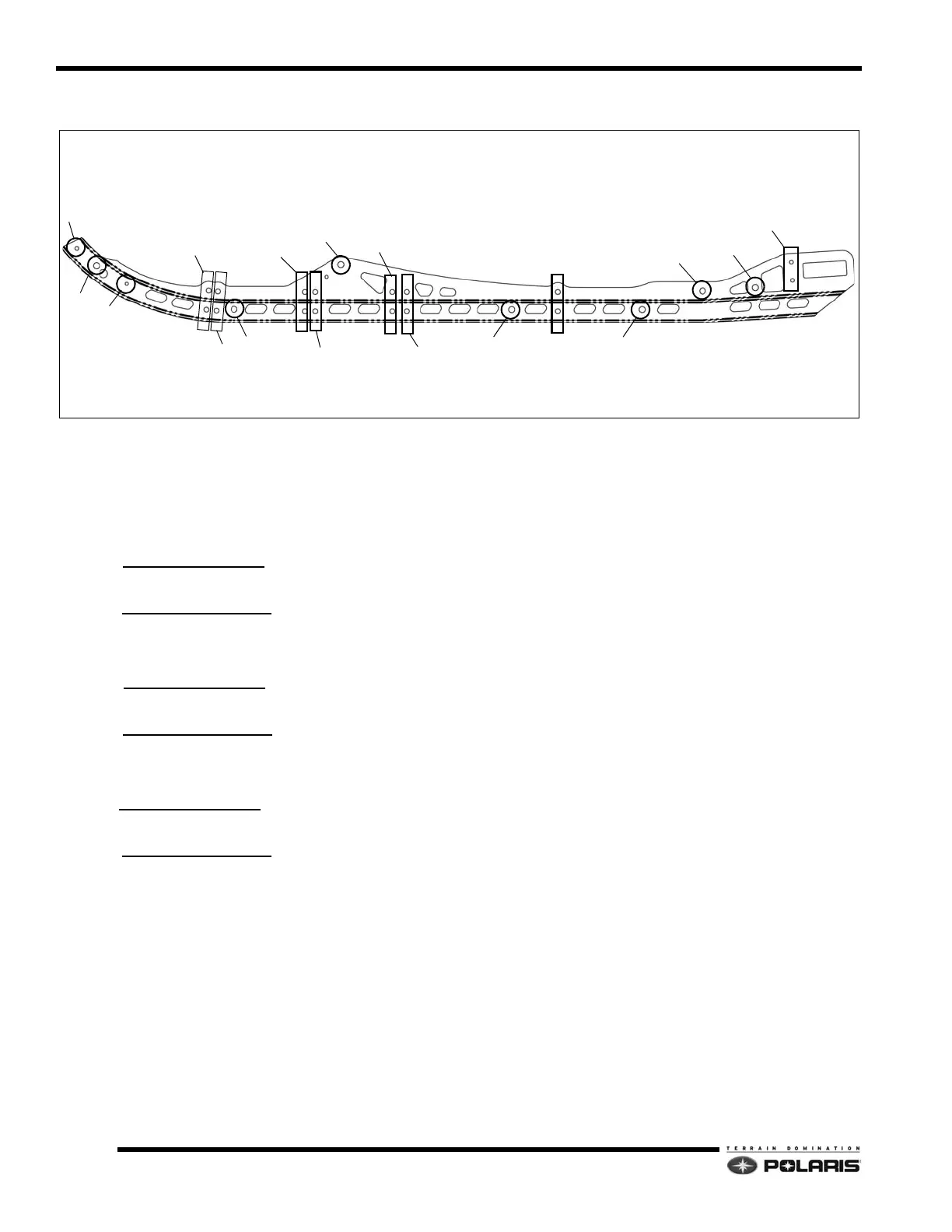

Progressive 136 Rail Fastener Locations
Components/Fasteners:
• A - Rail Tip
• B - Limiter Strap Shaft
• C - Rail Bumper
•D -
Left Rail Front Holes - Bogie Wheel Asm.
(Mount to outside of rail)
•E -
Right Rail Rear Holes - Bogie Wheel Asm.
(Mount to outside of rail)
• F - Front Shock Shaft
•G -
Left Rail Front Holes - Bogie Wheel Asm.
(Mount to outside of rail)
•H -
Right Rail Rear Holes - Bogie Wheel Asm.
(Mount to outside of rail)
• I - Front Torque Arm Shaft
•J -
Left Rail Front Holes - Bogie Wheel Asm.
(Mount to inside of rail)
•K -
Right Rail Rear Holes - Bogie Wheel Asm.
(Mount to inside of rail)
• L - Rail Brace Shaft
• M - Bogie Wheel Asm.
(Mount to inside of rail)
• N - Rail Brace Shaft
• O - Rear Pivot Shaft
• P - Rail Brace Shaft
• Q - Rear Idler Adjuster Block
A
B
C
D
E
F
G
H
K
M
J
L
I
N
O
LEFT RAIL SHOWN
P
Q
