Steering and Suspensions
2011-2013 RMK/PRO RMK/RMK Assault

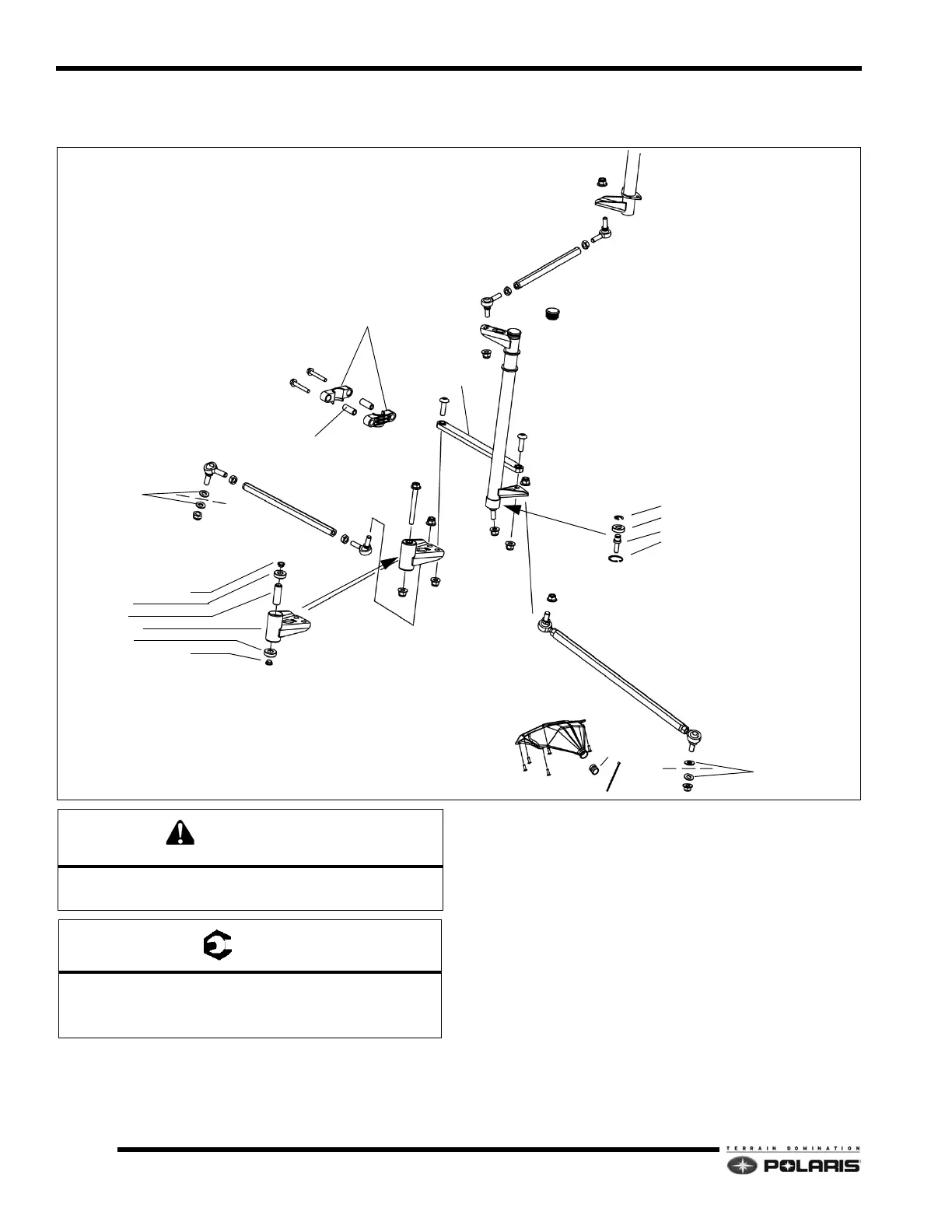

Steering Assembly
NOTE: Assembly Notes
• Orientate rod ends so they are parallel with mating
comp
onent.
• Tie rod end-to-rod end (center-to-center) length =
RMK/PRO RMK - 13.4" (354mm)
RMK Assault - 15.04" (382mm)
• Upper drag link rod end-to-rod end (center-to-
cente
r) length = 15.19" (385.9mm)
FIXED LINK
LOWER STEERING POST
UPPER STEERING POST
UPPER DRAG LINK
TIE ROD
TIE ROD BOOT
TIE ROD
ROD END
ROD END
ROD END
ROD END
A
B
B
B
B
B
B
C
C
C
C
C
C
B
B
A
B
RETAINING RING
BEARING
SPACER STUD
RETAINING RING
BUSHING REDUCER
BEARING
SPACER
IDLER ARM
BEARING
BUSHING REDUCER
STEERING POST BUSHINGS
BUSHING SPACERS
WASHERS
WASHERS
BUSHING
POST CAP
CAUTION
Never re-use lock nuts. Always re-assemble using new
lock nuts.
= T
A: 22 ft-lbs (30 Nm)
B: 37 ft-lbs (50 Nm)
C: 11 ft-lbs (15 Nm)
