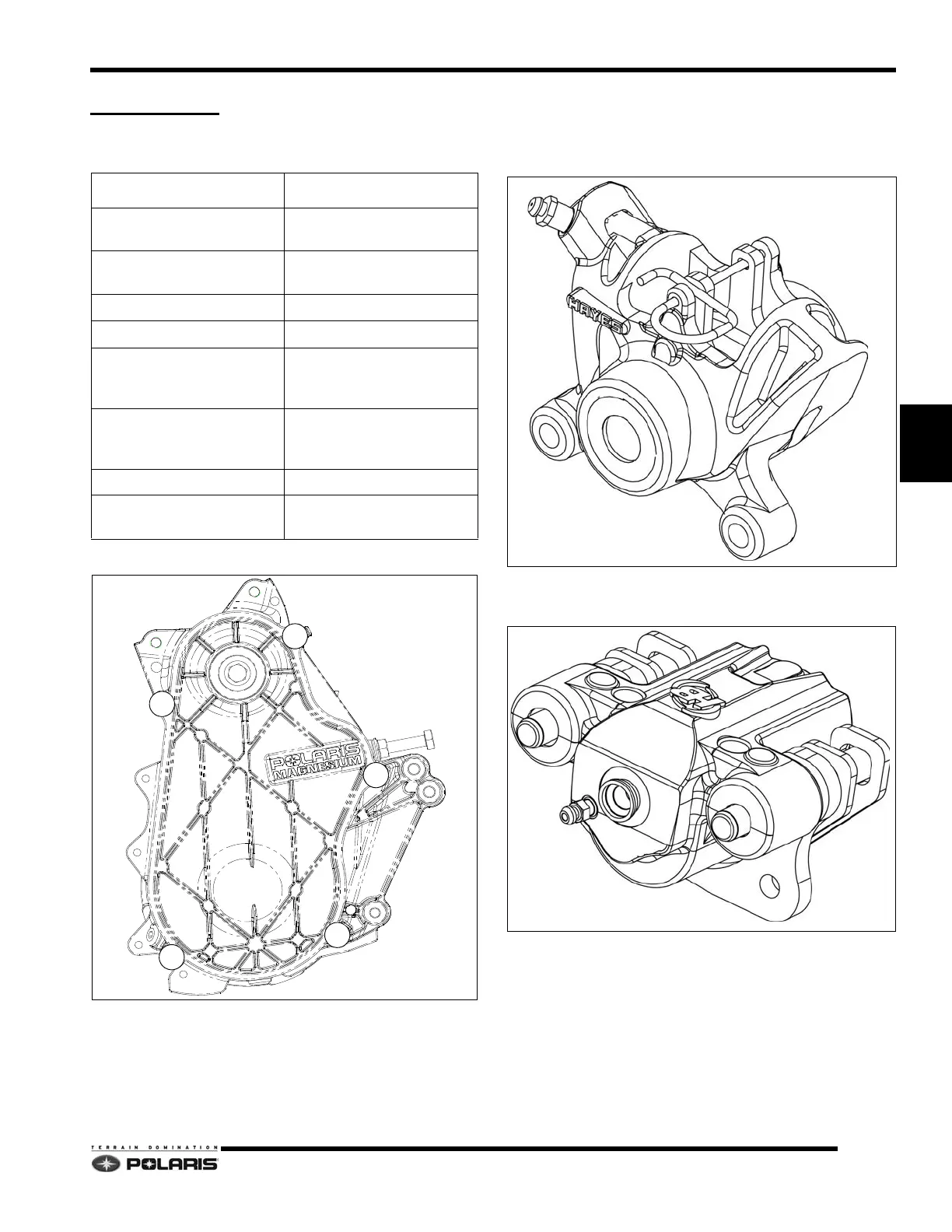

5.5
Final Drive/Brake System
5
CHAINCASE
Specifications/Torque Guide
Chaincase Cover Torque Pattern
Brake Caliper Types
Phantom
-Fixed Caliper, Dual Floating Pistons
Phantom Lite
-Floating Caliper, Single Piston
COMPONENT TORQUE/SPEC.
Lubricant
Capacity
Polaris 80W SCL
9oz. (266 ml)
Cover Fasteners
(Follow Torque Pattern)
9.5 ft-lbs (13 Nm)
Chain Tensioner Jam Nut 21 ft-lbs (28 Nm)
Fill Plug 6 - 9.5 ft-lbs (8 - 13 Nm)
Drain Plug
(Clean socket prior to inserting
tool.)
6 - 9.5 ft-lbs (8 - 13 Nm)
Brake Disc Fastener
2010
2011-Current
29 ft-lbs (40 Nm)
40 ft-lbs (54 Nm)
Lower Gear Fastener 29 ft-lbs (40 Nm)
Brake Caliper Mounting
Fa
steners
40 ft-lbs (54 Nm)
