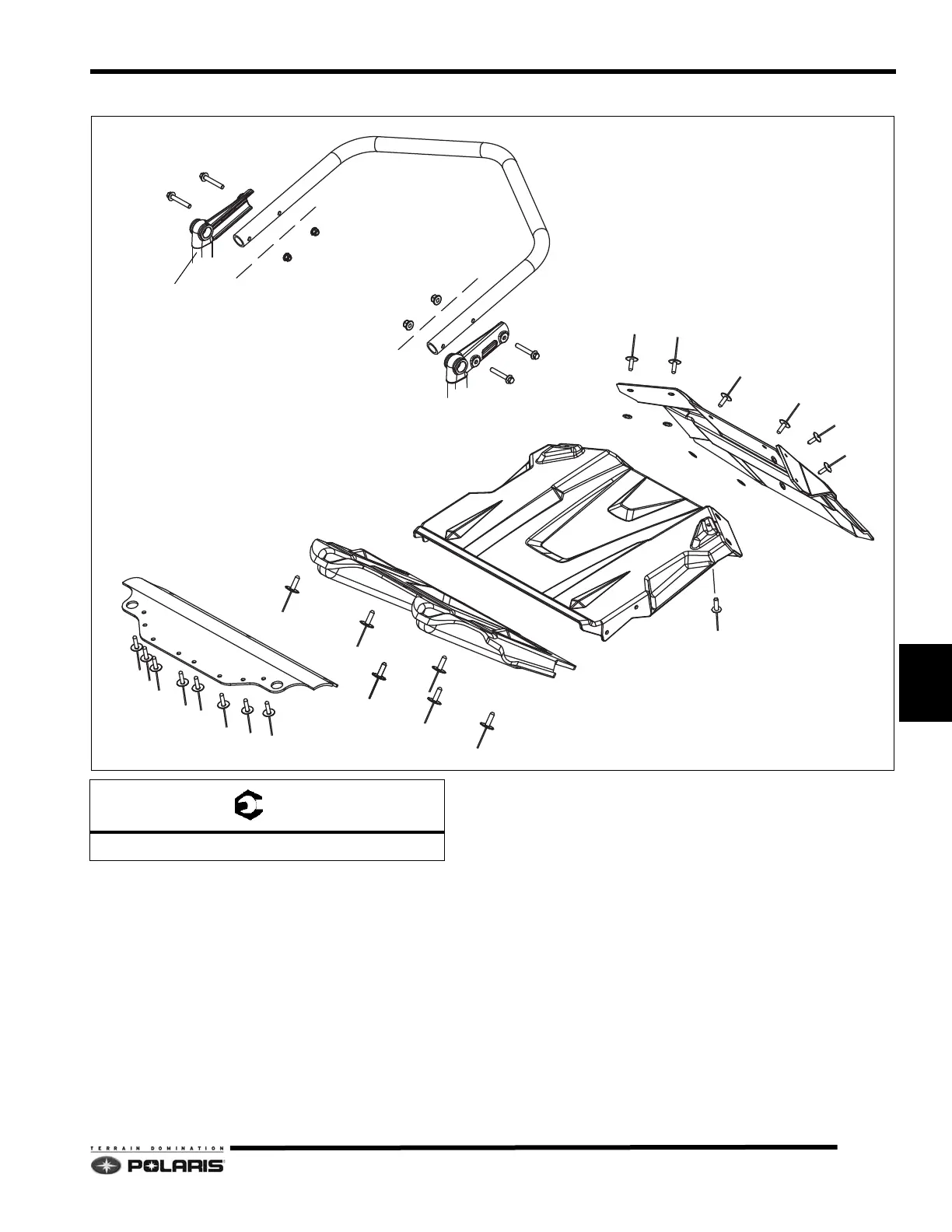

2010 Progressive 120 Rear Bumper/Closeoff Assembly
Assembly Notes
• Never re-use lock nuts. Always replace with new parts.
• All pivots must rotate freely after tightening fasteners.
= T
A: 7 ft-lbs (9.5 Nm)
REAR BUMPER
REAR PIVOT
CLOSEOFF FLAP
UPPER FLAP
MID FLAP
REAR FLAP
A
A
METRIC FASTENERS
