Polaris 800 RMK ASSAULT 2011

4.30
Cleanfire Fuel Injection
2011-2013 INDY/Switchback Assault/RMK
Fuel Tank/Pump Assembly
SERVICE PARTS:
• 2011-2012 Fuel Pump Assembly (w/gasket) -
252
1142
• 2013 Fuel Pump Assembly (w/gasket) - 2204727
• 2011-2012 Pickup Assembly (w/clamps-gasket) -
252
0873
• 2013 Pickup Assembly (w/clamps-gasket) -
220
4609
• PFA Gasket - 5413063

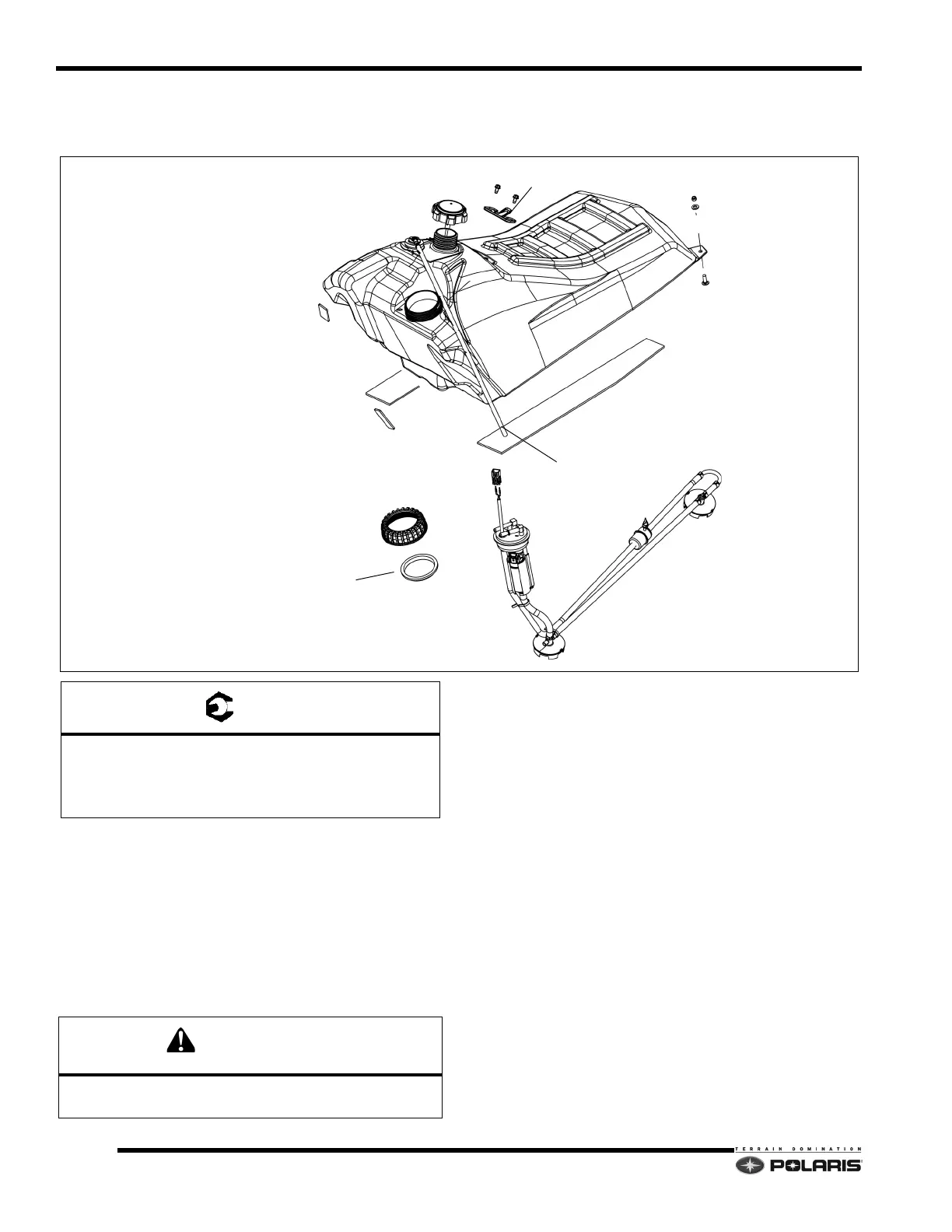

FUEL TANK
A
PFA GASKET
PFA NUT
CAP
VENT/VAC HOSE
SEAT MOUNT BRACKET
PUMP ASSEMBLY
C
D
PICKUP ASSEMBLY
= T
A: 10 ft-lbs (14 Nm)
B: 6 ft-lbs (8 Nm)
C: 28 ft-lbs (38 Nm)
D: 7 ft-lbs (10 Nm)
CAUTION
ALWAYS REPLACE PFA GASKET WITH NEW
GASKET AFTER REMOVING FUEL PUMP.
