3.44
Engine/Cooling/Exhaust

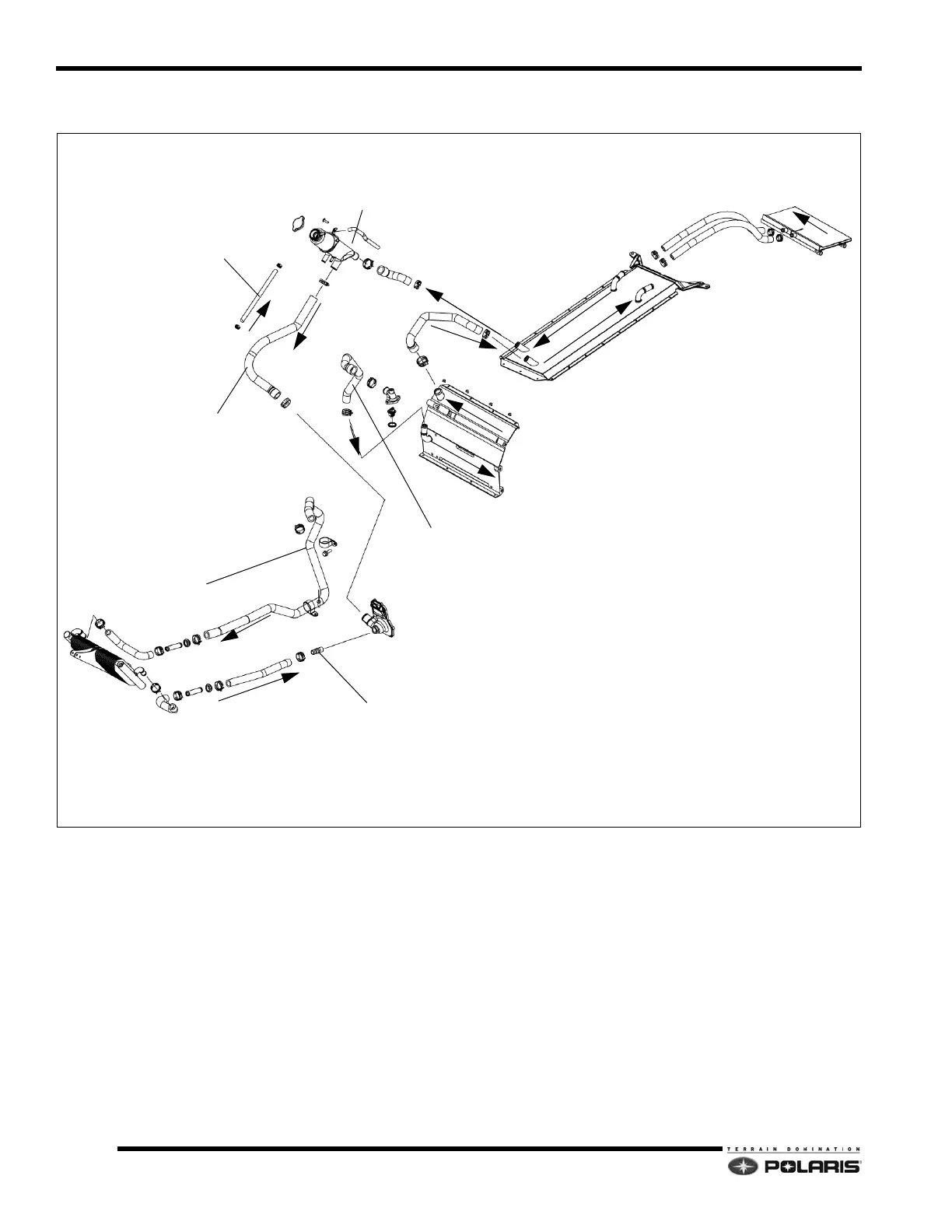

2011 800 RUSH Cooling System
NOTE: Front heat exchanger circuit always active. Front tunnel cooler, tunnel cooler, and mid-flap cooler only
active when thermostat is open.
Models feature 2mm thermostat bleed hole.
Thermostat opening temperature is 120° F (49° C).
REAR TUNNEL COOLER
FRONT TUNNEL COOLER
SURGE BOTTLE
HOSE (CYLINDER BYPASS
HEAT EXCHANGER
HOSE (THROTTLE BODY-TO-SURGE TANK)
HOSE (SURGE TANK-TO-WATER PUMP)
WATER PUMP COVER
BARBED NOZZLE
-TO-HEAT EXCHANGER)
HOSE (THERMOSTAT OUTLET-TO REAR COOLERS)
MID FLAP COOLER
