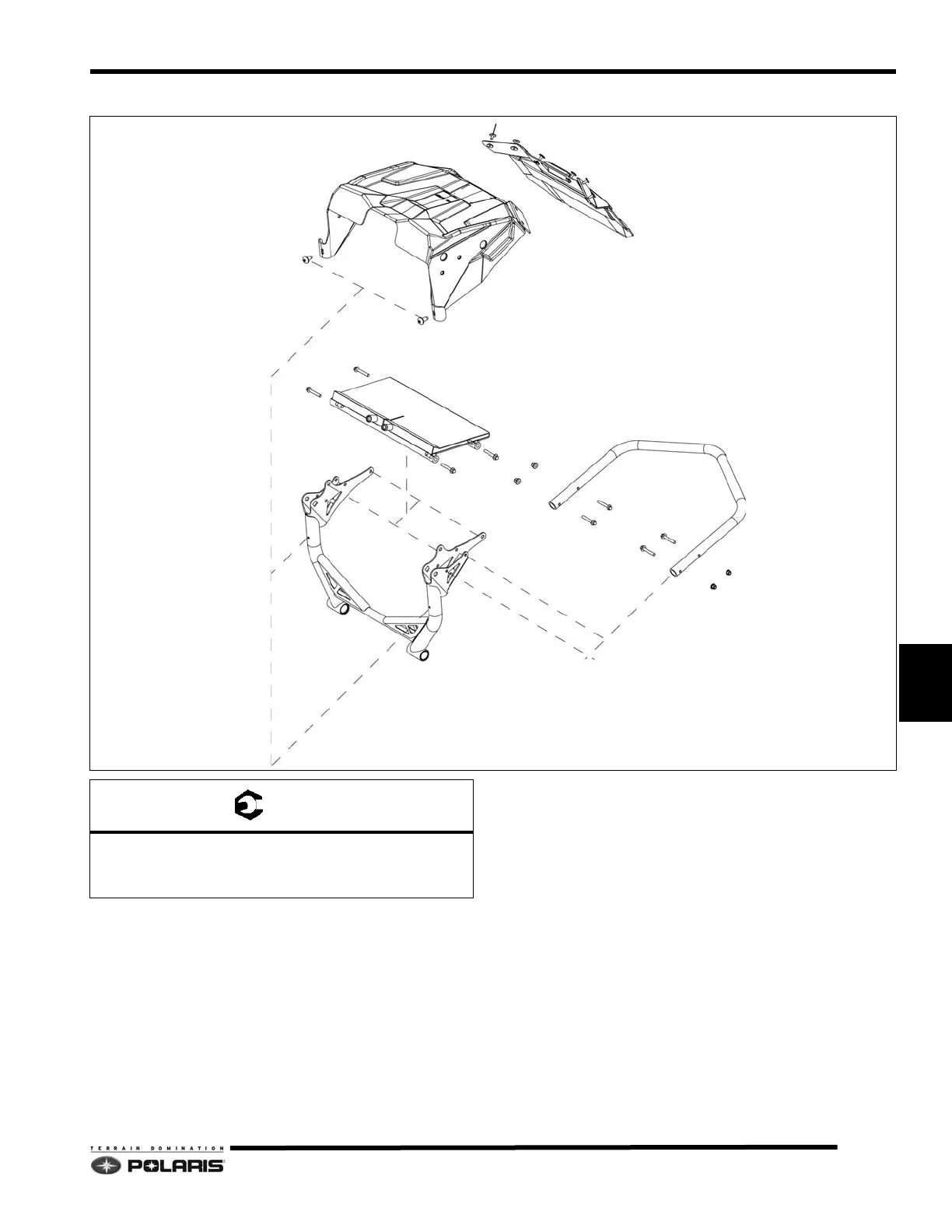

2011 Progressive 121 Bumper/Closeoff Assembly
Assembly Notes
• Never re-use lock nuts. Always replace with new parts.
• All pivots must rotate freely after tightening fasteners.
= T
A: 33 ft-lbs (44.7 Nm)
B: 3.6 ft-lbs (5 Nm)
C: 9.5 ft-lbs (7 Nm)
REAR BUMPER
REAR PIVOT
MID FLAP COOLER
REAR FLAP
A
A
MID FLAP
A
A
B
B
C
C
METRIC FASTENERS
