Polaris 800 RMK ASSAULT 2011

9.28
Chassis

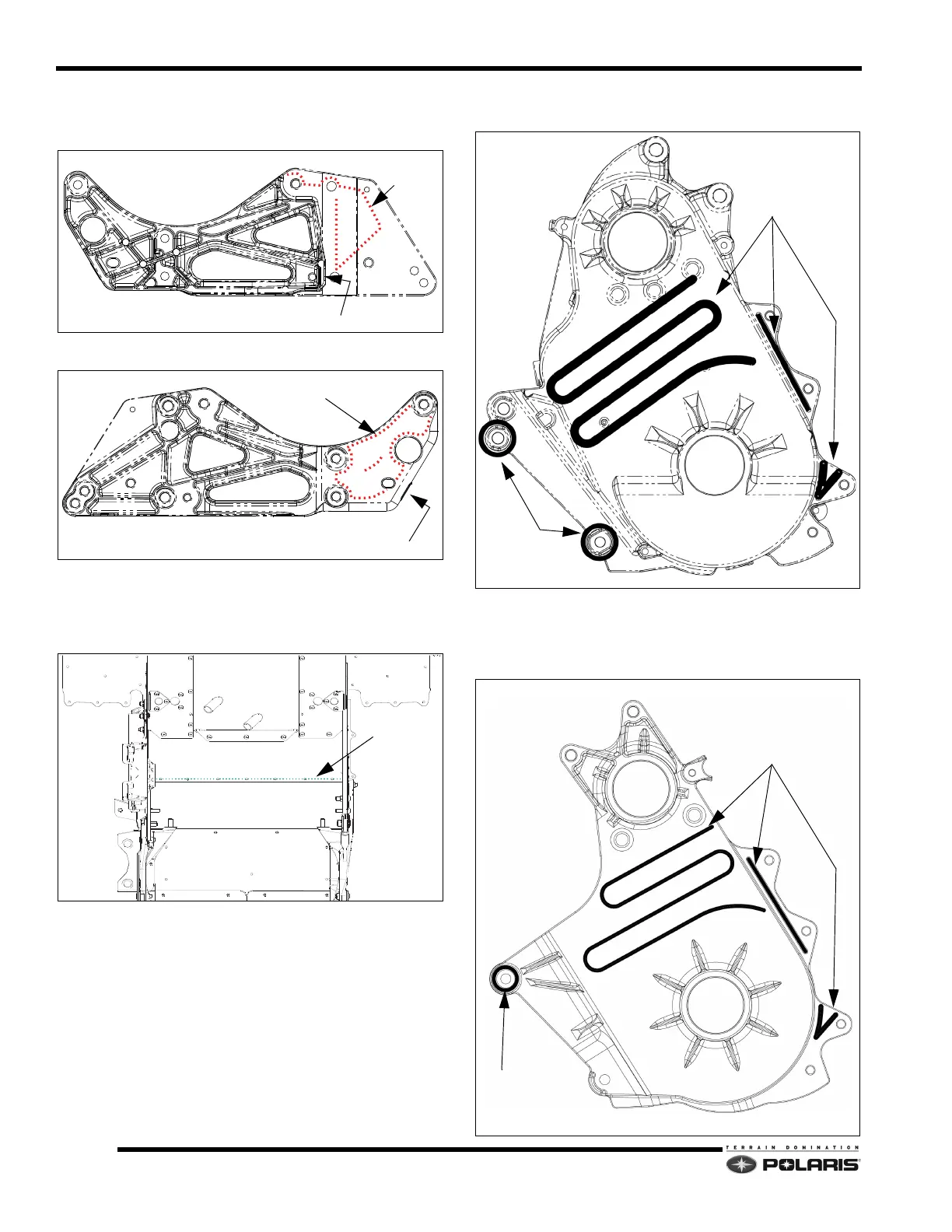

RH (MAG) SIDE BRACE
(BULKHEAD MATING SURFACE)
(FRONT CLIP MATING SURFACE)
FRONT BULKHEAD COOLER/PLATE
(TUNNEL MATING SURFACE)
Chaincase (2012-Later Models)
(MATING SURFACE)
NOTE: Adhesive application can be used on 2010-
201
1 models.
QuickDrive Backer Plate
(MATING SURFACE)
ADHESIVE
LINE
APPLY ADHESIVE TO COOLER/PLATE MATING SURFACE
ADHESIVE
LINE
APPLY SMALL AMOUNT OF ADHESIVE HERE
ADHESIVE
LINE
ADHESIVE
LINE
ADHESIVE
LINE
ADHESIVE
LINE
ADHESIVE
LINE
