14. Connect the positive battery cable to the starter
motor and negative cable to the starter mount.
TORQUE
Starter Motor Bolts:
7 ft-lbs (10 Nm)

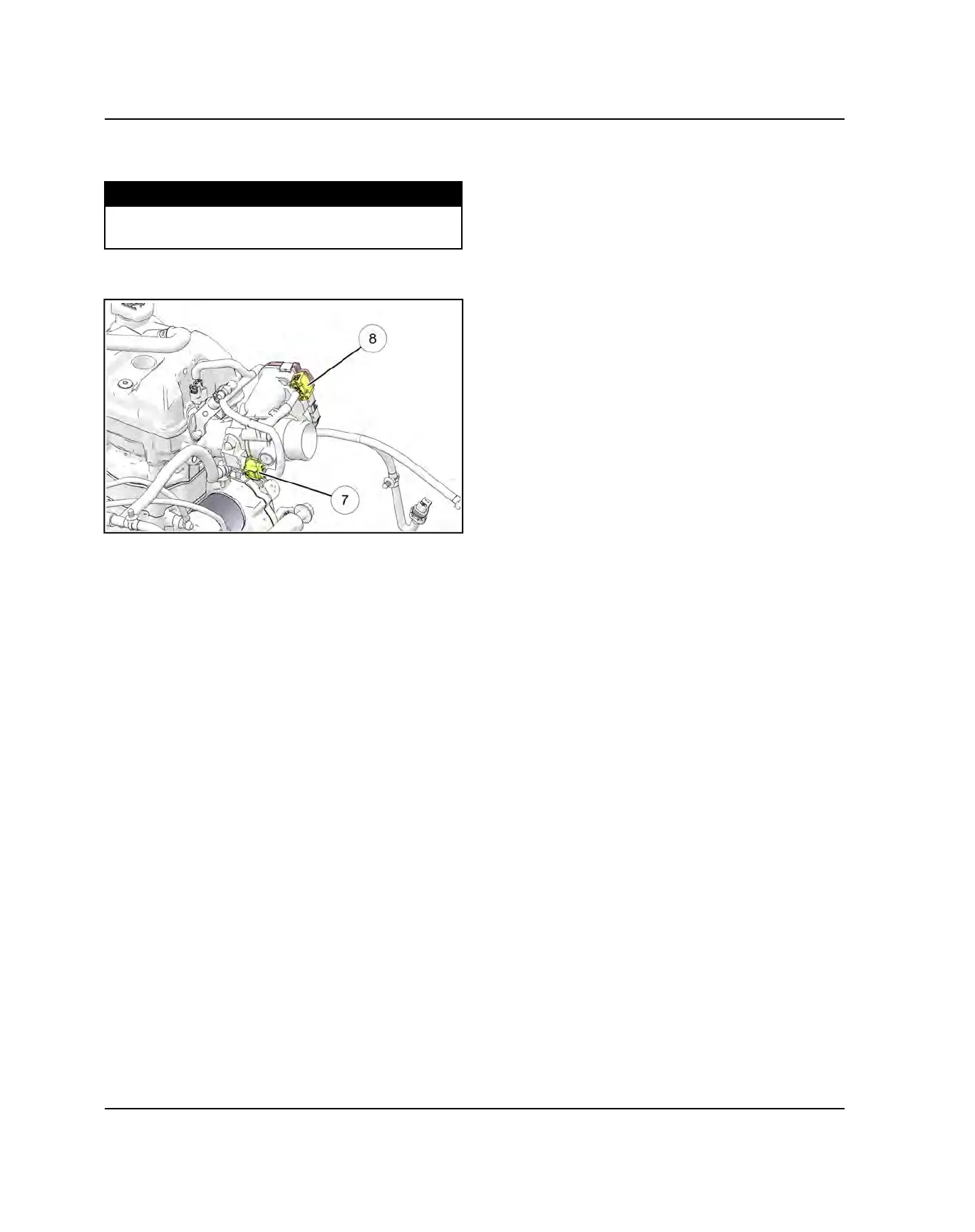

15. Connect the TMAP sensor (7) and ETC (8). Verify
harness routing is correct.
16. Connect the fuel injector harness lead to the fuel
injector.
17. Connect the fuel line to the fuel rail.
18. Connect the ignition coil harness connector and
install the spark plug wire.
19. Connect the CPS connector to the wiring harness.
20. Connect the stator wire connector and install a new
tie strap to secure the wiring to the mount bracket.
21. Install the inner clutch cover as outlined in chapter 6.
22. Install the drive clutch, driven clutch, belt and outer
clutch cover as outlined in Chapter 6. Be sure all
hose and wire routing is correct. Torque all fasteners
to specification as outlined in Chapter 6.
23. Install the cargo box assembly as outlined in the
Body / Frame Chapter.
24. Remove the pressure cap and fill the cooling system
through the filler neck with properly mixed anti-freeze
/ coolant.
25. If the engine oil was completely drained, add
approximately 1.75 quarts (1.65 L) of Polaris PS-4
Synthetic Engine Oil into the crankcase.
26. Install a new oil filter.
27. Connect the (-) negative battery cable to the battery.
28. Install the seat.
29. Follow the cooling system bleeding procedure as
outlined in this chapter.
30. Start engine and check for any oil or coolant leaks.
31. Check the engine oil level. .
32. Verify proper operation.
