3.52
ENGINE

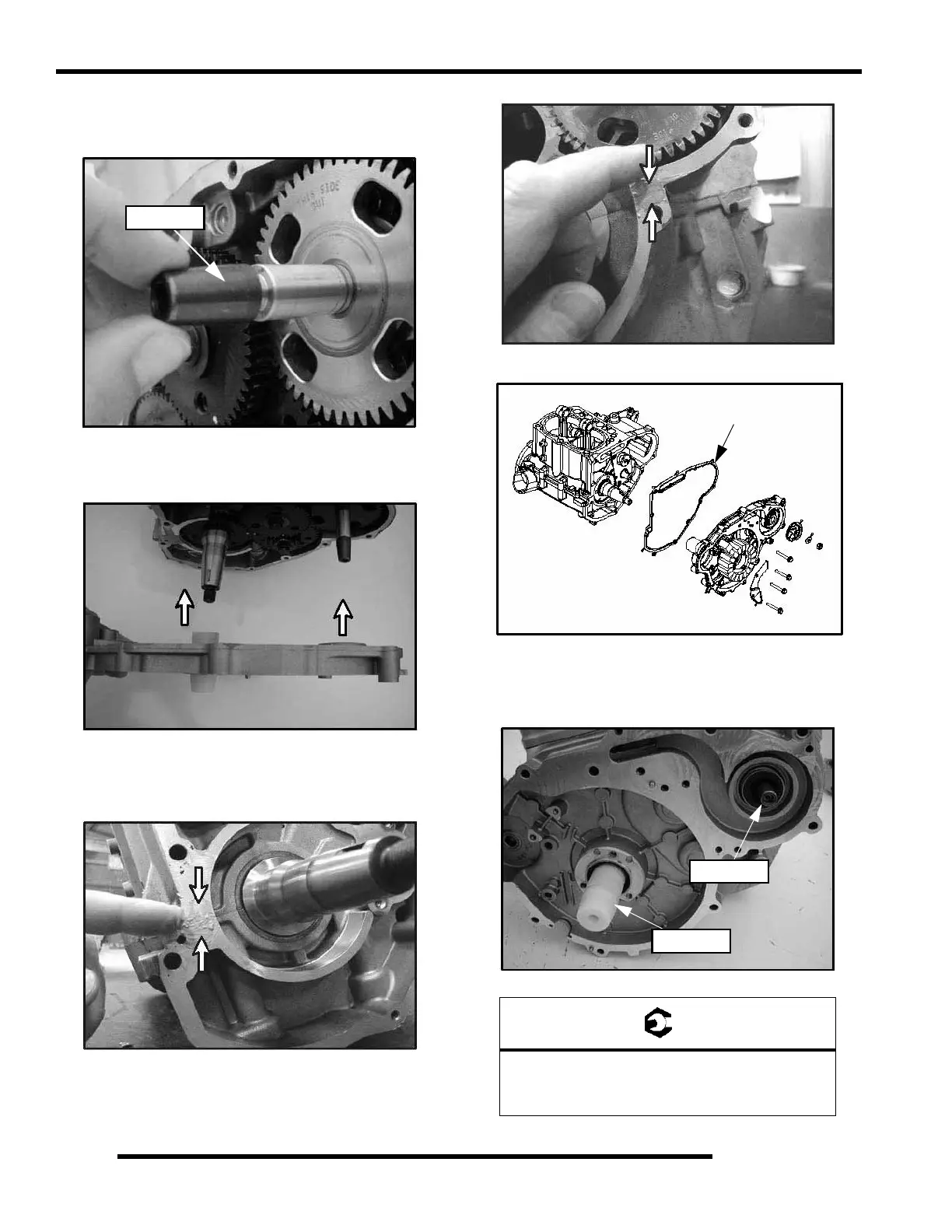

32. Before installing the gear/stator housing cover, install the
Water Pump Seal Saver (PA-45401) onto the water pump
shaft.
33. Install a NEW gasket to the gear/stator housing cover and
crankcase. With the tools installed, carefully place the
gear/stator housing cover over the protection tools.
34. Apply Crankcase Sealant (PN 2871557) to the outside
edges of the crankcase halves (See arrows), where the
crankcases mate. (See photos below.) This helps to prevent
coolant leakage.
35. Install the gear/stator housing gasket onto he crankcase.
36. Secure the gear / stator housing cover to the crankcase with
the cover bolts. Torque bolts in proper sequence to
specification. Remove seal protectors from the shaft ends
once the cover is secure.
PA-45401
= T
Gear/Stator Housing Bolt Torque:
96  3 in. lbs. (10.85  0.35 Nm)
*Torque in proper sequence
Gear / Stator
Housing Gasket
PA-45658
PA-45401
