7.56
FINAL DRIVE

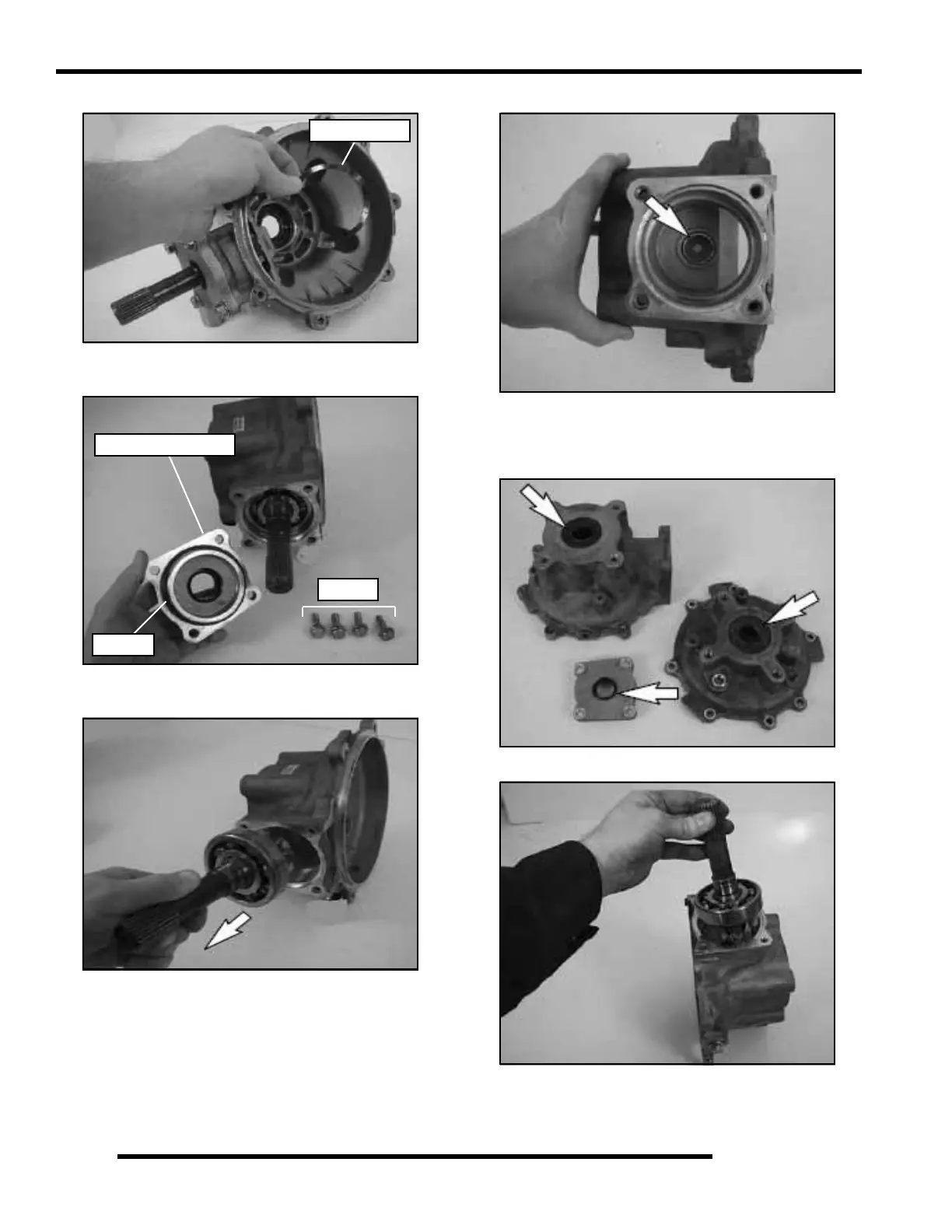

5. Remove the wave spring from the differential assembly.
6. Remove the four bolts that secure the pinion gear cover to
the differential. Remove the pinion gear cover and O-ring.
7. Remove the pinion shaft from the differential. Inspect for
abnormal wear, broken, or chipped teeth.
8. Inspect the pinion shaft bushing for wear.
Gearcase Assembly
1. Replace all O-rings, seals, and worn components.
2. Install the pinion shaft into the differential housing.
Wave Spring
4 Bolts
O-Ring
Pinion Gear Cover
