7.32
FINAL DRIVE

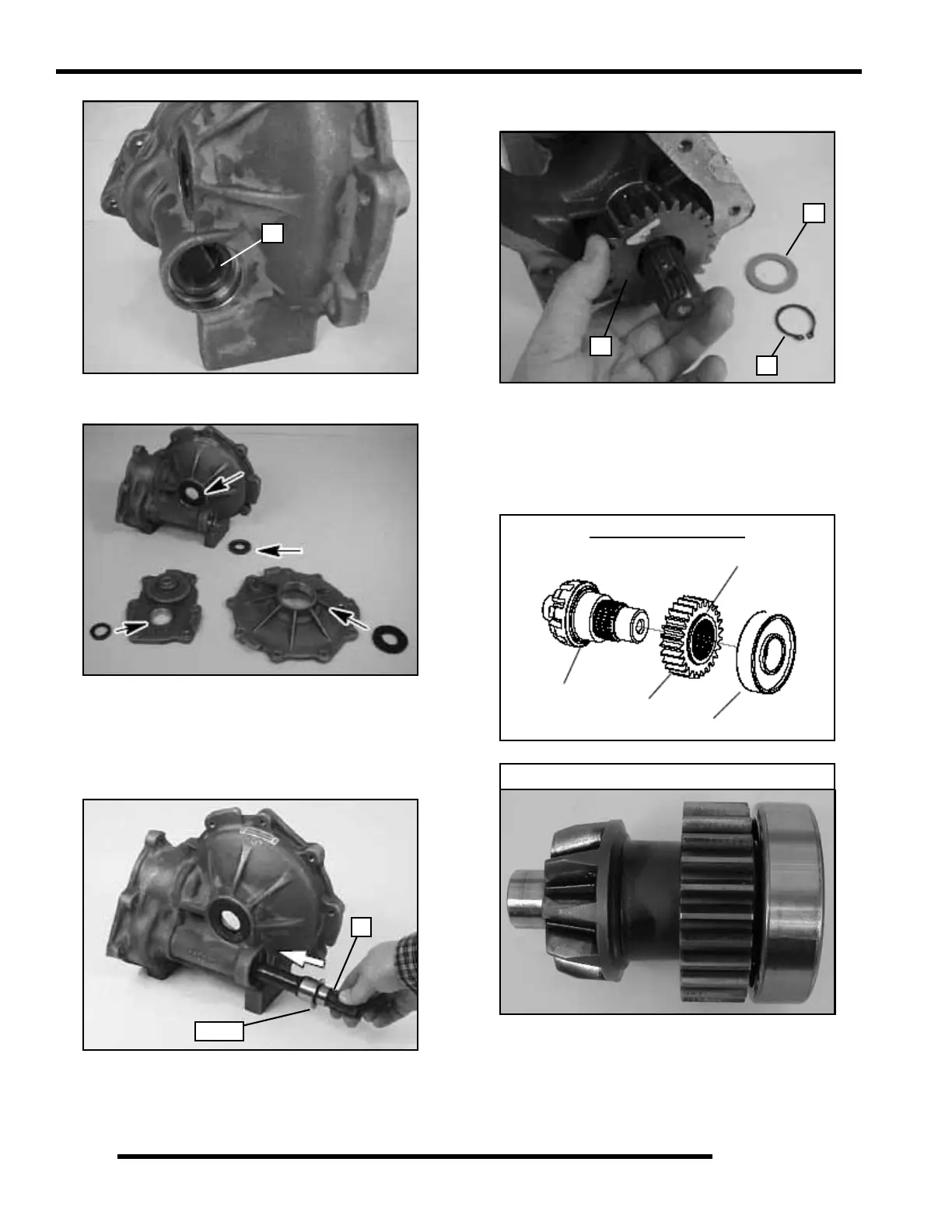

15. Replace all O-ring, seals, and worn components. Replace
the seals as shown in the photo.
Gearcase Assembly
1. Install the shim (A) and a new retaining ring (B) onto the
output end of the output shaft (C). Install the output thru
shaft into the gearcase.
2. Install the 26T input gear (D), shim (E), and a new retaining
ring (F) onto the output shaft.
3. Assemble the pinion shaft assembly (if previously
disassembled). Install the 26T gear (G) and bearing (H)
onto the pinion shaft (I).
NOTE: When replacing the 26T output, be sure the
step of the gear is facing towards the bearing (see
below).
4. Install the pinion shaft assembly into the input cover.
NOTE: Alignment of the pinion shaft bearing into the
input cover maybe be difficult. If needed, use the
following steps to aid in installation (refer to photo
on right):
S
A & B
C
D
E
F
Pinion Shaft Assembly
Step Of Gear
I
G
H
Pinion Shaft Assembly Assembled
To Next Page
