5.12
BODY / STEERING / SUSPENSION
STEERING AND SUSPENSION

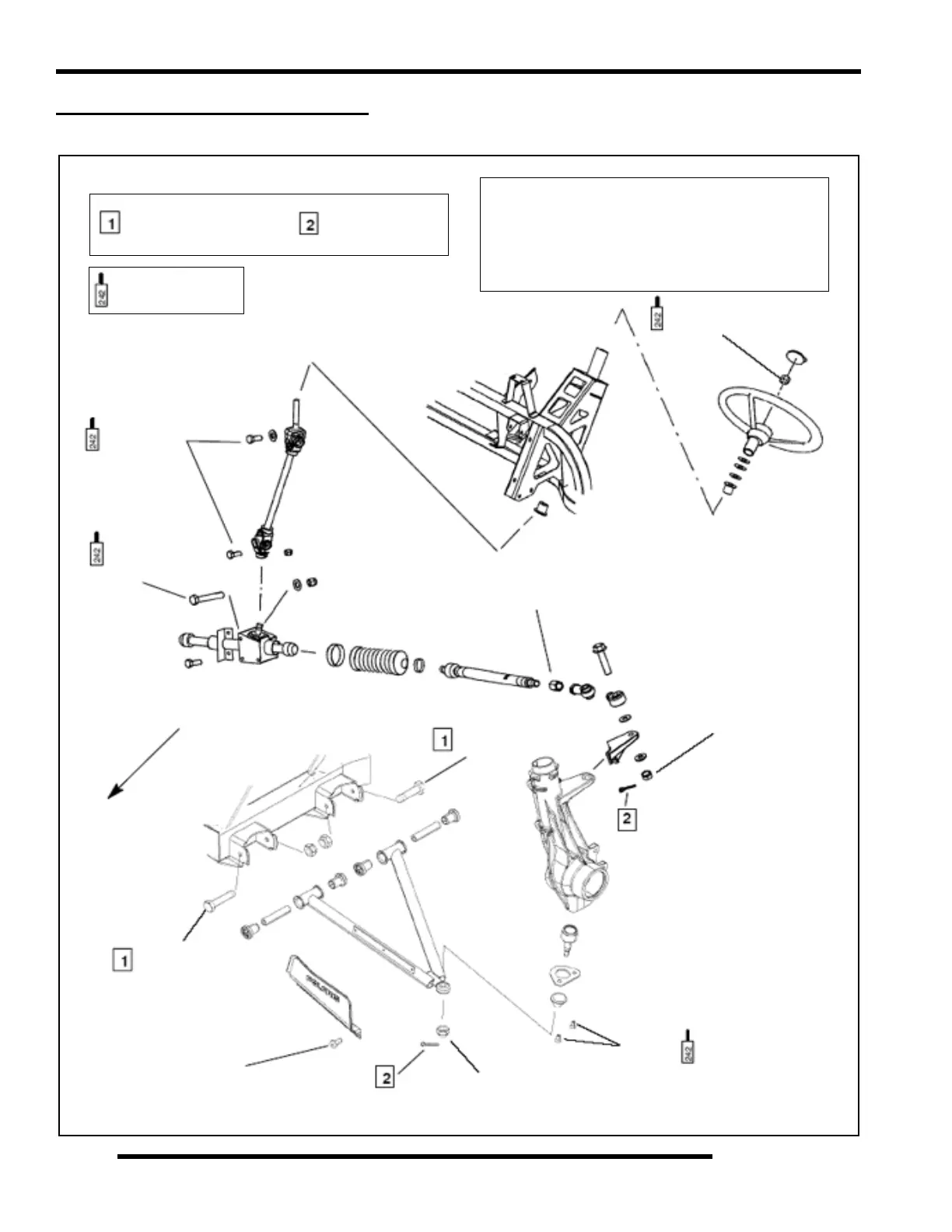

Exploded View
Always use new bolts
upon reassembly
Always use new
cotter pins upon
reassembly.
NOTE: To avoid damage to the tie rod ends and
other steering components, be sure to install tie
rod end bolts in the proper direction. The stee-
ring post arm bolt (B) points up; the rod end
bolts (A) point down. Be sure inner rod ends
are placed between the steering post arms.
Apply Loctite
TM
242
15-22 ft. lbs.
(20-30 Nm)
30 ft. lbs.
(41 Nm)
Front
12-14 ft. lbs.
(16-19 Nm)
30 ft. lbs.
(41 Nm)
30 ft. lbs.
(41 Nm)
25-30 ft. lbs.
(34-41 Nm)
40-45 ft. lbs.
(54-61 Nm)
25 ft. lbs.
(35 Nm)
8 ft. lbs.
(11 Nm)
20-30 ft. lbs.
(2-3.5 Nm)
