Polaris RANGER XP 700 4X4

8.16
TRANSMISSION

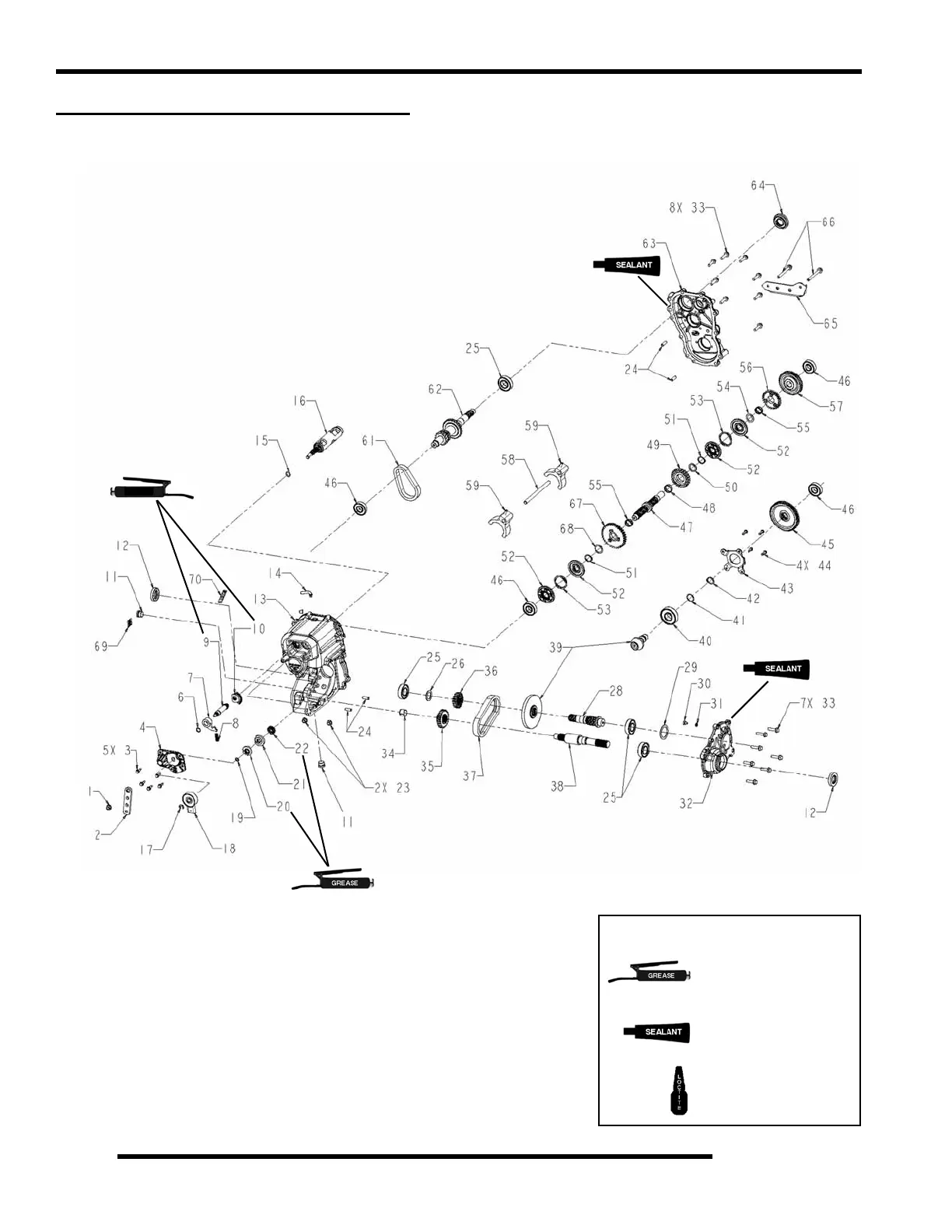

TRANSMISSION EXPLODED VIEW
Exploded View (4x4, 6x6)
FOR REASSEMBLY
Apply White Lithium
Based Grease.
Apply Polaris
Crankcase Sealant.
Apply Loctite
TM
262 to
the bolt threads.
12-18 ft. lbs.
(16-24 Nm)
7-9 ft. lbs.
(10-12 Nm)
15-19 ft. lbs.
(20-26 Nm)
27-34 ft. lbs.
(37-46 Nm)
6-12 ft. lbs.
(8-16 Nm)
GREASE
27-34 ft. lbs.
(37-46 Nm)
10-14 ft. lbs.
(14-19 Nm)
