Polaris RANGER XP 700 4X4 User Manual

5.21
BODY / STEERING / SUSPENSION
5

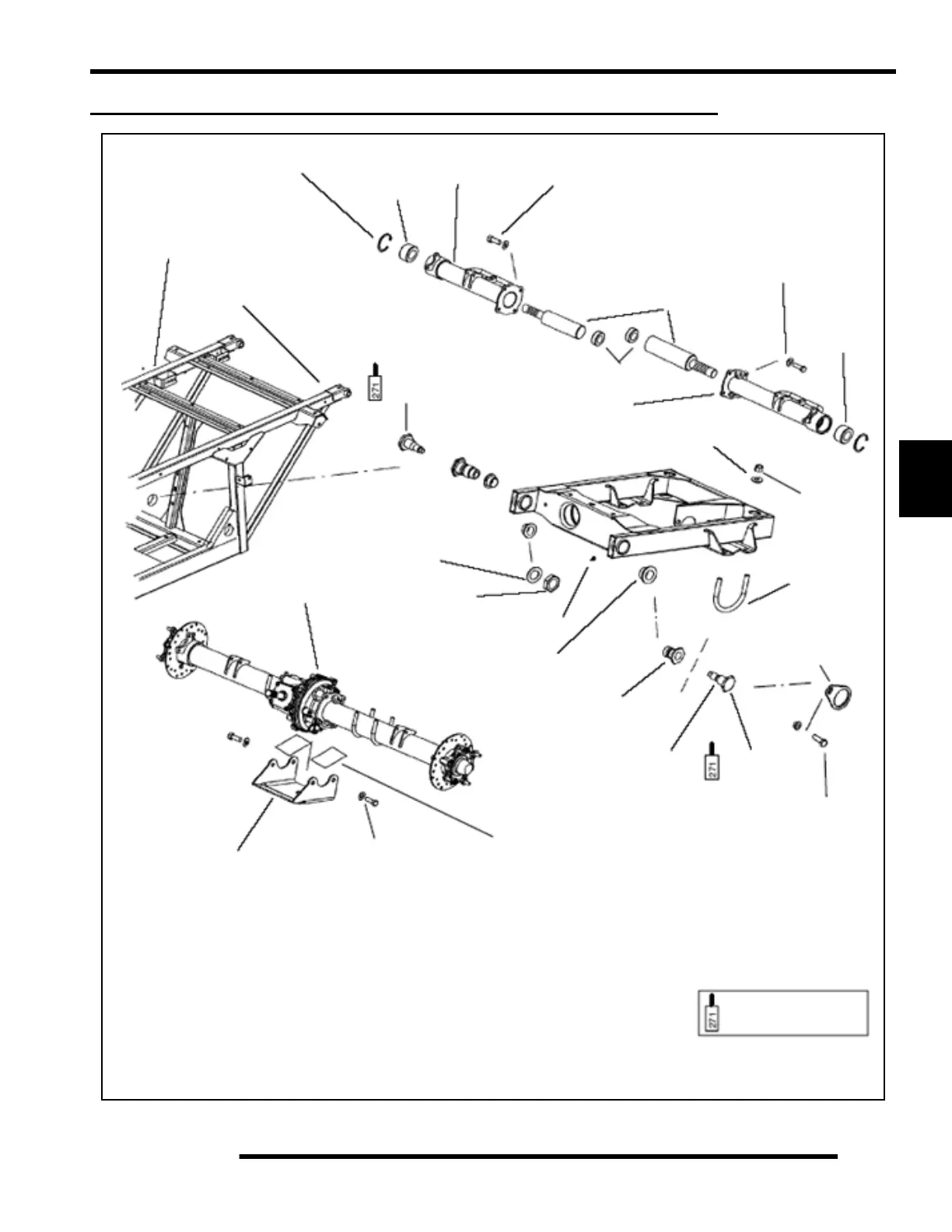

REAR DRIVE AXLE AND SWINGARM EXPLODED VIEW (6X6)
Vehicle Frame
Swing Arm
Rear Gearcase
Bolt & Washer
Rubber Pad
Retaining Ring
Axle Tube
Screw & Washer
Washer
Axle Tube
U - Bolt Nut & Washer
U- Bolt
Swing Arm Pivot Bolt
Grease Fitting
Swing Arm Bushing
Wheel
O - Ring
Jam Nut
150 ft. lbs.
(203 Nm)
Bolt Lock
Bracket
Bearing
60 ft. lbs.
(81 Nm)
60 ft. lbs.
(81 Nm)
Screw & Washer
60 ft. lbs.
(81 Nm)
Axle
Wheel
Bearing
Assembly
Skid Plate
Pivot Bushing
150 ft. lbs.
(203 Nm)
30 ft. lbs.
(40 Nm)
40 ft. lbs.
(54 Nm)
Apply Loctite
TM
242
