2.35
GENERAL INFORMATION
2
Parking Brake Pad Inspection
Measure the thickness of the rear caliper parking brake pads.

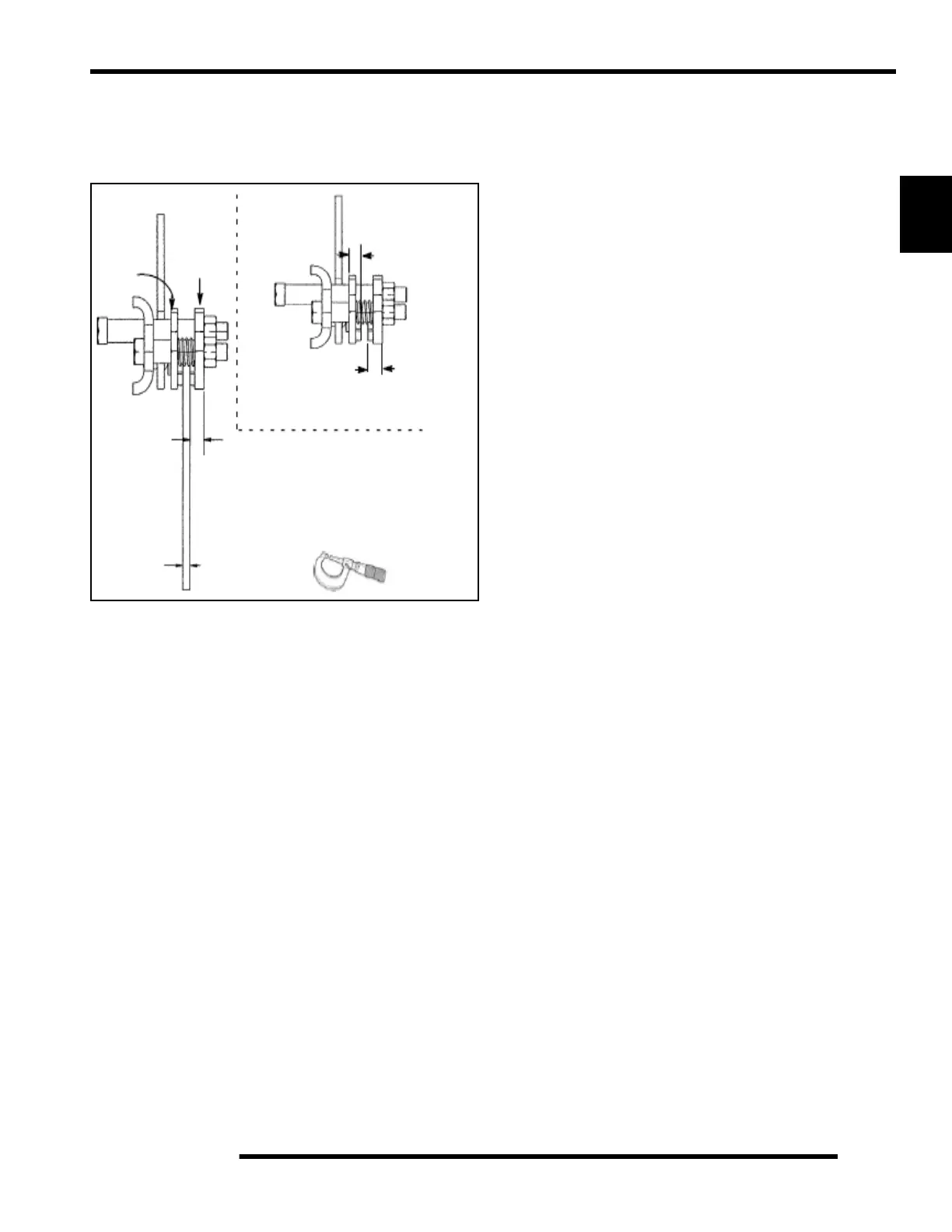

Replace assembly as needed. See illustration below for proper
readings.
Brake Hose and Fitting Inspection
Check brake system hoses and fittings for cracks, deterioration,
abrasion, and leaks. Tighten any loose fittings and replace any
worn or damaged parts.
Inboard
Pad
Outboard
Pad
Inboard Pad Thickness
New .304” (7.72 mm)
Limit: 0.24” (6.1 mm)
Outboard Pad Thickness
New 0.360” (9.14 mm)
Limit: 0.31” (7.87 mm)
Installed Disc to Park Brake
0.375” (0.953 cm)
New Rotor Disc Thickness
0.150” - 0.164”
(3.81 - 4.16 mm)
