5.14
BODY / STEERING / SUSPENSION
FRONT STRUT

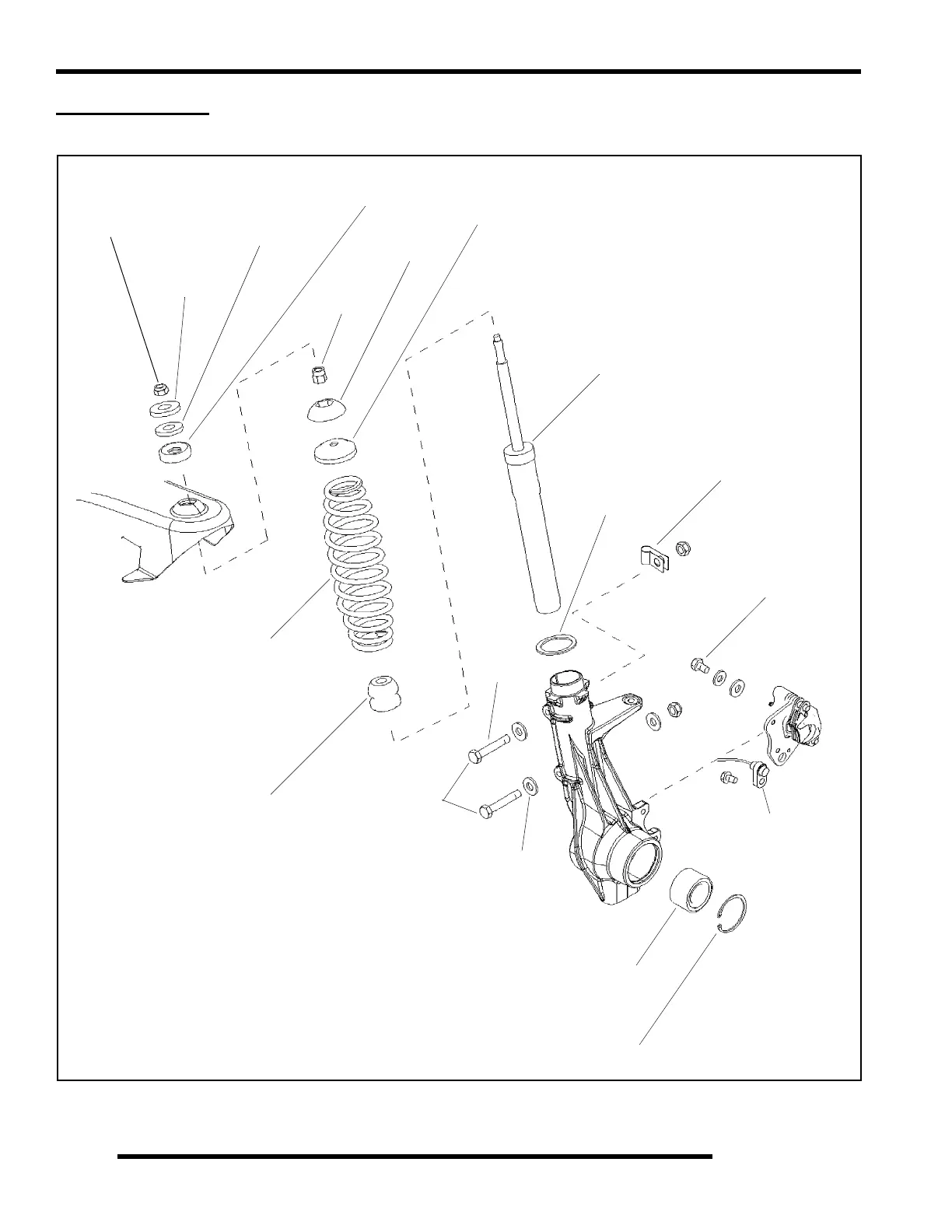

Exploded View
Nut
15 ft. lbs.
(21 Nm)
Washer
Spacer Rubber
Top
Spacer
Bottom
Spring
Spring
Washer
Bolt
Bearing
Retaining Ring
Washer
Clamp
Front Strut
Strut Bumper
18 ft. lbs.
(24 Nm)
Pivot Ball
Retainer
Pivot Ball
18 ft. lbs.
(24 Nm)
Wheel Speed Sensor
(Hall Effect Sensor)
