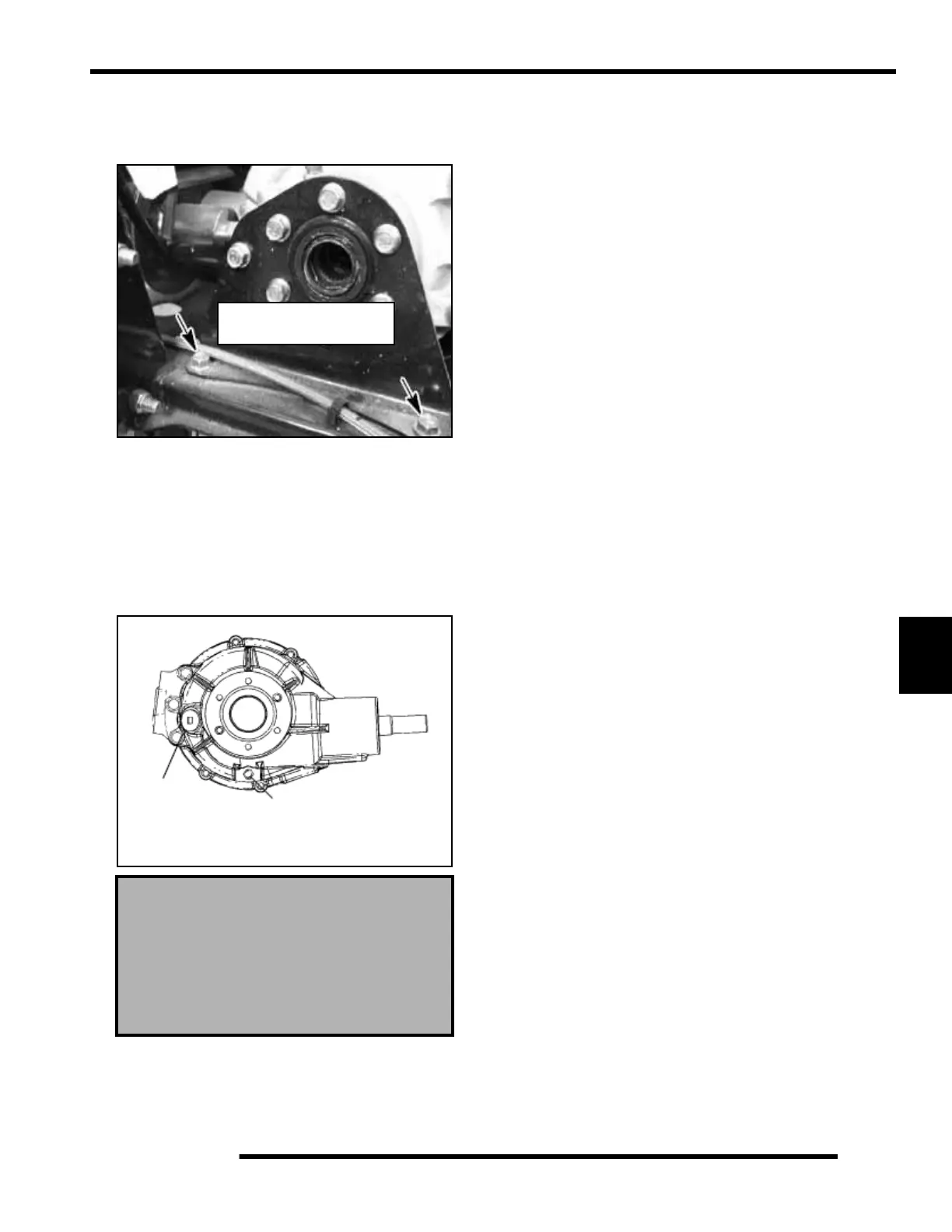

7.51
FINAL DRIVE
7
Differential Installation
1. Place the differential assembly into the frame. Torque the
bracket to frame bolts to 38-42 ft.lbs. (35-45 Nm).
2. Slide the rear propshaft onto the rear differential input shaft.
3. Reverse the removal procedure for the rest of the
installation.
4. Add Polaris ATV Angle Drive Fluid (PN 2871653) to rear
carrier. Refer to maintenance information in Chapter 2 for
more details. Torque drain plug to 30-45 in.lbs. (3-5 Nm).
Torque fill plug to 40 ft.lbs. (54 Nm).
Rear Gearcase capacity:
18 fl. oz. (532 ml)
or
0.75” (1.9 cm) below bottom of fill plug
hole threads - See Chapter 2
Bracket to Frame
38-42 ft. lbs. (35-45 Nm)
Fill Plug
Drain Plug
40 ft. lbs.
(54 Nm)
30-45 in. lbs.
(3-5 Nm)
