Polaris RANGER XP 700 4X4

10.22
ELECTRICAL

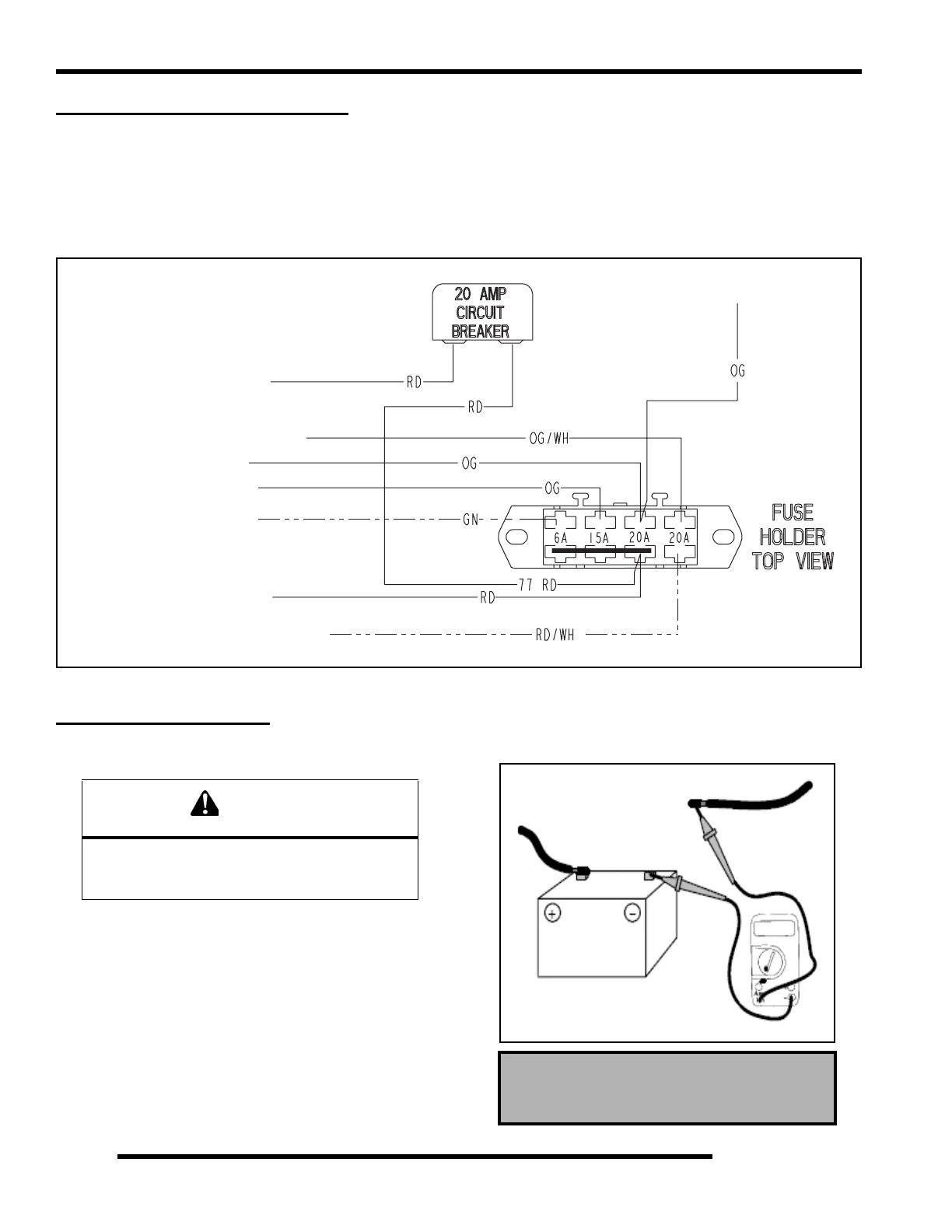

FUSES / CIRCUIT BREAKER
Operation
The fuse panel, located under the hood, provides component protection for components such as the Instrument Cluster, ECU, EFI
system, Chassis Power and Accessories.
A 20-amp circuit breaker protects the fan motor circuit.
CHARGING SYSTEM
Current Draw - Key Off
Connect an ammeter in series with the negative battery cable.
Check for current draw with the key off. If the draw is excessive,
loads should be disconnected from the system one by one until
the draw is eliminated. Check component wiring as well as the
component for partial shorts to ground to eliminate the draw.
60OWERTO3PEEDOMETER
!CCESSORY0OWER4ERMINAL"LOCK
60OWERTO+EY3WITCH
60OWERTO0OWER2ELAY
!MP0ROTECTIONFOR%#5
!MP0ROTECTIONFOR+EY/N0OWER
60OWERFROM&USIBLE,INK
60OWERTO&AN2ELAY
CAUTION
Do not connect or disconnect the battery cable
or ammeter with the engine running. Damage will
occur to electrical components.
Current Draw - Key Off:
Maximum of .01 DCA (10 mA)
Current Draw Inspection
Key Off
30 Amp
