6.19
CLUTCHING
6

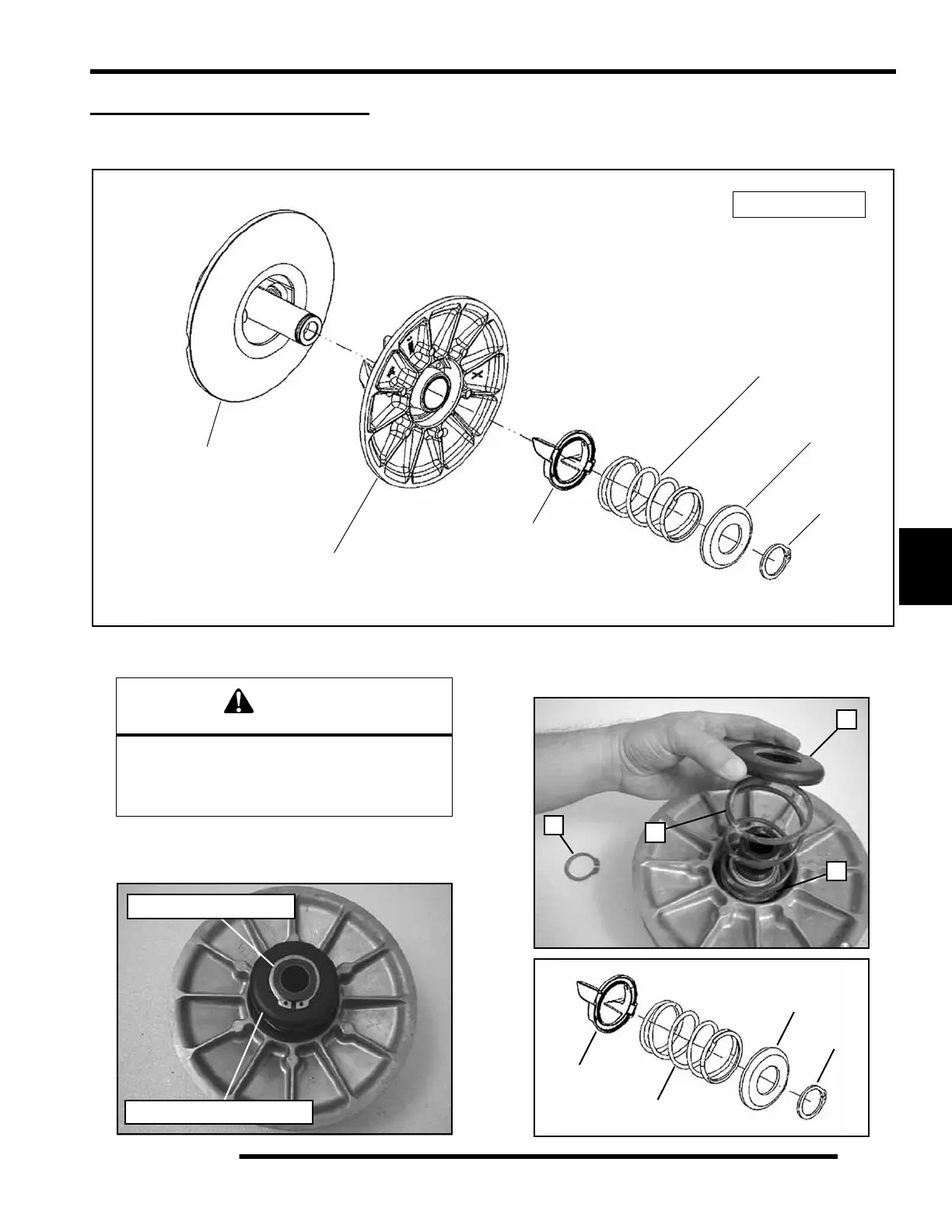

DRIVEN CLUTCH SERVICE
Exploded View
Clutch Disassembly / Inspection
1. Apply and hold downward pressure on the outer spring
retainer. Carefully remove the snap ring. Remember the
outer spring retainer contains strong spring pressure.
2. With the snap ring (A) removed and spring pressure
relieved, remove the outer retainer (B), spring (C), and
inner retainer (D).
Secondary Stationary Sheave
Moveable Inner Sheave
Inner Spring Retainer
DRIVEN CLUTCH
Compression Spring
Spring Retainer
Retaining Ring
CAUTION
Wear eye protection when removing snap ring to
prevent serious personal injury.
Use caution when removing, the snap ring
pressure is loaded by the compression spring.
Remove Snap Ring
Outer Spring Retainer
B
A
C
D
A
B
C
D
