Polaris RANGER XP 700 4X4 User Manual

7.15
FINAL DRIVE
7

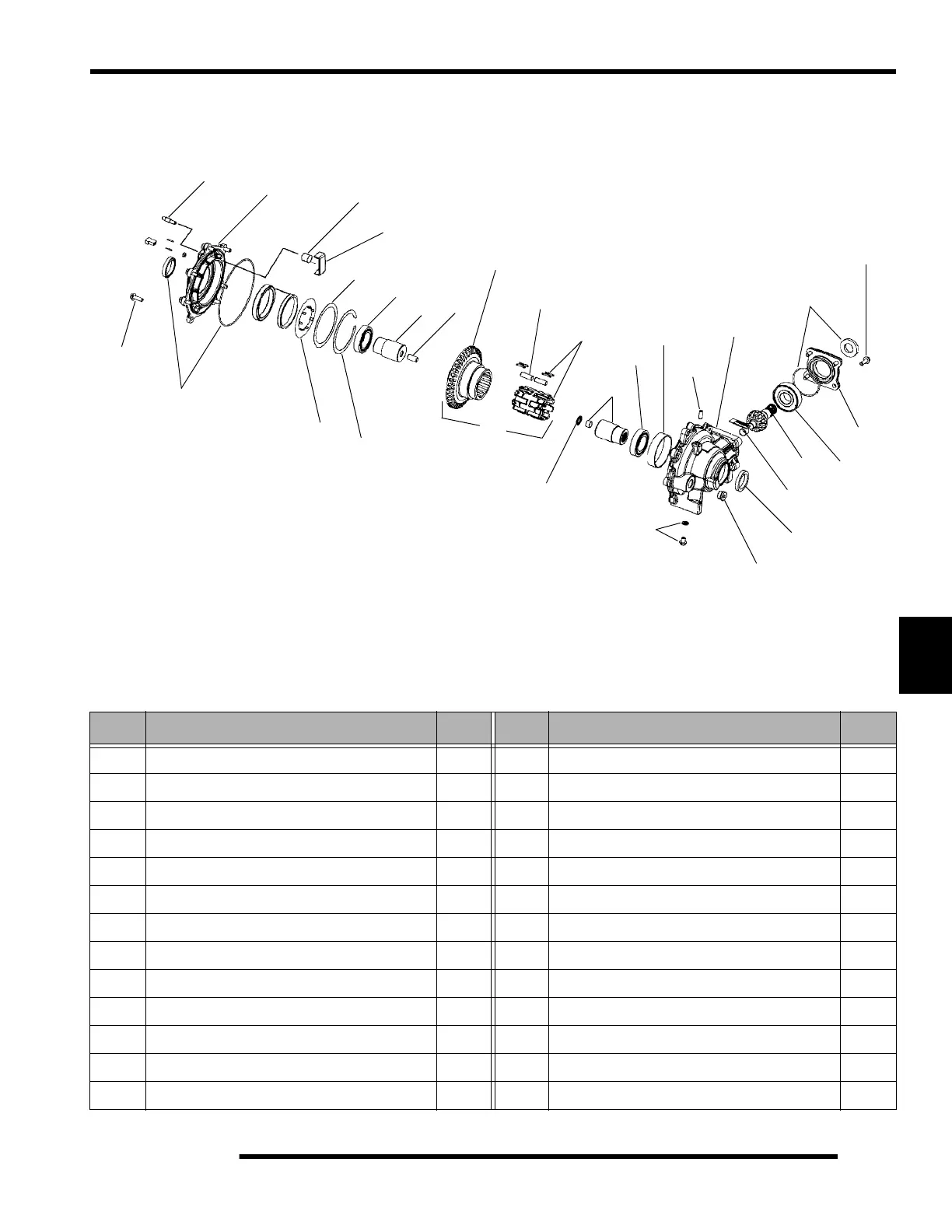

Centralized Hilliard Exploded View
REF# DESCRIPTION QTY REF# DESCRIPTION QTY
1 Set Screw 1 14 Seal Kit (Includes O-Rings and Seals) 1
2 Cover Plate Asm. 1 15 Screw 11
3 Thrust Button 1 16 Input Cover 1
4 Thrust Plate 1 17 Roller Ball Bearing 1
5 Armature Plate Shim 1 18 Pinion Shaft, 11T 1
6 Roller Ball Bearing 2 19 Bushing 1
7 Race / Output Hub Asm. 1 20 Gearcase LH 1
8 Dowel Pin 1 21 Oil Fill Plug 1
9 Clutch Housing / Ring Gear 1 22 Drain Plug Asm. (Includes Plug and Washer) 1
10 Roll Cage Asm (Includes H-Springs) 1 23 Roller Thrust Needle Bearing 1
11 Rollers 14 24 Clutch Asm. 1
12 Bushing 1 25 Internal Retaining Ring 1
13 Vent Fitting 1 26 Armature Plate 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
15
14
14
7
24
25
26
6
10 ft. lbs.
(14 Nm)
8-30 ft. lbs.
(11-41 Nm)
17 ft. lbs.
(23 Nm)
17 ft. lbs.
(23 Nm)
