ELECTRICAL
10

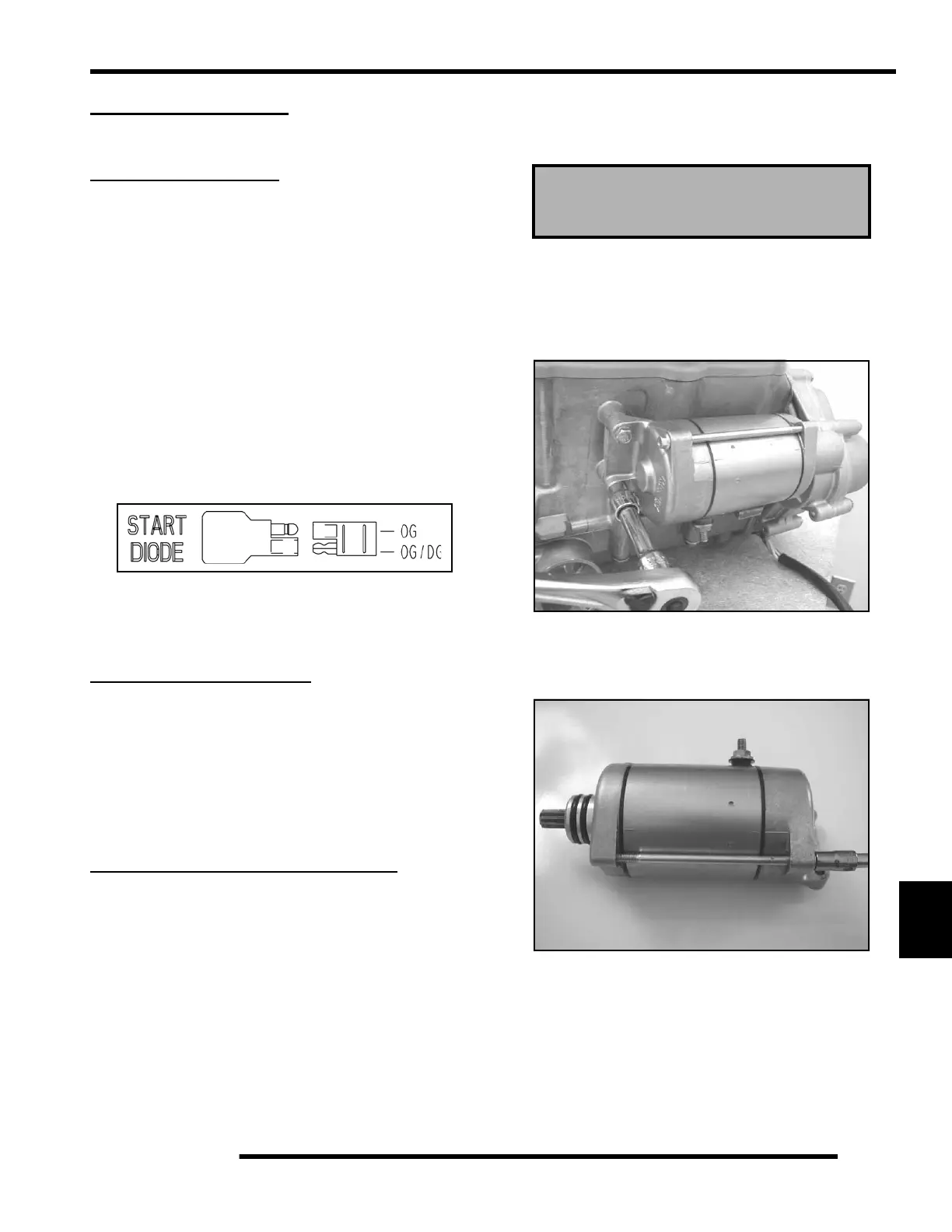

STARTER SYSTEM
Troubleshooting
Starter Motor Does Not Run
Battery discharged - Low specific gravity
Loose or faulty battery cables or corroded connections
(see Voltage Drop Tests)
Related wiring loose, disconnected, or corroded
Poor ground connections at battery cable, starter motor
or starter solenoid (see Voltage Drop Tests)
Faulty key switch
Faulty kill switch
Faulty Start Diode. Use a digital multi-meter to test
diode operation. Unplug the diode from the harness
and measure between the Orange and Orange/Green
diode connections. Continuity should flow one
direction only.
Faulty starter solenoid or starter motor
Engine problem - seized or binding (Can engine be
rotated easily?)
Starter Motor Turns Over Slowly
Battery discharged - low specific gravity
Excessive circuit resistance - poor connections (see
Voltage Drop Test)
Engine problem - seized or binding (Can engine be
rotated easily?)
Faulty or worn brushes in starter motor
Starter Motor Turns - Engine Does Not Rotate
Faulty starter drive
Faulty starter drive gears or starter motor gear
Faulty flywheel gear or loose flywheel
Voltage Drop Test
The Voltage Drop Test is used to test for bad connections. When
performing the test, you are testing the amount of voltage drop
through the connection. A poor or corroded connection will
appear as a high voltage reading. Voltage shown on the meter
when testing connections should not exceed .1 VDC per
connection or component.
To perform the test, place the meter on DC volts and place the
meter leads across the connection to be tested. Refer to the
voltage drop tests on the starter system in this chapter.
Starter Motor Removal / Disassembly
NOTE: Use electrical contact cleaner to clean starter
motor parts. Some solvents may leave a residue or
damage internal parts and insulation.
1. Remove the starter from the engine.
2. Remove the two bolts, washers, and sealing O-Rings.
Inspect O-Rings and replace if damaged.
NOTE: Note the alignment marks on both ends of
the starter motor casing. These marks must align
during reassembly.
Voltage should not exceed
.1 DC volts per connection
