Polaris RANGER XP 700 4X4

7.26
FINAL DRIVE
6. Install the castle nut (C), wheel, and wheel nuts. 7. Remove jackstand and torque mid hub nut to 110 ft. lbs.
(149 Nm) and wheel nuts to 35 ft. lbs. (47 Nm).
8. Install a new cotter pin. Tighten nut slightly to align holes
if required.
9. Install hub cap.

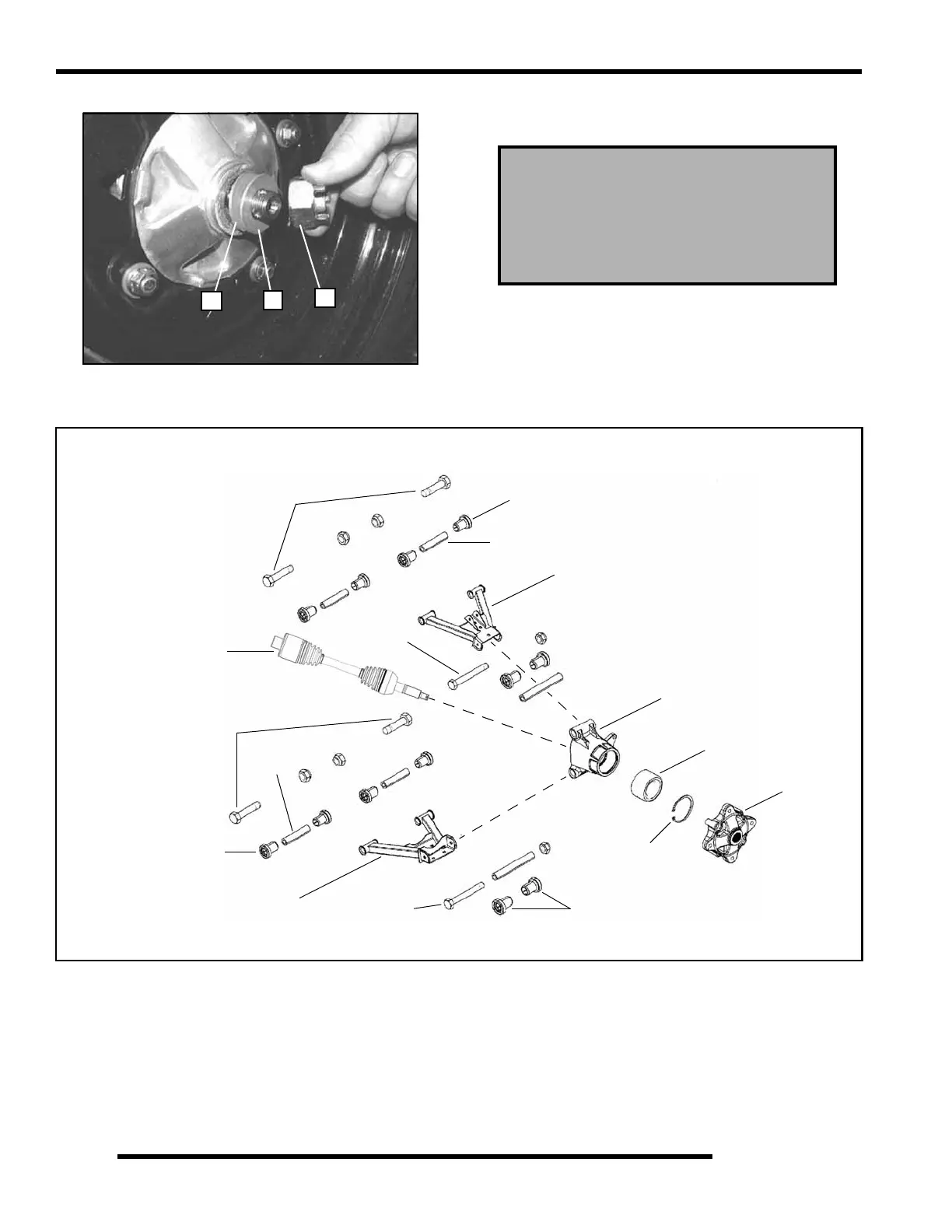

Mid Drive Exploded View
A
B
C
Mid Hub Nut Torque:
110 ft. lbs. (149 Nm)
Mid Wheel Nut Torque
35 ft. lbs. (47 Nm)
BUSHING
MID UPPER A-ARM
BEARING CARRIER
BEARING
SNAP RING
HUB
MID LOWER A-ARM
SHAFT
MID DRIVE AXLE
BUSHING
BUSHING
35 ft. lbs.
(47 Nm)
35 ft. lbs.
(47 Nm)
35 ft. lbs.
(47 Nm)
35 ft. lbs.
(47 Nm)
SHAFT
