5.11
BODY / STEERING / SUSPENSION
5
STEERING ASSEMBLY

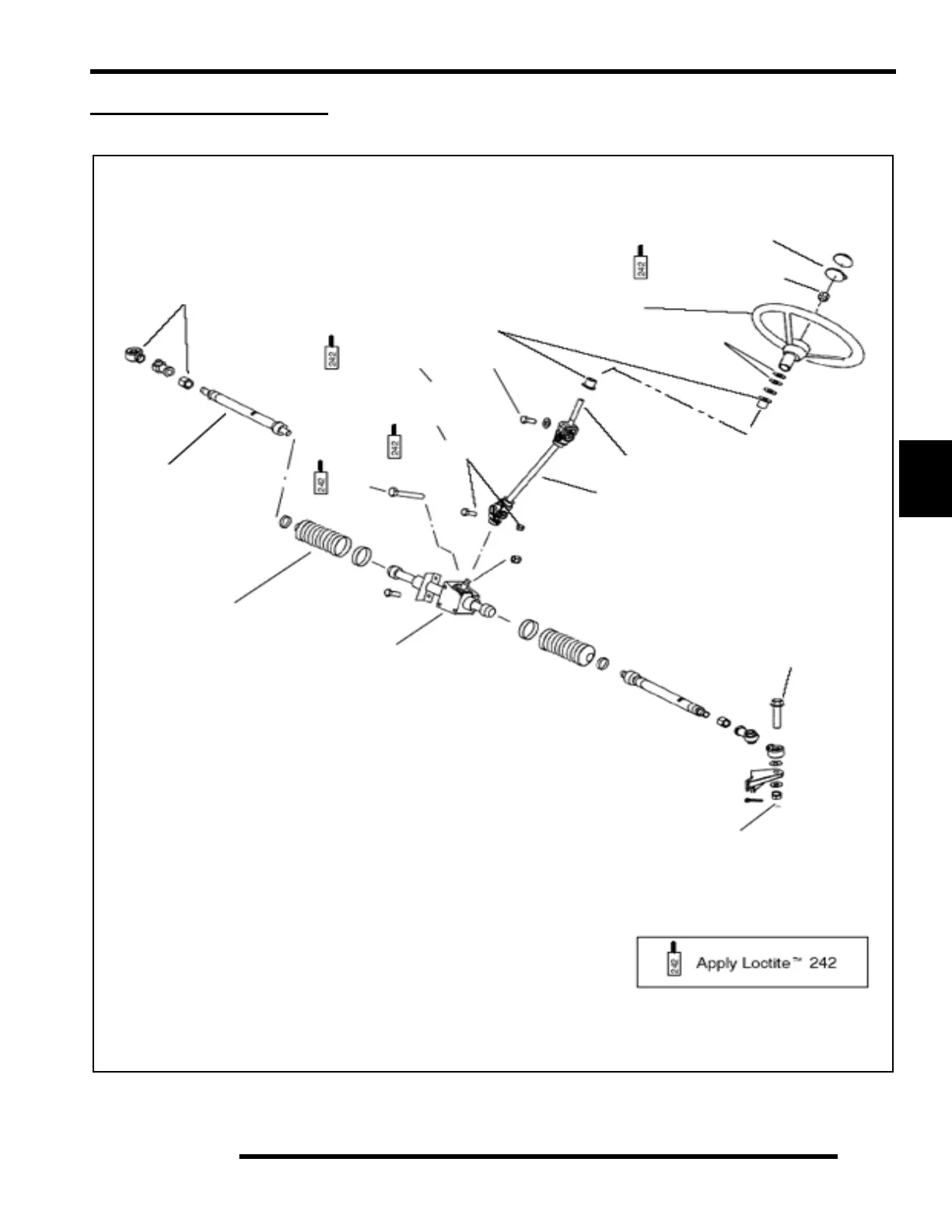

Exploded View
Rod End & Jam Nut
Tie Rod
Boots
Steering Box
Tie Rod
End Bolt
Lower Steering Shaft
Upper Steering Shaft
Cap
Nut
Steering Wheel
Wave Washers
Bushing
Screw & Lock Washer
25-30 ft. lbs.
(34-41 Nm)
30 ft. lbs.
(41 Nm)
15-22 ft. lbs.
(20-30 Nm)
Bolt
40-45 ft. lbs.
(54-61 Nm)
Screw & Nut
