Polaris RANGER XP 700 4X4 User Manual

7.60
FINAL DRIVE

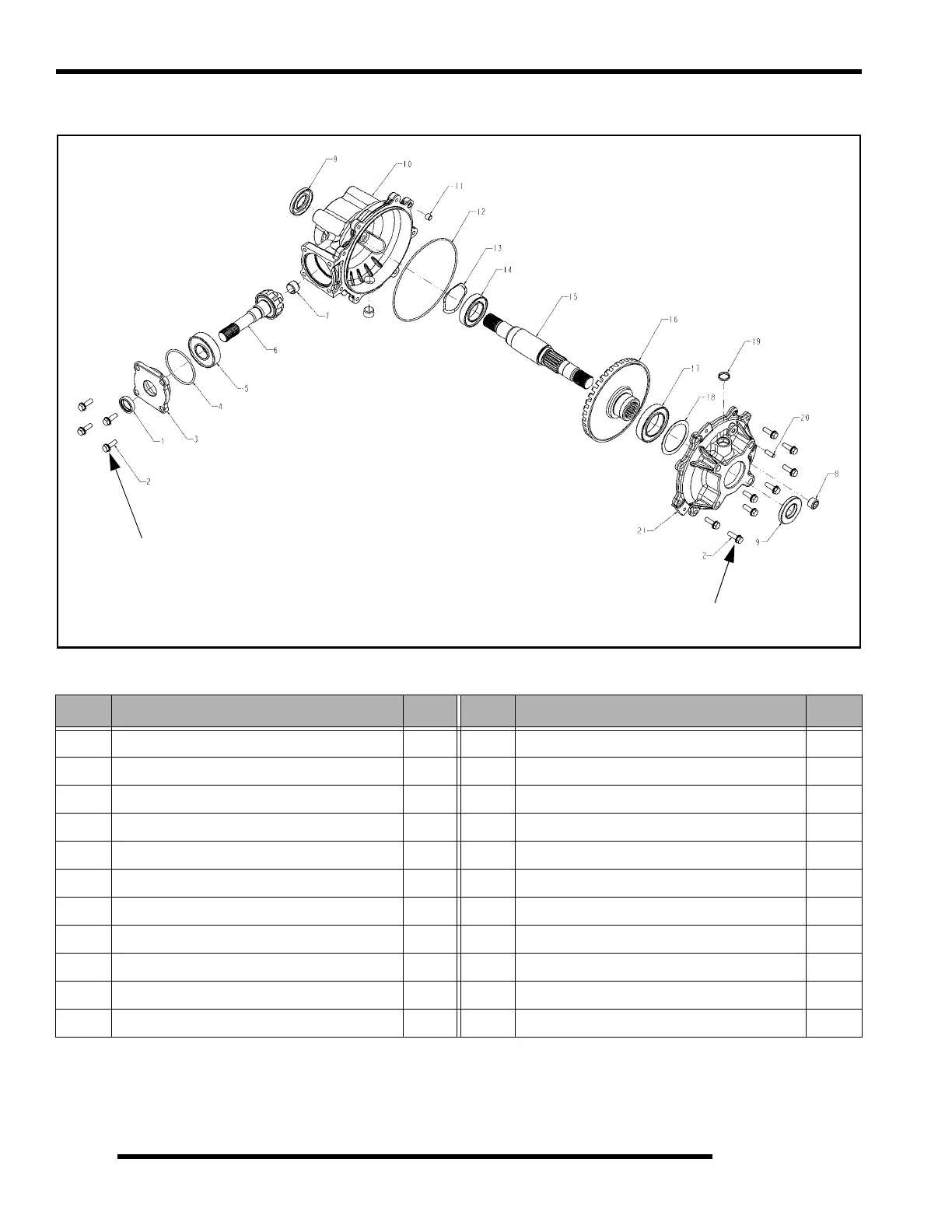

Gearcase Exploded View
REF# DESCRIPTION QTY REF# DESCRIPTION QTY
1 Seal, Triple Lip 1 12 O-Ring 1
2 Screw (5/16-18 x 1.0) 12 13 Spring, Wave 1
3 Cover, Input 1 14 Bearing, Ball 1
4 O-Ring 1 15 Shaft, Output 1
5 Bearing, Ball 1 16 Gear, Ring 37T 1
6 Pinion, 10T 1 17 Bearing, Ball 1
7 Bearing, Plain 1 18 Shim 1
8 Plug, Square Socket 2 19 Plug, Expansion 1
9 Seal, Dual Lip 2 20 Tube, Vent 1/4” Hose 1
10 Gearcase, Rear Housing 1 21 Cover, Output 1
11 Pipe, Knock 1
26 ft. lbs.
(35 Nm)
30 ft. lbs.
(41 Nm)
