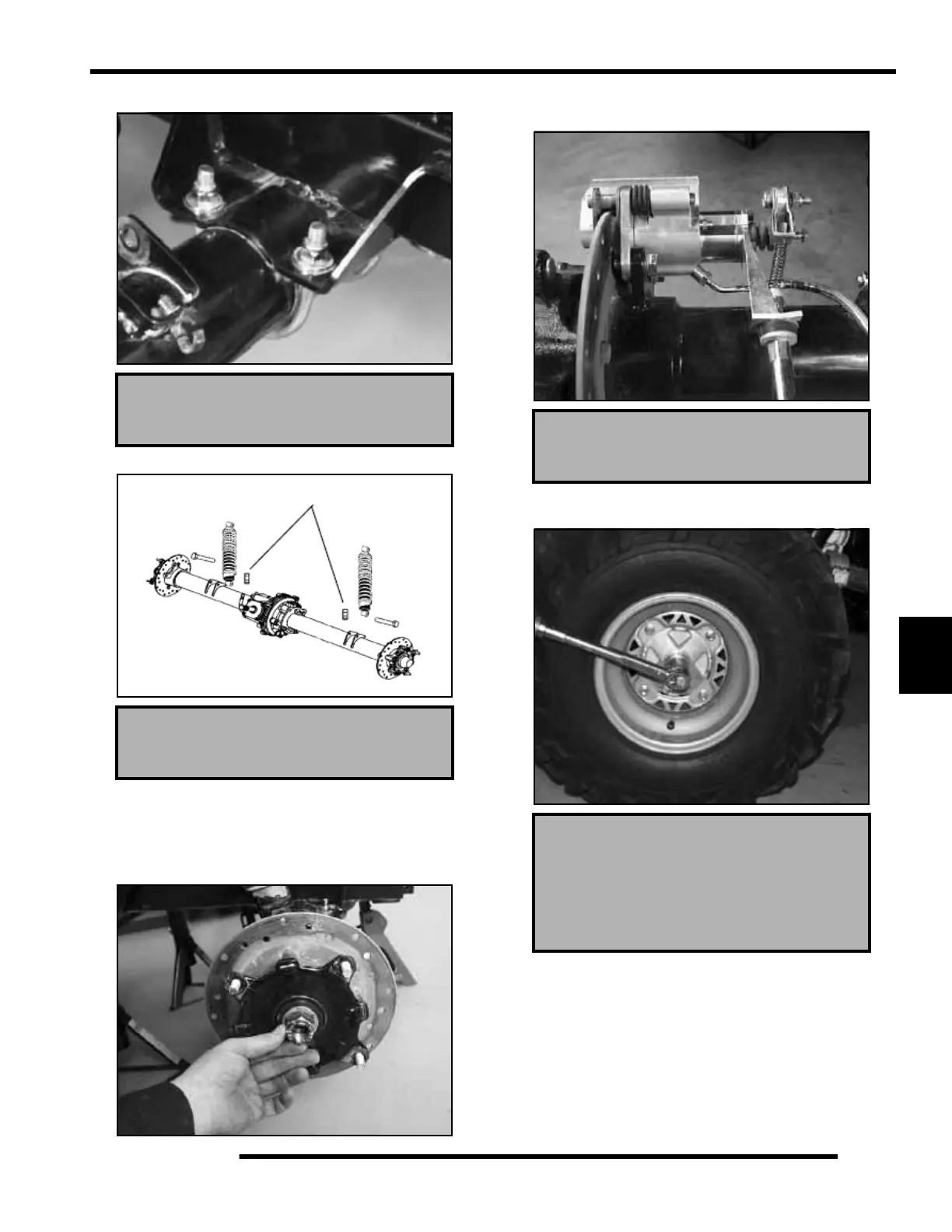

7.59
FINAL DRIVE
7
9. Torque the U-bolts nuts to 40 ft. lbs. (54 Nm).
10. Torque the rear shock bolts to 25 ft. lbs. (35 Nm).
11. Reinstall the vent hose and clamp to the rear gearcase
housing.
12. Apply anti-seize to the splines of the axle. Reinstall the hub
onto the axle. Reinstall the domed washer, and spindle nut
onto the axle.
13. Install the brake caliper. Torque the bolts to 18 ft. lbs. (24.8
Nm).
14. Install the tire and four wheel nuts. Torque the castle nut
and the wheel nuts to specifications.
15. Install a new cotter pin. Tighten nut slightly to align holes
if required. Install the hub cap.
U-Bolt Nut Torque:
40 ft. lbs. (54 Nm)
Rear Coil Over Shock Bolt Torque
25 ft. lbs. (35 Nm)
25 ft. lbs. (35 Nm)
Brake Caliper Torque:
18 ft. lbs. (24.8 Nm)
Rear Hub Nut Torque
110 ft. lbs. (149 Nm)
Rear Wheel Nut Torque
35 ft. lbs. (47 Nm)
