2.33
GENERAL INFORMATION
2

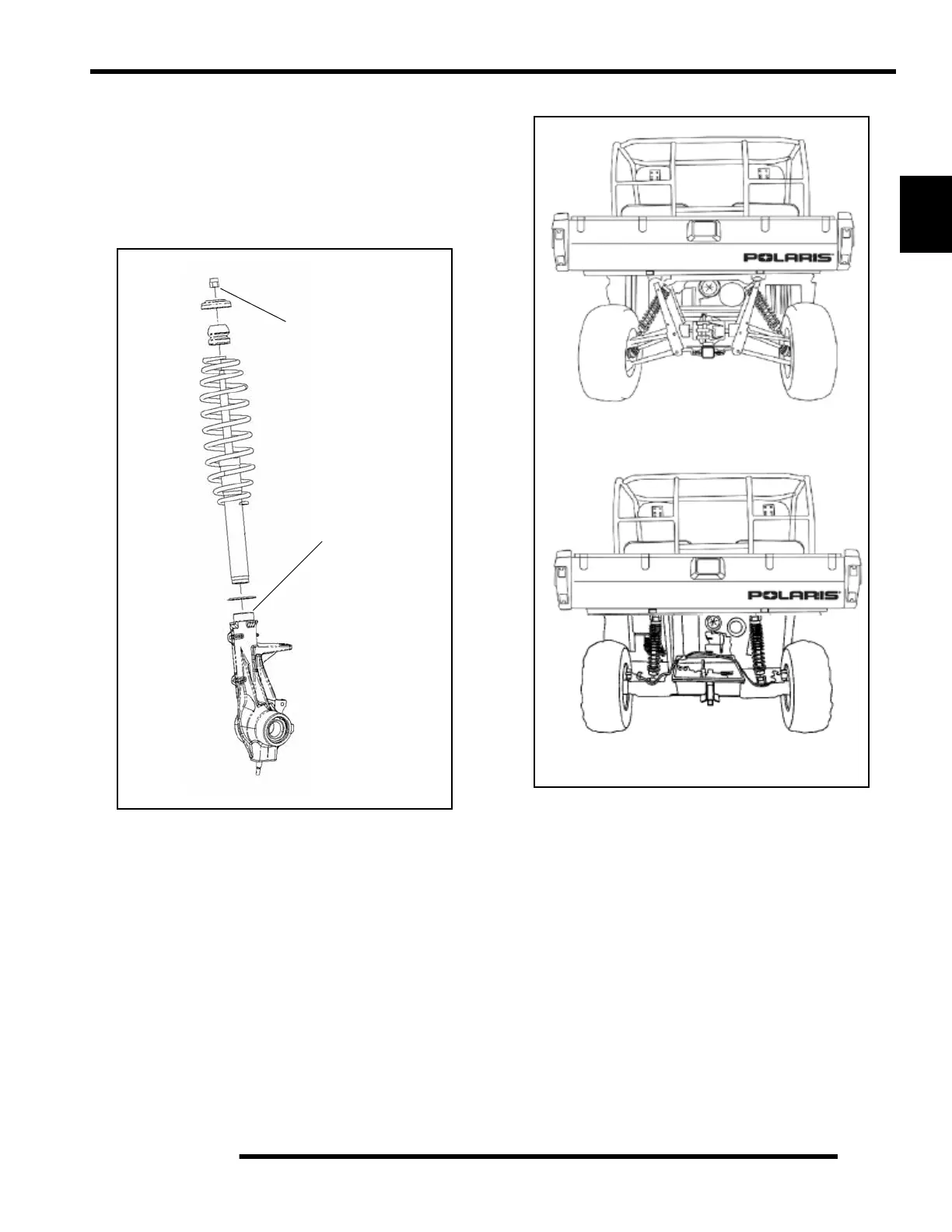

Front Suspension
• Compress and release front suspension. Damping
should be smooth throughout the range of travel.
• Check all front suspension components and fasteners
for wear or damage.
• Inspect front strut cartridges for leakage.
Rear Suspension
• Compress and release rear suspension. Damping should
be smooth throughout the range of travel.
• Check all rear suspension components for wear or
damage.
• Inspect shock for leakage.
Bolt Torque
Inspect for leaks
15 ft. lbs. (20 Nm)
RANGER 4X4
RANGER 6X6
Independent Rear Suspension
Rear Swingarm Suspension
