7.50
FINAL DRIVE

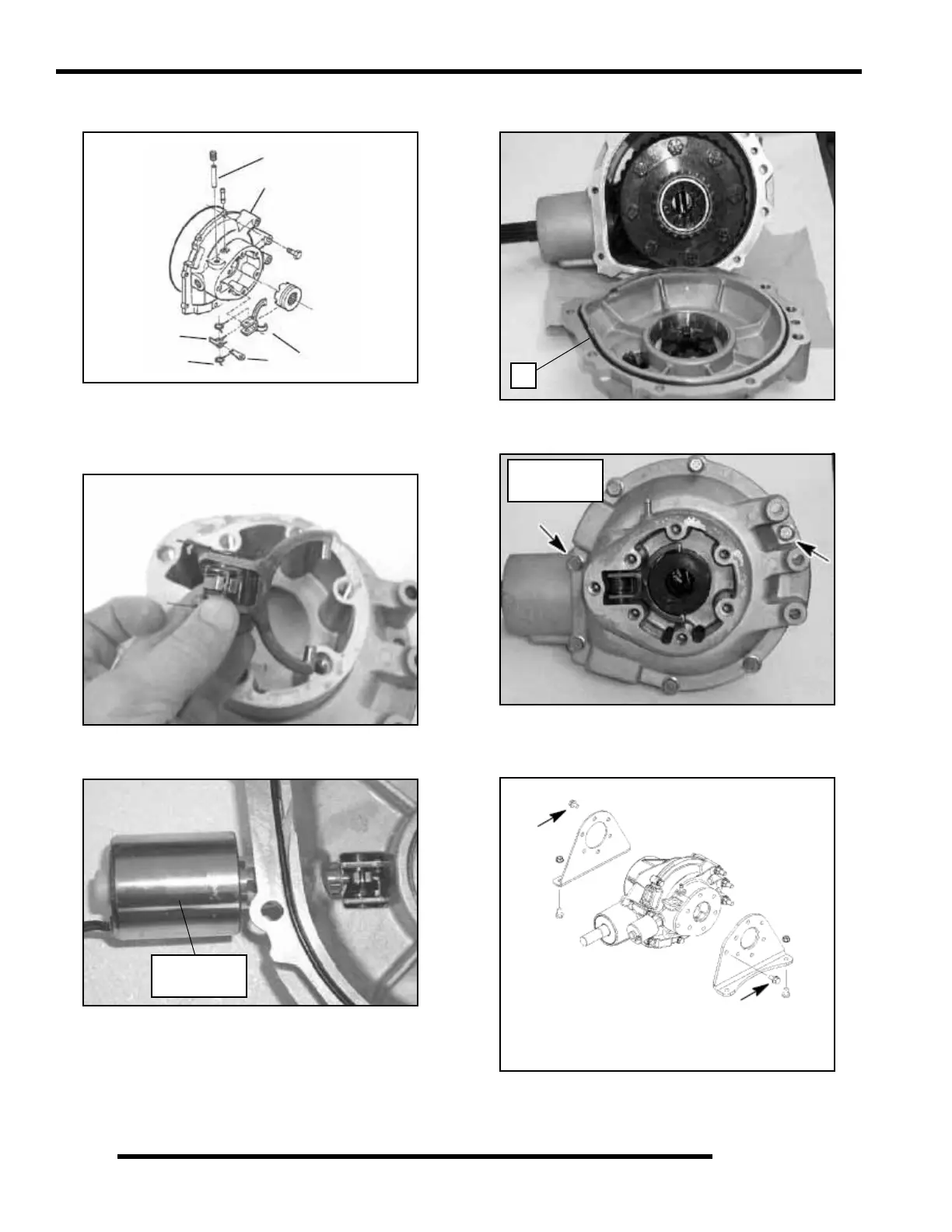

5. Assemble the shift yoke (D), shift lever (G), spring lever
(F), and return spring (E).
6. Use the bolt that was used to remove the shift yoke pivot
shaft (H) to reinsert the shaft into the carrier cover. Place
the shift yoke assembly into the carrier cover and secure
with the shift yoke pivot shaft (H).
7. Install the differential lock solenoid into the carrier cover.
Torque solenoid to 30-40 ft. lbs. (41-54 Nm).
8. Install the new lightly greased O-ring (K) onto the carrier
cover.
9. Install the carrier cover bolts. Tighten and torque the bolts
in a criss cross pattern to 25-35 ft.lbs. (34-48 Nm).
10. Install the rear differential mount brackets from the rear
differential onto the rear differential. Torque the bracket to
differential bolts to 26-33 ft.lbs. (35-45 Nm)
H
F
E
G
D
Carrier Cover
Install Shift Yoke Assembly
30-40 ft. lbs.
(41-54 Nm)
K
25-35 ft. lbs.
(34-48 Nm)
26-33 ft. lbs. (35-45 Nm)
Bracket to Differential
